Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS B Read these instructions – All the safety and operating instructions should be read before this product is operated. C Keep these instructions – The safety and operating instructions should be retained for future reference. D Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. - Page 3 S WARNING: The mains plug/appliance coupler is used as disconnect device, the disconnect device shall remain readily operable. symbol within an equilateral triangle is intended to alert the user to presence non-insulated “dangerous voltage” within risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.
- Page 4 Compatible iPod/iPhone Models Made for Legal Notice “Made for iPhone” and “Made for iPad” mean that an electronic accessory has been by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone or iPad may affect wireless performance.
- Page 5 Introduction Back Panel Front Panel Remote Control Home Theater Bypass Input Mode Useful Tips Troubleshooting Warranty and Repair...
- Page 6 AND to control the volume level. And last, but not least, there is a loop feature that allows an external processor to be integrated with the nova and switched in and out of the signal path by simply...
- Page 7 If you have additional questions or feedback please contact your reseller or Peachtree Audio directly. We sincerely hope that you love your nova and that it brings you many years of enjoyment. It represents the very best of everything we do. Thank you again for...
-
Page 8: Back Panel
IR window on the front panel is not in “line-of-sight” of the remote control. This is common when the nova is located in an enclosed cabinet or a different room. Please contact us if you need more technical details regarding the IR protocol. - Page 9 This makes it easier to compare the original audio signal to loop is active, the audio signal from the nova is output on the LOOP OUTPUT connectors and the audio signal output from the connected device is looped back into the LOOP INPUT connectors on the nova.
- Page 10 AUX-2 and an external phono Q GROUND: Accepts the ground connection from a connected a phonograph/turntable. R RIGHT & LEFT SPEAKER Outputs: BANANA PLUG 5-WAY SPADE BINDING POST LOOPED CONNECTOR WIRE STRAIGHT WIRE...
-

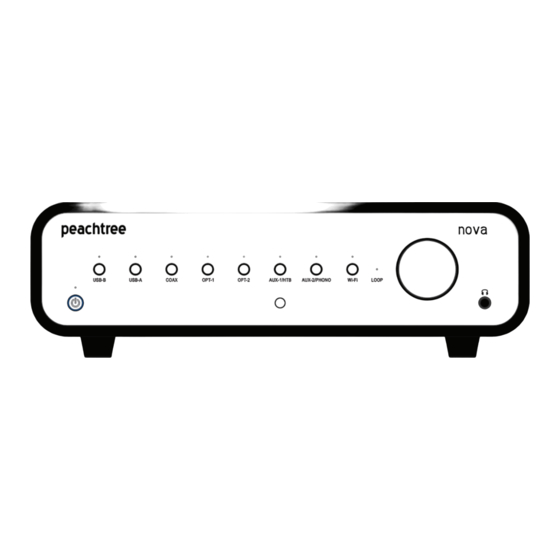

Page 11: Front Panel
Home Theater Bypass mode! H IR Receiver: control or third-party remote control systems. Note: The nova also includes an IR input on the rear panel for receiving wired IR commands from third-party remote control systems. I AUX-2/PHONO Button: This button selects the AUX-2... - Page 12 AUX-2 PHONO J Wi-Fi Button: This button selects the Wi-Fi input (if the optional Peachtree Wi-Fi Module the volume control in the nova is completely bypassed when using the volume control bypass mode! If the Wi-Fi module is not installed, this button has no function.
-
Page 13: Remote Control
Whenever the nova is making output level changes automatically, the the nova reaches the correct output level. This occurs when mute is disengaged, volume control bypass is selected and or home theater bypass is selected. This is to minimize the chance of sudden, unexpected output level changes. - Page 14 M OPT-1 & OPT-2 Button: These buttons select the OPT-1 and OPT-2 inputs and light nova is completely bypassed in the volume control bypass mode! N Wi-Fi Button: This button selects the Wi-Fi input (if the optional Peachtree Wi-Fi Module mode is engaged - please see the volume control bypass instructions elsewhere for more...
- Page 15 When AUX-1 is set to HTB input mode, the speakers connected to it. This allows the nova to be enjoyed as an “audio-only” system with the sources connected to it and to also be utilized when playing video sources connected to be used to control the overall system volume level.
- Page 16 The loop is active Please note that when the loop is active, the audio signal from the nova is output on the LOOP OUTPUT connectors and the audio signal output from the connected device is looped back into the LOOP INPUT connectors on the nova.
-
Page 17: Useful Tips
USEFUL TIPS At Peachtree Audio we believe all products should be easy to use, but sometimes getting the are the usually the same. USB Connections Windows PC up window notifying you. D Right click the speaker icon on your screen. -
Page 18: Troubleshooting
The nova will not power on outlet is functioning correctly by plugging in a Check that the nova is not muted (blinking input The nova powers on, but there is no sound Be sure your input source is powered on and playing at a reasonable volume level. -
Page 19: Warranty And Repair
WARRANTY AND REPAIR International Warranty date of purchase from an authorized Peachtree Audio re-seller. If you register your product online at www.peachtreeaudio.com/support/product-registration.html/, the warranty is Peachtree Audio reserves the right to refuse any warranty claims if coverage cannot be Peachtree Audio assumes no responsibility for product failures caused by accident, neglect, Warranty does not cover shipping costs. -
Page 20: Specifications
SPECIFICATIONS nova150 nova300 nova500 Compatible Speakers 1000 P OU PU OU PU USB-B Input COAX and OPT Inputs AUX Inputs P O O Input... - Page 21 Loop Output and Input C Power si al...
