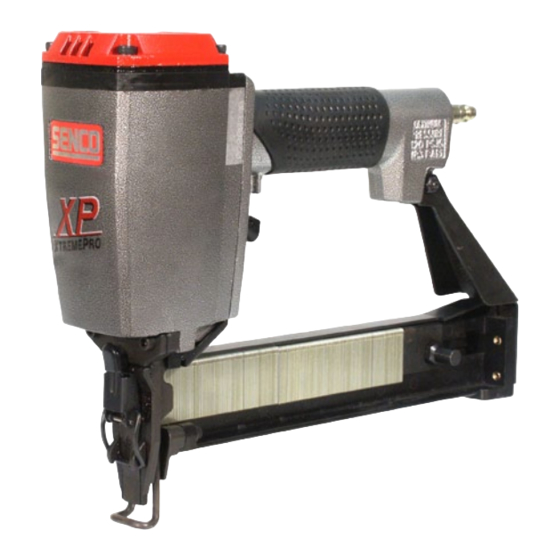

Medium/Heavy Wire 1½" Stapler
The new SENCO® SKSXP is available for use in a wide variety
of wood-working applications. It is o ered in a series of
models that drive 2 di erent gauges and 3 di erent crown
widths in lengths from 7/8" – 1-1/2". It is dependable,
virtually maintenance free stapler you can depend on for the
professional craftsmanship job you demand.
Applications
Major: drawer assembly, countertop buildup, cabinets, corner
and glue block fastening, and spring clip attachment in
furniture assembly. Widely used in assembly of doors and
window casings, trim, and moldings. On-site construction uses
for aluminum and vinyl siding, underlayment, and attachment
of roo ng sheathing and decking materials.
Other: light crating, agricultural boxes, fencing, and all types
of wood crafts
Features and Benefits
• E-Z Load/E-Z Clear system
• Drives 1-1/2" staples into hard woods
• NeverLube™ design requires no lubrication
• Only 2 moving O-rings
• Quiet operation
• Long 1" lip to get into tight spots
Safety First. The only way to work.
Safety First. The only way to work.
SKSXP
LIMITED
WARRANTY
| 800-543-4596 | www.senco.com
Specifications
Item#
SKSXP L11-17 . . . . . . . . . . 300120N
SKSXP M12-17 . . . . . . . . . 300152N
SKSXP N12-17. . . . . . . . . . 300184N
Reg. Operating Pressure 70-120 psi (4.8 - 8.3 bar)
Air Consumption (60 cycles per min.) 2.16 scfm
Air Inlet . . . . . . . . . . . . . . . . 1/4" NPT
Tool Weight . . . . . . . . . . . 4.2 lbs (1.9 kg)
Height . . . . . . . . . . . . . . . . . 9.25" (238 mm)
Length . . . . . . . . . . . . . . . . 12.38" (312 mm)
Width . . . . . . . . . . . . . . . . . 3" (76 mm)
Fastener Capacity . . . . . . 145+
Fastener Specifications
Staple Gauge . . . . . . . . . . . . . . . . . . 18 or 16
Crowns . . . . . . . . . . . . . . . . . . . . . . . . ¼", 3⁄8", 7⁄16")
Fastener Range . . . . . . . . . . . . . . . . ¾" (19 mm) – 1½" (38 mm)
Finish. . . . . . . . . . . . . . . . . . . . . . . . . . Galvanized & Stainless
Collation. . . . . . . . . . . . . . . . . . . . . . . Glued and/or taped strip
1 1 1 / 1 1 /
4 2
3 / 7 / 1 1 /
4 8 8
SKSXP L
1 / "
4
1
7 1 1
/ 1 / 1 /
3
/
8 4 2
4
SKSXP M
3
/ "
8
1 1 1 /
1 1 /
4 2
3 /
7 / 1 1 / 1 3 /
4
8 8 8
SKSXP N
7
/ "
16
