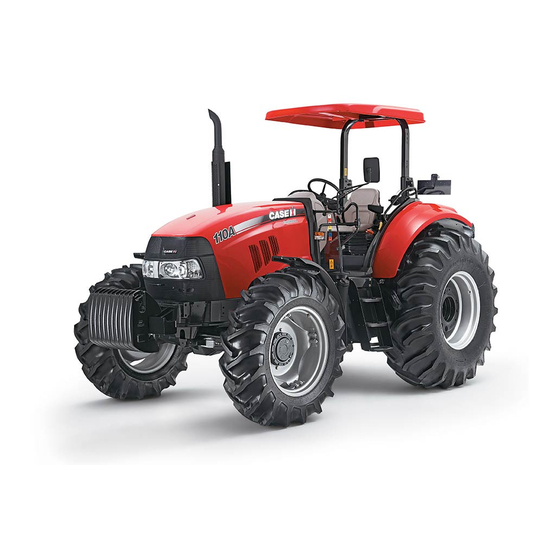

- Page 1 FARMALL 110A FARMALL 120A FARMALL 130A Tractor OPERATOR’S MANUAL Part number 47952265 edition English March 2016 Replaces part number 84589015...
-
Page 2: Table Of Contents
Contents 1 GENERAL INFORMATION NOTE TO THE OWNER..............1-1 Engine identification . - Page 3 Clutch pedal ................3-11 Foot throttle pedal .
- Page 4 MOVING THE UNIT Machine direction - General safety recommendations for driving the machine ..4-5 5 TRANSPORT OPERATIONS PREPARING FOR ROAD TRANSPORT Machine loading ............... . 5-1 RECOVERY TRANSPORT Towing the machine .
- Page 5 Remote control valves – Motor kit (when present) ....... . 6-27 Hydraulic oil free-flow return.
- Page 6 7 MAINTENANCE GENERAL INFORMATION Introduction ................7-1 Fuel handling precautions .
- Page 7 EVERY 600 HOURS Engine air filter - Outer element ............7-37 Cab air filter - Replace .
- Page 8 9 SPECIFICATIONS Machine overall dimensions ..............9-1 Weight from the machine .
-
Page 9: General Information
If you require advice concerning your machine at any time, do not hesitate to contact your CASE IH dealer. Normal Operation He has factory trained personnel, genuine manufacturers’... - Page 10 1 - GENERAL INFORMATION • Repair means activities that must be performed by pro- using non-genuine products could have negative effects fessional service personnel familiar with the machine’s on the design characteristics of your machine, thereby characteristics and in compliance with the repair infor- affecting its safety.
-
Page 11: Engine Identification
Your machine and its main components are identified by codes. These codes facilitate identification of your ma- chine. You must give them to your CASE IH dealer when requesting replacement parts or servicing. The following information indicates where the identification codes are stamped. - Page 12 1 - GENERAL INFORMATION A plate in the rear of the cab/platform provides information about the Rollover Protective Structure (ROPS) and the maximum permissible weight of the machine. Figure 3: Location for models without cab. CUIL14TR00372AA Figure 4: Location for models with cab. CUIL14TR00385AA...
-
Page 13: Ecology And The Environment
CASE IH strongly recom- Familiarize yourself with the relative legislation applica- mends that you return all used batteries to a CASE IH ble to your country, and make sure that you understand dealer, who will dispose of the used batteries or recycle this legislation. -
Page 14: Run In Period Of A New Machine
Power Take-Off (PTO). If you filters and clean the supply pump filter. select the wrong rotation, it will result in excess fuel consumption. Always use genuine fuel filters. See your CASE IH dealer. -
Page 15: International Symbols
1 - GENERAL INFORMATION International symbols As a guide to the operation of the machine, various universal symbols have been utilized on the instruments, controls, switches, and fuse box. The symbols are shown below with an indication of their meaning. Power Take-Off Heater plug for Turning signal... -
Page 16: Noise Levels
1 - GENERAL INFORMATION Noise levels CAUTION Avoid possible hearing loss! The machine operator must wear hearing protection. Failure to comply could result in minor or moderate injury. C0070A WARNING Personal Protective Equipment (PPE) required. When assembling, operating, or servicing the machine, wear protective clothing and PPE necessary for the particular procedure. -
Page 17: Safety Information
2 - SAFETY INFORMATION 2 - SAFETY INFORMATION###_2_### Safety rules Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual you will find the signal words DANGER, WARNING, and CAUTION followed by special in- structions. -
Page 18: Roll - Over Protective Structure (Rops)
NBR10001 and OECD Code IV approved (ex- cept at low temperatures). Periodically inspect the ROPS and keep it in perfect condi- tion. If you notice any problems with the structure, consult your nearest CASE IH dealer. Figure 2: Models with a cab. CUIL14TR00555AA Safety rules... -
Page 19: Safety Decals - Cab Models
2 - SAFETY INFORMATION Safety decals - Cab models The decals reproduced on the following pages were installed on your machine in the positions indicated in the draw- ings below. These safety decals are important both for your safety and that of personnel working with you. Take the manual with you and walk around the machine, observing the location of the decals and their meaning. - Page 20 2 - SAFETY INFORMATION Hot liquid under pressure! Never remove the filler cap or the recovery tank cap while the engine is running or the coolant is hot. Let the system cool. Turn the filler cap to the first notch and allow any pressure to escape, and then remove the filler cap.
- Page 21 2 - SAFETY INFORMATION Entanglement hazard! The Power Take-Off (PTO) guard must be installed when operating PTO-driven equipment. Failure to comply could result in death or serious injury. Quantity : 2 83946774 83946774 The decal is located on the upper guard of the Power Take-Off (PTO) shaft.
- Page 22 2 - SAFETY INFORMATION Do not step Quantity :1 84269908 84269908A The decal is located on the front of the cab, on the left-hand side. CUIL14TR00386AA Loss of control hazard! Make sure you use a towing vehicle with adequate weight. Towing with an underweight vehicle could cause a loss of control during transport or braking.
- Page 23 2 - SAFETY INFORMATION Roll-over hazard! Securely fasten the seat belt. Your machine is equipped with a ROPS (Roll-Over Protective Structure) cab, ROPS canopy or ROPS frame for your protection. The seat belt can help ensure your safety if it is properly used and maintained.
- Page 24 2 - SAFETY INFORMATION Attention! Read Operator's Manual. Quantity :1 84270888 84270888A The decal is located on the pillar on the left-hand side of the cab. CUIL14TR00574AA Fall hazard! Never use the control levers as handholds when entering or exiting the cab. Maintain a three-point contact with steps, ladders, and/or handholds.
- Page 25 2 - SAFETY INFORMATION Caution Starting the engine (with booster battery) 1. Use eye protection .2. Connect the ends of the cable to the positive battery terminals. 3. Connect one end of the other cable to the negative booster battery terminal and the other to the engine block.
- Page 26 2 - SAFETY INFORMATION Safety decals – Models without cab The decals reproduced on the following pages were installed on your machine in the positions indicated in the draw- ings below. These safety decals are important both for your safety and that of personnel working with you. Take the manual with you and walk around the machine, observing the location of the decals and their meaning.
- Page 27 2 - SAFETY INFORMATION Hot liquid under pressure! Never remove the filler cap or the recovery tank cap while the engine is running or the coolant is hot. Let the system cool. Turn the filler cap to the first notch and allow any pressure to escape, and then remove the filler cap.
- Page 28 2 - SAFETY INFORMATION Risk of explosion! Read "Connecting booster battery" procedure completely before attempting to jump-start or service a battery. Failure to comply will result in serious injury or death. Quantity :1 84270895 84270895A The decal is located on the starter motor. CUIL14TR00462AA Loss of control hazard! Make sure you use a towing vehicle with adequate...
- Page 29 2 - SAFETY INFORMATION Roll-over hazard! Securely fasten the seat belt. Your machine is equipped with a ROPS (Roll-Over Protective Structure) cab, ROPS canopy or ROPS frame for your protection. The seat belt can help ensure your safety if it is properly used and maintained.
- Page 30 2 - SAFETY INFORMATION Attention! Read Operator's Manual. Quantity :1 84270888 84270888A CUIL14TR00784AA Caution Starting the engine (with booster battery) 1. Use eye protection .2. Connect the ends of the cable to the positive battery terminals. 3. Connect one end of the other cable to the negative booster battery terminal and the other to the engine block.
- Page 31 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
