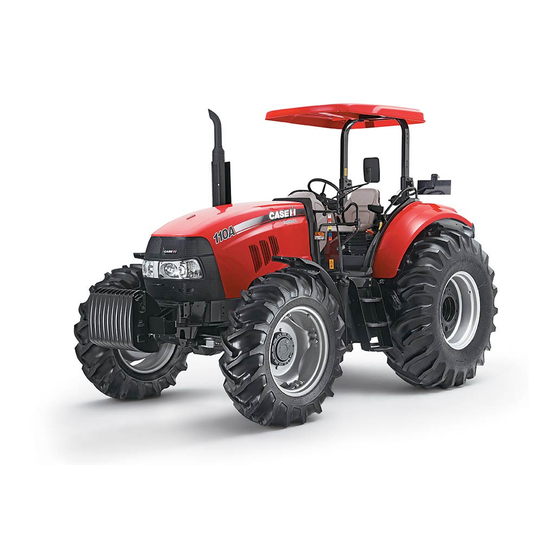

- Page 1 ORIGINAL INSTRUCTIONS FARMALL 110A ® FARMALL 120A ® FARMALL 130A ® FARMALL 140A ® Tier 4B (final) Tractor OPERATOR’S MANUAL Part number 51490496 edition English August 2018 Replaces part number 48047746...
-
Page 2: Table Of Contents
Contents 1 GENERAL INFORMATION Note to the owner................1-1 Intended use. - Page 3 Right-hand side controls Transmission controls ..............3-22 Hi / Lo Transmission.
- Page 4 Hydraulic trailer brakes ..............4-11 Moving the unit General transmission operation .
- Page 5 Implements Adjusting the drawbar ............. 6-50 Hitch operation .
- Page 6 Every 300 hours Four-Wheel Drive (4WD) front axle differential oil - Level make up ....7-42 Four-Wheel Drive (4WD) front axle hub oil - Level make up ......7-42 Transmission and hydraulic oil filter - Replace .
- Page 7 Other fuses and relays ..............7-87 Storage Preparing for storage .
- Page 8 Find manuals at https://best-manuals.com...
-
Page 9: General Information
Your CASE IH dealer will instruct you in the general operation of your new equipment; see “Delivery report - Owner copy” (11-1). Your dealer's staff of factory-trained service technicians will be glad to answer any questions that may arise regarding the operation of your machine. -
Page 10: Intended Use
Prior to delivery, all machines are carefully inspected by your local authorized CASE IH dealer, ensuring that the ma- chine reaches the user in perfect condition. To maintain the tractor in this condition and ensure trouble-free operation, see “Maintenance chart”... -
Page 11: Electro-Magnetic Compatibility (Emc)
• The electro‐magnetic field generated by the add‐on system should not exceed 24 V/m at any time and at any lo- cation in the proximity of electronic components • The add‐on equipment must not interfere with the functioning of the on board electronics Failure to comply with these rules will render the CASE IH warranty null and void. -
Page 12: Product Identification
The machine is identified with a Vehicle Identification Number (VIN) plate as well as a serial number. You should supply the machine VIN plate data to your CASE IH dealer when requesting parts or service. The VIN is also used to identify the machine in case of theft. - Page 13 1 - GENERAL INFORMATION Four-Wheel Drive (4WD) front axle serial number plate The standard duty front axle serial number plate is located on the rear right-hand side of the front axle housing. RCPH09TTS058AAD RCPH10TTS013AAD The heavy duty front axle serial number plate is located on the front left-hand side of the front axle housing.
- Page 14 1 - GENERAL INFORMATION Roll-Over Protective Structure (ROPS) serial number The Roll-Over Protective Structure (ROPS) serial number plate is located on the left-hand rear platform support. NHIL15TR00189AA Cab serial number The cab serial number plate is located on the left-hand rear cab support.
- Page 15 1 - GENERAL INFORMATION Engine serial number plate The engine serial number plate is located on the top of the engine valve cover, below the Diesel Oxidation Catalyst (DOC) canister (1). NHIL14TR00961AA NHIL14TR00962AA...
-
Page 16: Product Identification Number (Pin)
The machine is identified with a Product Identification Number (PIN) plate which contains 17 digits, as well as a serial number. You should supply the machine PIN plate data to your CASE IH dealer when requesting parts or service. The PIN is also used to identify the machine in case of theft. -
Page 17: Operator's Manual Storage On The Machine
1 - GENERAL INFORMATION Operator's manual storage on the machine Operator’s manual storage is only provided on machines that are equipped with the deluxe operator’s seat. Store the operator’s manual in the manual holder (1) on the back of the operator’s seat. If the machine is not equipped with a deluxe operator’s seat, store the operator’s manual in a safe place that will be easily accessible for each operator. -
Page 18: Machine Orientation
1 - GENERAL INFORMATION Machine orientation Cab models Front of the machine NHIL14TR00801AA Rear of the machine NHIL14TR00800AA Right-hand side of the machine NHIL14TR00802AA Left-hand side of the machine NHIL14TR00803AA 1-10... - Page 19 1 - GENERAL INFORMATION Platform models Front of the machine NHIL14TR00793AA Rear of the machine NHIL14TR00918AA Right-hand side of the machine NHIL14TR00794AA Left-hand side of the machine NHIL14TR00795AA 1-11...
-
Page 20: Machine Components
1 - GENERAL INFORMATION Machine components NHIL14TR00768GA Component identification – Machine without a cab (1) Folding Roll Over Protection (7) Rear tractor lights (13) Power Take-Off (PTO) with guard System (ROPS) (2) User platform (8) Tool box (14) Top link (3) Tractor headlights (9) Diesel fuel tank (15) Hydraulic fill tube... - Page 21 1 - GENERAL INFORMATION NHIL14TR00762GA Component identification – Machine with a cab (1) Headlights (10) Toolbox (19) PTO with guard (2) Extended turn lights (optional) (11) Steps (both sides of tractor) (20) Lift arm with third point linkage (3) Mirrors (12) Battery (21) Hydraulic fill tube (4) Front windshield wiper...
- Page 22 What is Selective Catalytic Reduction (SCR)? Your CASE IH machine is equipped with additional components to comply with national and local exhaust emissions requirements. The main components of the SCR system include the SCR catalyst, the Diesel Oxidation Catalyst...
- Page 23 ®, prolonged transportation or storage above 25 °C (77 °F) should be avoided. ² Significant loss of shelf life: check every batch before use. See your CASE IH dealer for more information on testing. NOTE: The main factors taken into account to define the shelf life in the table above are the ambient storage tem- perature and the initial alkalinity of DEF/A ®.
- Page 24 The manufacturer is liable for damages to other engine components caused by the failure of any warranted emission control system part. CASE IH is not responsible for failures resulting from improper repair or the use of parts that are not genuine CASE IH or CASE IH approved parts.
- Page 25 1 - GENERAL INFORMATION Component coverage New engines certified for sale and registered will have the following items covered by the emission warranty, depend- ing on the emission level of the engine, if the items were first installed on the new engine as original equipment: Fuel injection system Exhaust after treatment Devices (if applicable) •...
- Page 26 • Claims involving the inspection or reconditioning of units after storage or prior use. • Repairs arising from service performed by agents not approved by CASE IH. • Repairs arising from any unauthorized modification to the product or the use of non- CASE IH parts, implements or attachments.
- Page 27 1 - GENERAL INFORMATION California Emission Control Warranty Statement The California Air Resources Board and FPT Industrial S.p.A. are pleased to explain the emission control system warranty on your 2014 engine. In California, new heavy-duty off-road engines must be designed, built and equipped to meet the State's stringent anti-smog standards.
- Page 28 1 - GENERAL INFORMATION 1-20...
- Page 29 2 - SAFETY INFORMATION 2 - SAFETY INFORMATION###_2_### Safety rules and signal word definitions Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual and on machine safety signs, you will find the signal words DANGER, WARNING, and CAU- TION followed by special instructions.
- Page 30 2 - SAFETY INFORMATION Safety rules General safety rules Use caution when operating the machine on slopes. Raised equipment, full tanks and other loads will change the center of gravity of the machine. The machine can tip or roll over when near ditches and embankments or uneven surfaces.
