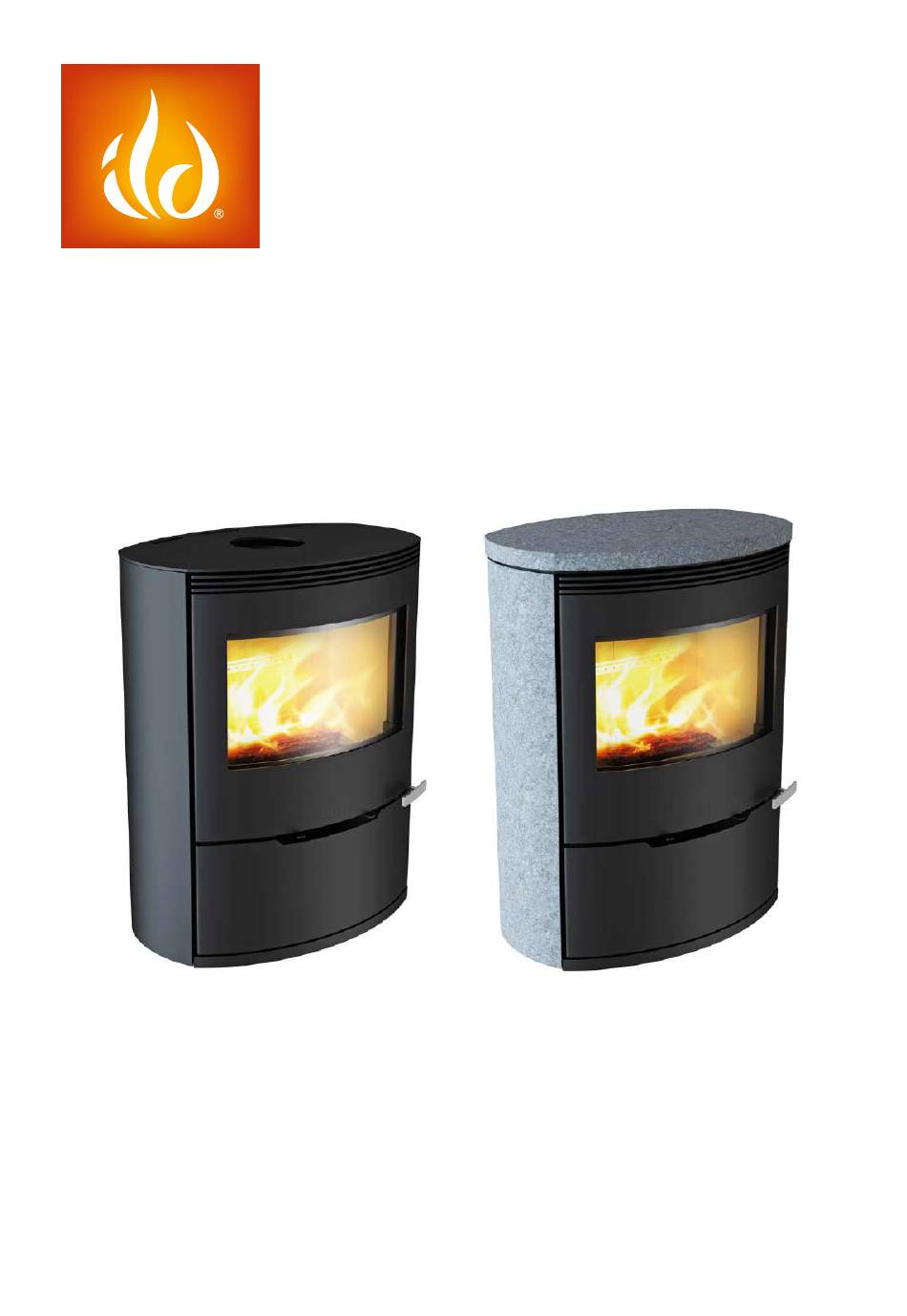

- Page 1 ENGLISH ILD 12 ECO and ILD 13 ECO EN 13240 - NS 3058/3059 Manual VERSION NO. 3, 18.02.2022 Model ILD 12 ECO and ILD 13 ECO...
-
Page 3: Table Of Contents
ENGLISH Content Technical Data Sheet......................4 Before the Installation ......................5 Packing ..........................5 First Time Use ........................5 Mounting ..........................5 Flue Connection Pipe Top/Rear .................... 6 Accessories .......................... 7 Wearing Parts ........................7 Closed Combustion System ....................8 Chimney &... -
Page 4: Technical Data Sheet
ENGLISH Ild is a range of safe, environmentally friendly and efficient high-quality stoves, which meet all requirements for a modern heating source. In order to get the best out of your stove, we recommend that you read this booklet carefully. -
Page 5: Before The Installation
ENGLISH Before the Installation Ensure that your Local registered installer can recommend wood stove installation. Ensure that updated European, national and local standards can be fulfilled. Ensure that the area can support the stove and installation weight. Ensure that there will be sufficient space and access to service. Ensure that the heat output of the stove is suitable for the room. -
Page 6: Flue Connection Pipe Top/Rear
ENGLISH Flue Connection Pipe Top/Rear 1. For a top flue outlet, remove the cover plate and mount the flue connecting piece with two pcs. bolts. (pic. 1/4) 2. For a rear outlet, remove the cover plate by cutting the “treads” with a nipper. (pic. 2) 3. -
Page 7: Accessories
ENGLISH Accessories Black spray: 50045641 Self-closing door spring set: 50062501 Wearing Parts When replacing or cleaning the combustion chamber´s insulation (vermiculite), first remove the baffle plate. Gently lift the plate and remove the pins in the side plates holding the plate in place. Push the front of the deflector plate upwards and turn it carefully making it possible to remove the plate from the burn chamber. -
Page 8: Closed Combustion System
ENGLISH Closed Combustion System In well-insulated houses, the air used up by the burning process has to be replaced. For this purpose you can mount the delivered fresh air connection piece (Ø 100 mm) at the bottom or at the rear of the stove and connect it to the outside. The installation must have a maximum length of 6 m and a consist of maximum 3 bends as well as a single inlet grate. -
Page 9: Stoking And Overloading
ENGLISH Stoking and Overloading The stove is approved as an intermitted heater which means that you must stoke the stove with a suitable amount of fuel (see data) which then burns down into embers before you stoke it the next time. The maximum amount of fuel specified in this manual should not be exceeded, overloading can cause excess smoke. -
Page 10: Refueling On To A Low Fire Bed
ENGLISH Refueling on to a Low Fire Bed If there is insufficient burning material in the fire bed to ignite a new fuel charge, excessive smoke emission can occur. Refueling must be carried out onto a sufficient quantity of glowing embers and ashes that the new fuel charge will ignite within a reasonable period. -
Page 11: Primary Air Control
ENGLISH Primary Air Control During normal heating, the primary air control is typically open between 0 and 50%. 0% may be used for burning soft wood and 50% for hard wood. In unusual weather conditions causing poor draught, it may be necessary to start up the stove with full primary air open. As the stove heats up slowly, decrease the primary lever towards the right. -
Page 12: Ash Drawer And Bottom Grate
ENGLISH Ash Drawer and Bottom Grate Ash residues can occur from time to time, and it is recommended that the ash drawer area is periodically inspected and cleaned out using a suitable vacuum cleaner. Make it a routine to check that the door gasket is firm and intact each time stove is cleaned. Ash drawer... -
Page 13: Cutting Out Ash Residues
ENGLISH Cutting Out Ash Residues At the front of the burn chamber there is a channel, which is designed to collect loose ashes when the stove is being used. When cleaning the stove, use a suitable vacuum cleaner. IMPORTANT!! Make sure that all ashes are cold, as there may still be embers present a long time after the fire has burned out. -
Page 14: Lighting The Stove Using A "Top-Down"-Lighting
ENGLISH Lighting the Stove Using a “Top-Down”-Lighting “Top-Down”-Lighting provides an environmentally friendly lighting and helps keep the glass area optimally clean. • 4 pieces of wood approx. 25-30 cm long with a weight of approx. 0.5-0.6 kg per piece. • 6-10 thin pieces of firewood of about 25-30 cm in length, with a total weight of approx. -
Page 15: Cleaning And Maintenance
ENGLISH Cleaning and Maintenance The stove can be wiped with a dry and lint-free cloth. The ceramic glass can also be wiped with a dry cloth, or you can buy a special glass cleaner at your authorized dealer’s. The glass cleaner must be used as directed. -
Page 16: Measurements
ENGLISH Measurements Ild 12 ECO ... - Page 17 ENGLISH Measurements Ild 13 ECO ...
-
Page 18: Safety Distance
ENGLISH Safety Distance European, national and local regulations concerning safety distances for wood-burning stoves must be complied with. Installations Examples ILD 12 and ILD 13 ECO Distance to furniture: 1400 mm... -
Page 19: Distance To Flammable Materials
ENGLISH Distance to Flammable Materials, with Uninsulated Flue Pipe ... -
Page 20: Mounting Of The Self-Closing Door Spring
ENGLISH Mounting of the self-closing door spring Stove ILD/WARM 12/13 Stove ILD/WARM 12/13 Stove ILD/WARM 12/13 Stove ILD/WARM 12/13 Lever Remove first protection palte Remove second /WARM 12/13 /WARM 12/13 /WARM 12/13 /WARM 12/13 protection plate Lever Spring Lever Spring... -
Page 21: Troubleshooting
ENGLISH Troubleshooting Problem Cause Manual passage reference Fuel too wet See: Fuel See: Primary/secondary Closed air controls control Smoke escapes to the room Chimney draft insufficient, See: The chimney effect and dimensions, height diameter cleaning or blockages Vacuum in room See: Closed combustion The air valves are set See: Primary/secondary... - Page 24 10058448-P03...
