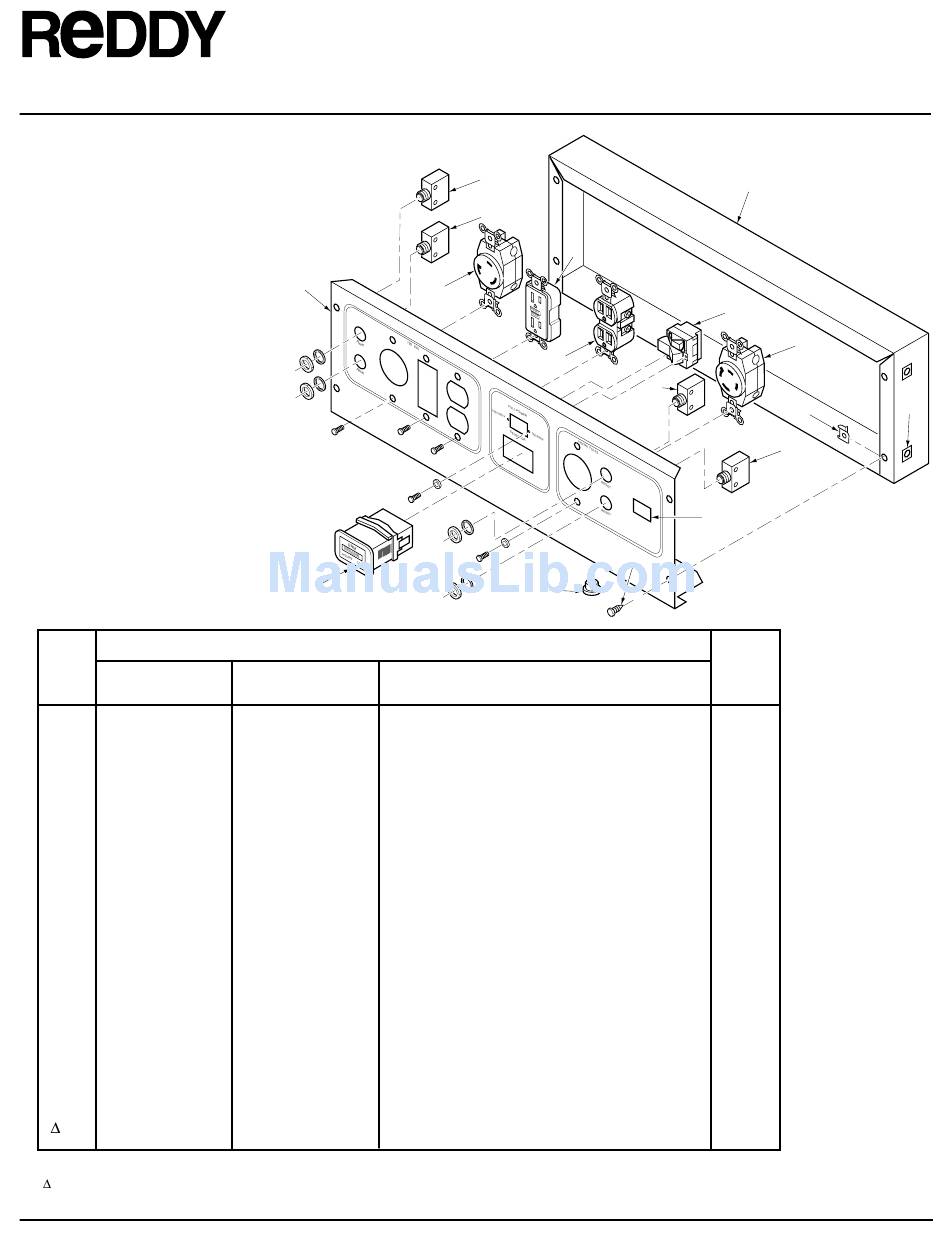

PORTABLE GASOLINE GENERATORS
ILLUSTRATED
PARTS LIST
For Models RGH5500A,
RGH5500AIE, and
RGH7500AIE Control Panel
This list contains replaceable parts
used in your generator. When order-
ing parts, follow the instructions listed
under Replacement Parts on page 19
of this manual.
PART NUMBER FOR MODEL
KEY RGH5500A
NO. RGH5500AIE
1 103349-02
2 22616009
3 099833-01
4 15324000
5 100445-01
6 099956-01
7 22616011
—
8 099834-01
—
9 101350-01
10 099760-01
11 100410-01
12 100149-01
13 22261000
14 099997-01
† 103348-02
† 103348-06
100177-07
* Includes fastening hardware
Not shown
† Includes reference numbers 1 through 13
®
1
9
RGH7500AIE DESCRIPTION
103349-04 Control Panel
22616009 Circuit Breaker, 20 Amp *
099833-01 120V, 30A Twist-Lock Receptacle *
15324000 120V, 15A Duplex Receptacle *
100445-01 120V, 15A Duplex (GFCI) Receptacle *
— Full Power Selector Switch *
— Circuit Breaker, 25 Amp *
22616010 Circuit Breaker, 30 Amp *
— 120/240V, 20A Twist-Lock Receptacle *
099835-01 120/240V, 30A Twist-Lock Receptacle *
101350-01 Hour Meter
099760-01 Bushing
100410-01 Sems Screw, #8-18 x 1/2"
100149-01 Control Box
22261000 U-Nut
099997-01 Switch Plug
103348-04 Control Panel Assembly
103348-08 Control Panel Assembly - Auto Idle Models
100177-07 Panel Schematic Decal
