Summary of Contents for GEONAUTE PEDOMETER DISTA D300

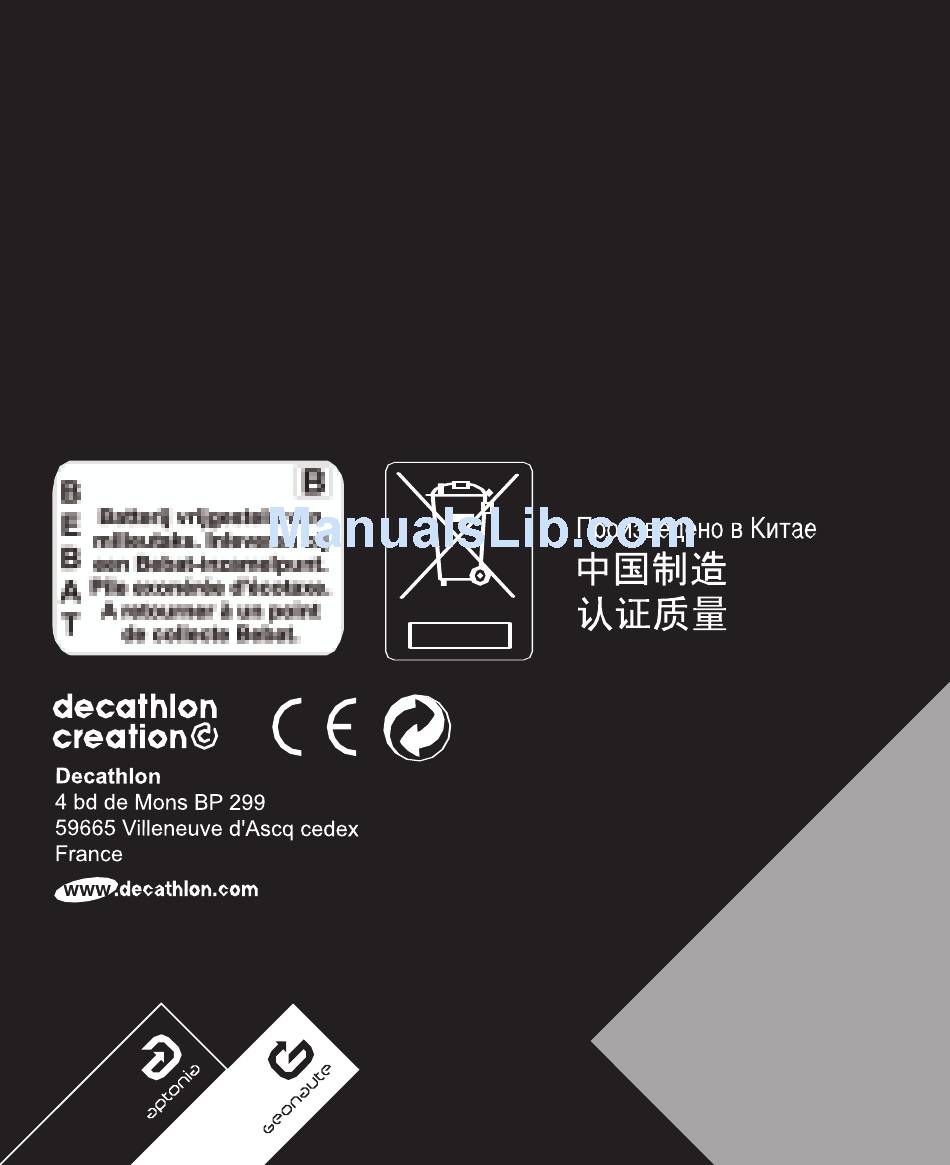

- Page 1 Made in China Hecho en China Réf pack : 763.238...
- Page 4 Congratulations and thank you for purchasing the DISTA T300 pedometer. This multi-function product will enable you to monitor your training. It measures the number of steps you take and computes the distance you cover, the number of calories you consume and how long you exercise.
-
Page 5: Limited Warranty
LIMITED WARRANTY DECATHLON guarantees the initial purchaser of this device that it is free from any faults linked to material or manufacture for a period of two years from the date of purchase. Please retain your receipt as - This guarantee does not cover damage resulting from misuse, from proof of purchase. -
Page 6: Available Functions
Restrictions on use/precautions for use - Do not immerse in water. If the device comes into contact with water, wipe it with a soft, dry, non-plush cloth. - Do not clean with abrasive or corrosive products. - Do not subject to shocks or expose to dust or extremes of temperature and humidity. -
Page 7: Setting The Pedometer
1 CR2032 battery 5. Battery compartment 6. Belt clip For attaching the device to your belt or clothing 7. Clip-on system For attaching the clip of the Géonaute R300 radio 8. Taking the products apart For removing the clip of the Géonaute R300 radio Recycling The “crossed-out wastebasket”... - Page 8 - Confirm the setting by pressing on the MODEbutton. Repeat the procedure to successively set the seconds. When this procedure is performed, the seconds automatically clear to zero. - Confirm the setting by pressing on the MODEbutton. Repeat the procedure to successively set the year, the month, the day and the format (12/24 h).The day of the week is displayed automatically on the top line.
-
Page 9: Setting The Alarm
It is therefore necessary to set a stride length for walking, symbolized by a walker icon on the right-hand side of the screen, and a stride length for running (runner icon). To calculate the number of calories consumed, you have to enter your weight. -
Page 10: Using The Pedometer
- Press on the SET button to finish the setting. - After setting the alarm, activate it by pressing on the RESET but- ton. When the alarm has been activated, ALM on is displayed on the bottom line and a symbol appears in the lower left-hand corner of the screen in all modes. -
Page 11: Navigation System
Navigation system Press on the MODE button to display the different modes: 1. HOUR: 12/24 hour clock, date 2. STEP: Step counter, number of steps, distance covered, calories consumed and exercise stopwatch 3. TO STEP: total number of steps and total distance covered 4. - Page 12 length in the settings for both activity modes. The distance will thus be calculated with a single step length. While you are walking, a walker icon is displayed on the right-hand side of the screen and your stride length for walking is used to calculate the distance.
- Page 13 COMPATIBLE WITH THE GEONAUTE R300 RADIO This pedometer is compatible with the Géonaute R300 radio. These two products clip together to form a single unit, so you can gauge your activity level while listening to FM stations. 1. Fold the metal tab out of the left-hand side of the radio by pressing on To attach the products together: the square-shaped pushbutton.
- Page 14 3. Place the belt clip in the central position (part of the clip is attached to each product) 1.Remove the belt clip To take the products apart: 2. Take the radio off by pushing down on the button located on the rear of the pedometer (8)
-
Page 15: Technical Information
3. Fold the metal tab back into the radio. 4. Reposition the belt clip onto the pedometer. TECHNICAL INFORMATION Changing the battery The device runs on one CR2032 battery To change an old battery: 1. Open the battery compartment lid using a coin. 2. -
Page 16: Specifications
Specifications 12/24 time with HH/MM/SS display Step counter from 0 to 999,999 steps Distance covered from 0 to 9,999.99 km (0 to 6,209.99 miles) Step length from 15 to 200 cm (6 to 79 inches) Weight range from 20 to 200 kg (44 to 440 lb) Operating temperature: -10°C to 40°C Storage temperature: -20°C to 60°C Power supply: 1 3V CR2032 battery... - Page 17 Specifications Problems encountered 1.1 There may be no battery in the device. 1. Nothing is displayed on the screen 1.2 The battery is positioned incorrectly in its compartmen 1.3 The battery may be dead. If so, it must be changed. P Launch an automatic troubleshooting procedure on the device 2.
- Page 18 Possible causes nt. Check the polarities. Please refer to the “Changing the battery” section. e, referring to the section entitled "Factory mode". to the store nearest you. o the section entitled “Changing the battery”. d be attached horizontally and worn on your belt (as close as possible to your center of gravity). g sensor) of the device is functioning properly: ter to detect your steps.
-
Page 19: Factory Mode
Factory mode This mode can be used to check the device in case of malfunction. To launch the device's troubleshooting procedure: 1. Press and hold down the 3 MODE, SET and RESET buttons simultaneously for 3 seconds 2. Verify that the device automatically and successively performs the following 4 steps: •... - Page 20 CONTACT As we strive to continually improve the products we develop, we are interested in your feedback regarding the quality, the functionality and the usage of our products. • In France, please call the customer service center at: 0810 080808 (local call rate) •...
