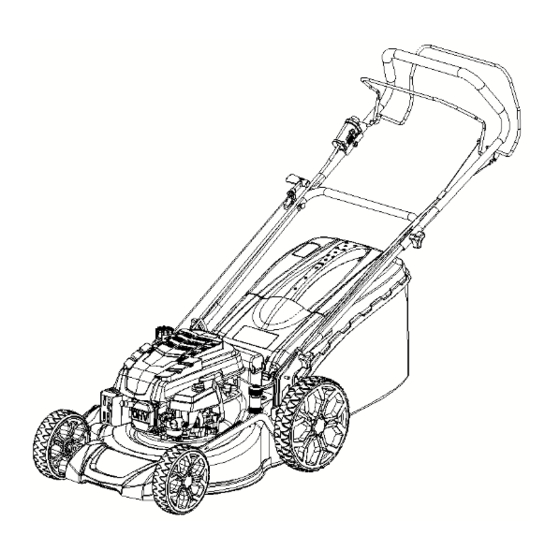

Gama Garden GLM 46P Basic Instruction Manual

Hide thumbs

Advertisement

Quick Links

GLM 46P Basic/Premium GLM 46P-1 Basic/Premium
GLM 48P Basic/Premium GLM 48P-1 Basic/Premium
GLM 51S Premium GLM 51ES Premium
Please read these instructions carefully and make sure you
Instruction manual
GLM 40P Basic
GLM 46ES Premium
GLM 48ES Premium
understand them before using this machine.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GLM 46P Basic and is the answer not in the manual?

Questions and answers

Related Manuals for Gama Garden GLM 46P Basic

Summary of Contents for Gama Garden GLM 46P Basic

  • Page 1 Instruction manual GLM 40P Basic GLM 46P Basic/Premium GLM 46P-1 Basic/Premium GLM 46ES Premium GLM 48P Basic/Premium GLM 48P-1 Basic/Premium GLM 48ES Premium GLM 51S Premium GLM 51ES Premium Please read these instructions carefully and make sure you understand them before using this machine.

  • Page 2: Table Of Contents

    Acquaer Kft. 2/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. CONTENTS SAFETY RULES ............3-5 TECHNICAL DATA ............6 OVERVIEW ..............7 ASSEMBLY ..............8-9 START AND STOP ............10 OPERATION..............11 MAINTENANCE ............12-13 GENERAL INFORMATION ........14 TROUBLESHOOTING ..........14-15...

  • Page 3: Safety Rules

    Acquaer Kft. 3/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. SAFETY RULES IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. - If petrol is spilled, do not attempt to start the I.
  • Page 4 Acquaer Kft. 4/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. tilted for transportation when crossing lawnmower for damage and make repairs surfaces other than grass, and when before restarting and operating the transporting the lawnmower to and from the lawnmower; area to be mowed. - if the lawnmower starts to vibrate •...
  • Page 5 Acquaer Kft. 5/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. These symbols may appear on your machine or in the literature supplied with the product. Learn and understand their meaning.

  • Page 6: Technical Data

    Acquaer Kft. 6/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. TECHNICAL DATA Type GLM 40P Basic GLM 46P / GLM GLM 46P / GLM GLM 46P / GLM GLM 46P / GLM 46P-1 Basic 46P-1 Basic 46P-1 Premium 46P-1 Premium (B&S450E) (B&S500E)
  • Page 7 Acquaer Kft. 7/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. Type GLM 48P / GLM GLM 48P / GLM GLM 48P / GLM GLM 48P / GLM 48P-1 Basic 48P-1 Basic 48P-1 Premium 48P-1 Premium (B&S500E) B&S625E) 164 cm 164 cm 103cm 103cm 54 cm...

  • Page 8: Overview

    Acquaer Kft. 8/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. OVERVIEW (Some type may different from drawing) Blade Control Drive Control Upper Handle Bottom Hanle Square Neck Bolt Recoil starter Knobs Knobs Petrol intake Oil fill Grass Bag Air fiter Spark plug Height Adjusable Handle Side Discharg...
  • Page 9 Acquaer Kft. 9/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. 2. Upper handle assembling • Insert bolt (M8X60) into left handle holder, lower handle and upper handle assembly in turn, then tighten with knob nut. • Insert bolt (M8X60) into right handle holder, lower handle, upper handle assembly and start rope hook in turn, then tighten with knob nut.

  • Page 10: Start And Stop

    Acquaer Kft. 10/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. 5. Working depth setting Only when mower is stationary and rotating blade has come to complete standstill. Mow the lawn twice weekly during the most active periods of growth. Never cut more than 1/3 of the length of the grass, especially during dry periods.
  • Page 11 Acquaer Kft. 11/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. • Place the lawnmower level. • Clean around the filler cap • Remove the filler cap • Using a clean funnel, fill tank to approximately 5 mm below the inner edge of the filler neck, being careful not to spill fuel.
  • Page 12 Acquaer Kft. 12/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. NOTE: If the engine does not start, repeat whole starting procedure. NOTE: If the engine starts but does not keep running, repeat the whole starting Starting the engine (hot starting) Follow the whole cold-starting procedure. WARNING! Keep your hands away from the silencer and surrounding areas that can become extremely hot.

  • Page 13: Operation

    Acquaer Kft. 13/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. OPERATION 1. The mower should not be used on ground that slopes more than 13°. This could cause engine lubrication problems. 2. To empty grass catcher: when the indictor cap is closed, the grass catcher is full. Please empty it.
  • Page 14 Acquaer Kft. 14/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. MAINTENANCE AND STORGE Always remove the spark plug lead before repair, cleaning or maintenance work. After 5 hours running time, tighten screws and nuts. Check the oil. The spark plug must be at the highest point on the mower when it is tilted up.

  • Page 15: Maintenance

    Acquaer Kft. 15/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. GENERAL INFORMATION 1.Installing and removing a battery • Switch off the engine and all power consumers • This battery may only be used on the place provided by the manufacturer. • Avoid short circuits by tools. •...
  • Page 16 Acquaer Kft. 16/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. Open battery housing here Charge the charger here E-Start Insert the ignition key here Table 1 Unregulated chargers with manual monitoring (acceptable). Curve Applications Soltage limitation (manual monitoring) Single charge 14,4 Volt max. Single charge 14,4 Volt max.

  • Page 17: Troubleshooting

    Acquaer Kft. 17/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. Table 3 Guideline values for the charging time depending on the battery status and charging unit size. Open circuit Charging time at charging device rated voltage* Charge status (%) current (Volt) 0.1×battery rated capacity (amp) >12,7 approx.
  • Page 18 Acquaer Kft. 18/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. while mowing Fault in carburation Contact a Licensed Service Centre Governor out of phase with respect to the Adjust the cable accelerator Guarantee terms Please carefully retain the guarantee card completed by the seller, or the proof of purchase.
  • Page 19 Acquaer Kft. 19/19 www.gamagarden.eu H-4900, Fehérgyarmat, Szatmári utca 11. Information concerning the packaging materials The used packaging materials must be thrown into the relevant waste collector. In case of the need of any parts, questions or service instructions please contact: szerviz@gamagarden.eu +36 30 508-6563 Acquaer Ltd., 4900 Fehérgyarmat, Szatmári u.
