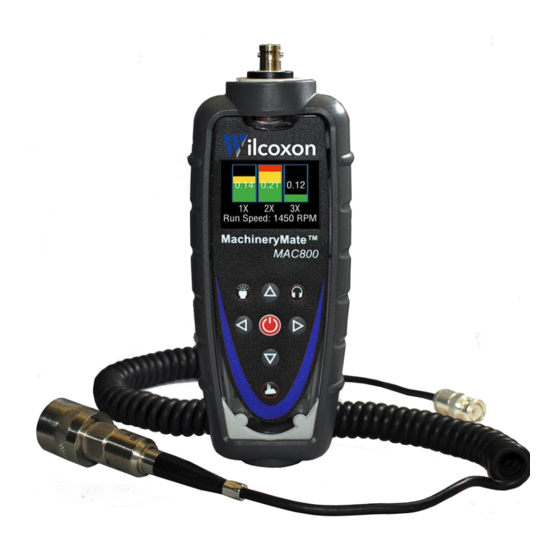

- Page 1 800 operating guide Handheld vibration meter Wilcoxon Sensing Technologies Tel: +1 (301) 330-8811 8435 Progress Drive, Frederick, MD 21701, USA Tel: +1 800 WILCOXON Fax: +1 (301) 330-8873 Amphenol (Maryland), Inc d/b/a Wilcoxon Sensing Technologies www.wilcoxon.com 91398 Rev C 06/22...
-
Page 2: Table Of Contents
Contents 1.0 Introduction 2.0 Operation 2.1 Fitting the sensor 2.2 Taking a reading 2.3 Configuration menus 3.0 Asset management ..8 4.0 DataMate trending software 5.0 Accessories and options 6.0 Technical assistance 6.1 Technical assistance 6.2 Customer service 91398 Rev C 06/22 Page 2 of 8... -
Page 3: Introduction
(held in place by six screws). 1.3 Service The MAC800 contains no user serviceable parts. In the unlikely case of malfunction, please return the complete unit to Wilcoxon Sensing Technologies. 2.0 Operation 2.1 Fitting the sensor The MAC800 is supplied with an integral cable connected 780FM-2-J88C sensor that connects to the BNC connector on the meter. - Page 4 Once a reading has been taken the display shows three color coded values to indicate alarm status. • ISO value (velocity in inch/s or mm/second) • Bearing noise in BDU (Bearing Damage Units) • Total g (acceleration) ISO value (mm/s) The ISO value (mm/s or inch/s) is the large number displayed at the top of the screen, which is the RMS (average) of the vibration velocity in the frequency band 10 Hz to 1 kHz (600 –...
- Page 5 Displacement Pressing the arrow buttons when the reading screen is displayed will display RMS displacement (mils or µm). Press the arrow buttons again to revert to the ISO value display (mm/s or inch/s). 2.2.2 Vibration analysis Press the down arrow to display the readings of vibration velocity (inch/s or mm/s), or displacement (mm or thou), broken down into each of three bands.
-
Page 6: Configuration Menus
The MAC800 can continuously display readings taken at one second intervals. Select live update from the Configuration menu, by holding down the POWER button for two seconds. It is possible to use live update with the basic readings screen, the VA bands screen or 100 line frequency spectrum. - Page 7 2.3.3 Device settings There are two pages of Device settings options. Use the arrow buttons to scroll through the options, and the POWER button to select. Auto Off Time Can be set from 1 minute up to a maximum value of 60 minutes, in increments of 1 minute. Brightness Can be set between 1 (least brightness) up to 10 (full brightness).
-
Page 8: Asset Management
A free version of DataMate accommodates a maximum of 10 machines, each with 10 measurement points. The full version for the software allows a maximum of 1,000 machines, each with 10 measurement points. Contact Wilcoxon Sensing Technologies at info@wilcoxon.com for more information. -
Page 9: Accessories And Options
6.0 Technical assistance 6.1 Technical assistance For technical assistance, please contact Wilcoxon Sensing Technologies at 301-330-8811 or email info@wilcoxon.com. 6.2 Customer service For customer service, please call 301-330-8811 or email info@wilcoxon.com.
