Summary of Contents for Wilcoxon MachineryMate 200

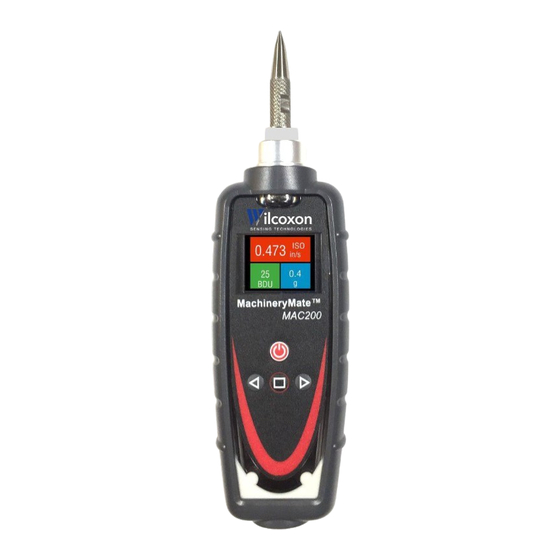

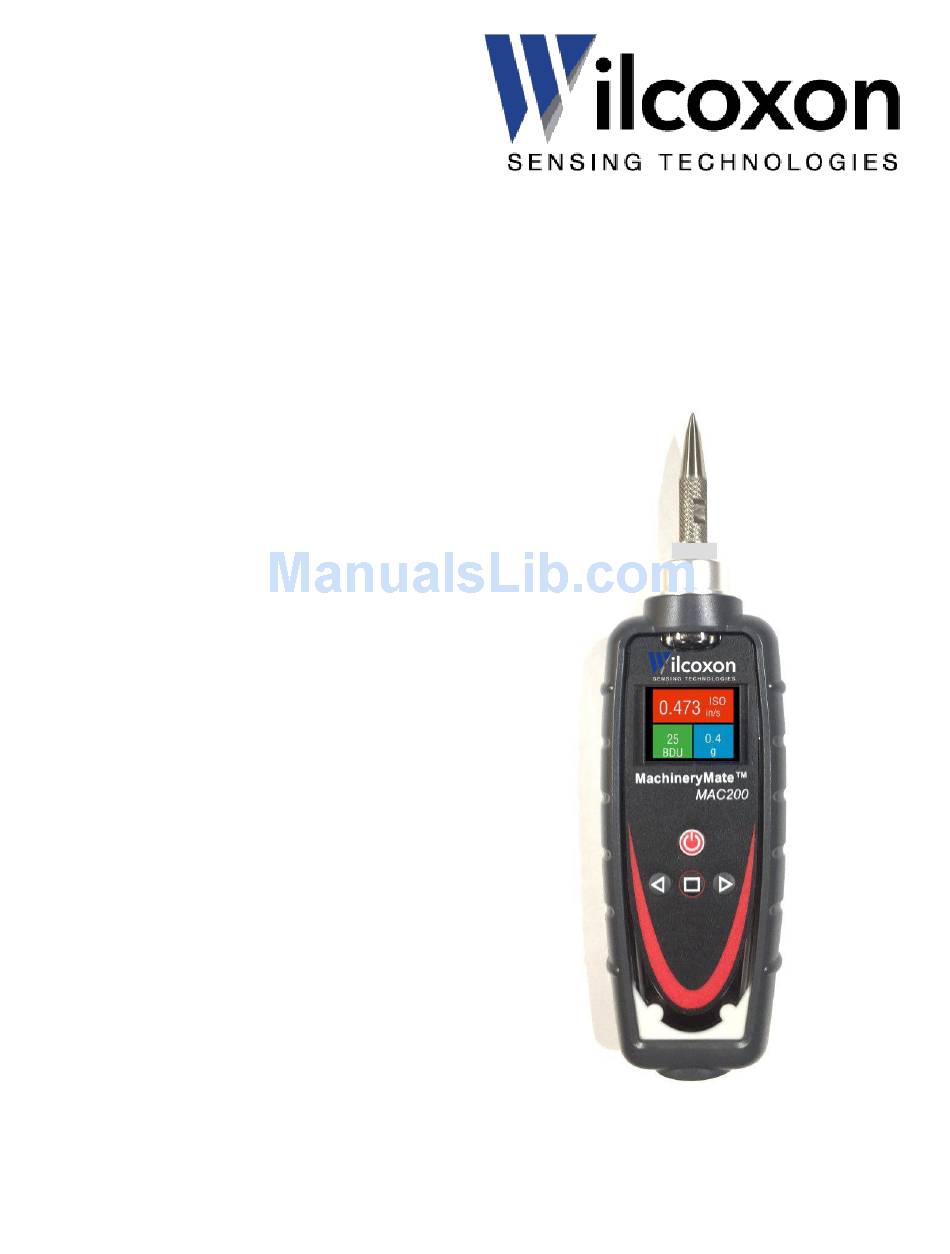

- Page 1 200 operating guide Handheld vibration meter Wilcoxon Sensing Technologies Tel: +1 (301) 330-8811 20511 Seneca Meadows Parkway, Germantown MD 20876, USA Tel: +1 800 WILCOXON Fax: +1 (301) 330-8873 Amphenol (Maryland), Inc d/b/a Wilcoxon Sensing Technologies www.wilcoxon.com 91397 Rev B 09/17...
- Page 2 Contents 1.0 Introduction 2.0 Operation 2.1 Changing the probe tip 2.2 Taking a reading 2.3 Settings menu 3.0 Maintenance and care ..7 4.0 Accessories and options 5.0 Technical assistance 5.1 Technical assistance 5.2 Customer service 91397 Rev B 09/17 Page 2 of 7...
- Page 3 IP67 rating. 1.3 Service The MAC200 contains no user serviceable parts. In the unlikely case of malfunction, please return unit to Wilcoxon Sensing Technologies. 2.0 Operation 2.1 Changing the probe tip To prevent damage, the probe tip should only be tightened using the machined flats on the probe tip’s...
- Page 4 The ISO value (mm/s or inch/s) is the large number displayed at the top of the screen is the RMS (average) of the vibration velocity in the frequency band 10 Hz to 1 kHz (600 – 60,000 RPM) or 2 Hz – 1 kHz (120 – 60,000 RPM), as specified by ISO standards.
- Page 5 2.2.2 Vibration analysis Press the SQUARE button again to display the readings of vibration velocity (mm/s or inch/s) broken down into each of three bands. The display shows the vibration level in frequency ranges based on multiples (1X, 2X and 3X) of the specified machine run speed shown beneath the bars.
- Page 6 The Settings menu can be accessed by pressing and holding down the SQUARE button for two seconds. Navigate the menu with the arrow buttons. Press the SQUARE button to select a menu item. 2.3.1 Setup Wizard Setup Wizard allows the machine running speed to be entered and the ISO alarm levels to be set automatically according to the size and type of machine to be monitored.
- Page 7 5.0 Technical assistance 5.1 Technical assistance For technical assistance, please contact Wilcoxon Sensing Technologies at 301-330-8811or email info@wilcoxon.com. 5.2 Customer service For customer service, please contact Wilcoxon Sensing Technologies at 301-330-8811, or email info@wilcoxon.com. 91397 Rev B 09/17 Page 7 of 7...
