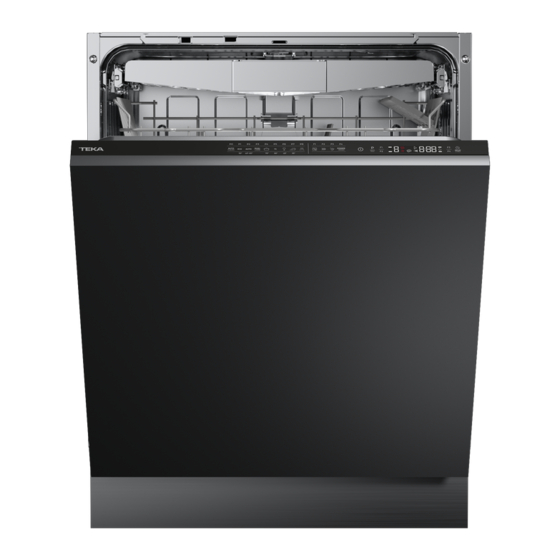

Teka DFI 46900 120/60 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Dishwasher
User manual
DFI 46950 120/60
DFI 46950 STD 120/60
DFI 46900 STD 120/60
DFI 46900 120/60
,
15 8702 0100_AA_uE5_USA/ 18-03-22.(16:47)
USA

Advertisement

loading
Need help?

Need help?

Do you have a question about the DFI 46900 120/60 and is the answer not in the manual?

Questions and answers

Related Manuals for Teka DFI 46900 120/60

Summary of Contents for Teka DFI 46900 120/60

  • Page 1 Dishwasher User manual DFI 46950 120/60 DFI 46950 STD 120/60 DFI 46900 STD 120/60 DFI 46900 120/60 15 8702 0100_AA_uE5_USA/ 18-03-22.(16:47)
  • Page 2 CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS 2. RECYCLING 3. GETTING TO KNOW YOUR DISHWASHER 4. LOADING THE DISHWASHER 4.1 UPPER RACK ADJUSTING THE HEIGHT OF THE UPPER BASKET 4.2 LOWER RACK 4.3 PROPER AND IMPROPER LOADING OF DISHWARE 5. WHAT SHOULD NOT BE WASHED IN YOUR DISHWASHER 6.
  • Page 3 shall be made to the equipment INTRODUCTION Please read this user manual and without the manufacturer’s permission particularly the safety instructions as this may void the user’s authority to completely and carefully. They will save operate the equipment” you time and effort and help to ensure Use the dishwasher only for its •...
  • Page 4 Consult a doctor immediately if and Polarized wall receptacle that detergent has been swallowed or has been installed and tested by an inhaled. licensed electrician and that it has if the hot water has not been used been installed based on all Local, State •...
  • Page 5 2. RECYCLING Note: Nickel is a component in all stainless steel and some other metal components. Remove the door to the washing • SAVE THESE INSTRUCTIONS compartment when removing an old dishwasher from service or discarding Service should be performed by a •...
  • Page 6 3. GETTING TO KNOW YOUR DISHWASHER 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Cutlery basket 5. Door 6. Model and Serial Tag 7. Control panel 8. Detergent and rinse aid dispenser 9. Lower basket 10. Filters 11. Salt container (Select Models) 12.
  • Page 7 4. LOADING THE Upper cutlery basket (Select Models) DISHWASHER Pull the handle to open the door. If the door is opened during operation, the dishwasher will stop running. Once the door is closed the program will continue. Remove coarse food leftovers from tableware.
  • Page 8 Lower rack 4 2 3 Upper cutlery basket (Select Models) 3 2 4 Additional loading pattern for 10 place setting Upper rack Upper rack without upper cutlery basket (Select Models)
  • Page 9 Lower rack without upper cutlery Cutlery basket basket (Select Models) 1: Salad Fork 2: Teaspoon 3: Dinner fork 4: Knife 5: Serving spoon 6: Serving fork 1 1 4 1 1 4...
  • Page 10 4.1 UPPER RACK CAUTION:Large knives and other utensils with sharp tips and edges Load the upper rack with dessert plates, must be placed horizontally into the cups, glasses etc. upper rack due to risk of injury. Other smaller knives and sharp utensils should be placed with sharp side down in the cutlery basket.
  • Page 11 COLLAPSIBLE UPPER BASKET UPPER BASKET MULTIPURPOSE WIRES SERVICE RACK (Select Models) (Select Models) You can use collapsible wires when you This accessory located at the upper basket need a larger space for your dishes in the of your machine allows you to easily wash upper basket of your machine.
  • Page 12 ADJUSTING THE HEIGHT OF THE To lower the basket, while it is in the uppermost position; UPPER BASKET (Select Models) Hold the upper basket wires with both The upper basket height adjustment hands, slightly lift up the basket and mechanism has been designed for you to simultaneously push and release the create large spaces in the lower or upper latches shown in the figure (B).
  • Page 13 ADJUSTING THE HEIGHT OF To raise the basket, hold the wires of the basket and pull the basket upwards THE UPPER BASKET with both hands while the basket is at (Select Models) the lowermost position (B) Upper basket height adjustment 2.
  • Page 14 HEIGHT SETTING the desired height C. (Select Models) In certain models, the height setting of the upper rack may be changed using the wheels which are present at two height levels. CAUTION:Make sure that the rack is empty. Changing the height setting while the rack contains tableware could cause the contents to dislodge, causing personal injury or damage to...
  • Page 15 COLLAPSIBLE LOWER BASKET COLLAPSIBLE LOWER BASKET TINES TINES (Select Models) (Select Models) There are foldable tines (A) located at There are foldable tines (A) located at the lower basket of the machine are the lower basket of the machine are designed for an easier placement of large designed for an easier placement of large pieces such as pans, bowls, etc.
  • Page 16 SILVERWARE BASKET SILVERWARE BASKET (Select Models) (Select Models) Silverware basket is designed to wash your Silverware basket is designed to wash your dishes such as knife, fork, spoon, etc. in a dishes such as knife, fork, spoon, etc. in an cleaner manner.
  • Page 17 TRAY WASH SUPPORTS SOFTTOUCH ACCESSORY (Select Models) (Select Models) Use the supports to wash trays in the The SoftTouch Accessory found in the bottom basket. lower basket of your machine enables a See the Auxiliary functions section safe washing for your fragile glasses. for appropriate program and function selection.
  • Page 18 LOWER BASKET MULTIPURPOSE / HEIGHT ADJUSTABLE SERVICE RACK (Select Models) This accessory located at the lower basket of your machine allows you to easily wash pieces such as extra glasses, long ladles and bread knives. You may use the racks as required by moving them to lower or upper position, or close them to create a wider space in your lower basket.
  • Page 19 CEILING CUTLERY BASKET (Select Models) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc.
  • Page 20 4.3 PROPER AND IMPROPER LOADING OF DISHWARE • Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards (so that no water can collect). • The movement of the spray arms must not be hindered. •...
  • Page 21 5. WHAT SHOULD NOT Do not wash sponges or dish cloths in • dishwasher. BE WASHED IN YOUR Do not wash art and craft articles in • DISHWASHER dishwasher. Rust-sensitive steel parts like iron Disposable plastics and disposable • • and cast iron that can rust and stain aluminum cannot withstand high other utensils and damage the interior...
  • Page 22 6. OPERATING THE PRODUCT NOTICE: If you do not perform any operation after switching on the machine, it will be automatically switched off within 5 seconds. On/Off key 2. Program Selection / Program Cancel (3 seconds) key 3. Function keys & indicators Half Load function Express function Extra Drying function...
  • Page 23 6.1 KEYS 6.3 PROGRAM SELECTION On/Off key Press the On/Off button to turn on When you press On / Off key, indicator your machine. lights illuminate on the display for ON 2. Check the Salt and Rinse Aid indicators position. The lights turn off in OFF position. and add salt and/or rinse aid if needed.
  • Page 25 ADDITIONAL FUNCTIONS Extra Drying function (E) (depends on the model) Washing programs of the machine are This function enables high level of drying designed to achieve the best cleaning performance. It can extend the duration of performance by considering the soil level, the selected program up to 30 minutes.
  • Page 26 Floor illumination Changing Warning Sound Volume Illuminates to show program is After turning on the machine, still running. press Time Delay and P / P+ keys (Select Models) simultaneously. Keep them pressed Your machine reflects a light to the floor until the countdown 3, 2, 1 is during the washing process.
  • Page 27 6.5 SCHEDULING THE gives an audible warning when it is WASHING TIME completed. You can select and start a new Time Delay program following the cancellation of If an economical electricity tariff is applied Time Delay function. in your region, you can use the Time Time Delay function cannot be set Delay function to wash your dishes during after the program starts.
  • Page 28 Adjusting the amount of rinse aid The machine will remain silent in pause After turning on the machine, mode for some time in order to remove press Time Delay and P+ keys the water from the machine and on simultaneously. After the countdown the dishes completely and to have the (3, 2, 1) is displayed keep the keys water softener cleaned, and then it will...
  • Page 29 Tub Clean down after they are washed. Your dishes will dry in a shorter time if you This program is recommended to be leave the door of your machine ajar operated on each 1-2 months for machine during this period. This process will cleaning and necessary hygiene.
  • Page 30 7. DETERGENT cm³) of detergent. Fill detergent up to .5 Ounces (15 cm³) or .85 ounces You can use powder, liquid/gel or tablet (25 cm³) level marks in the detergent detergents in the machine. dispenser according to fullness of the Only use in the machine the machine and/or soiling degree of the detergents produced particularly for...
  • Page 31 When you switch to powder Use powder or liquid/gel detergent detergent from tablet detergent: in short programs without prewash Make sure that salt (Select Models) and since the solubility of the tablet rinse aid reservoirs are full. detergent changes depending on the temperature and time.
  • Page 32 3. Slightly press the point (B) of the reservoir lid to close it. 4. If there are stains on tableware items after washing, level must be increased and if there is a blue trace after wiping them by hand, it must be decreased. This is set to position 3 as factory default.
  • Page 33 8. ADJUSTING THE WATER SOFTENING SYSTEM (Select Models) Cleaning, rinsing and drying performance of your dishwasher will increase when water softening system is adjusted properly. Adjust the new water hardness level according to the Water hardness level instruction in this booklet. Use the test strip supplied with the product according to the steps given below to determine hardness level of your supply water.
  • Page 34 2. Turn the salt reservoir lid counter- If the water hardness level adjustment clockwise to open it (A, B). is set to level 1, the “No salt warning indicator” will illuminate continuously although it is not necessary to use salt. If you use salt under this condition, salt will not be consumed and the Salt indicator will not illuminate.
  • Page 35 10. CARE AND MAINTENANCE WARNING:Before cleaning or carrying out maintenance, switch off the appliance, disconnect the mains plug and turn off the water tap. WARNING:Do not repair or replace any part of the dishwasher or attempt any servicing unless specifically recommended by this manual.
  • Page 36 Cleaning the stainless steel doors: Use a soft cloth with a cleaner made for cleaning stainless steel. For the best results, apply the stainless steel cleaner to a soft cloth and wipe the surface in the direction of the grain. Cleaning the door gasket: Regularly clean the door gasket with a damp cloth to remove food particles and other debris.
  • Page 37 10.3 CLEANING THE FILTERS 3. Press the two pawls on the coarse filter inwards and separate the coarse Clean the filters at least once a week in filter from the assembly. order for the machine operates efficiently. Check if food residues are left on the filters. If there are food residues on filters, take them out and clean well under running water.
  • Page 38 10.4 CLEANING THE HOSE 10.5 CLEANING THE WASH FILTER ARMS Damages on the machine that may be Clean the impellers at least once a week in caused by impurities coming from the order for the machine operates efficiently. urban supply water or your own water LOWER IMPELLER installation (such as sand, dirt, rust, etc.) Check if the holes on the lower impeller (1)
  • Page 39 Do not try to rotate the impeller by holding its ends. Trying to rotate the end sections may cause the gear system within the impeller to break. UPPER IMPELLER Check if the holes on the upper impeller (1) are clogged. If they are clogged, remove and clean the impeller.
  • Page 40 11. TROUBLESHOOTING Machine does not start. Power cable is unplugged. >>> Check if the power cable is plugged in. • Cicuit Breaker is blown. >>> Check the Cicuit Breaker in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •...
  • Page 41 Machine is unloaded right after the program is over. >>> Do not unload your • machine right after washing process is completed. Slightly open the door and wait for evacuation of the steam inside for a while. Unload the dishes after the pieces cool down to a touchable level.
  • Page 42 Filters are clogged. >>> Check if the filter system is clean. Clean the filter system • regularly as illustrated in section “Cleaning and Care”. Dirty dishes are kept in dishwasher for 2-3 days. >>> If you are not going to start •...
  • Page 43 container if possible. For ease-of-storing, we recommend you to use tablet detergents. Wash Arm holes are clogged. >>> Lower and upper Wash Arm holes might be clogged • with food remnants such as lemon pips. Clean the Wash Arm regularly as illustrated in section “Cleaning and Care”.
  • Page 44 Lid of the rinse aid reservoir is left open. >>> Make sure that the lid of the rinse aid • reservoir is closed after adding rinse aid. Kitchen utensils are broken. Dishes are not placed orderly in the machine. >>> Load the dishes as described in the •...
  • Page 45 TECHNICAL FEATURES 14 place settings Load capacity Permissible water 4.35 - 145 psi (0.3 - 10 bars) pressure 120 V (volts), 12 A (amps), 60Hz (hertz) Electrical connection 1400 W (watts) Total power 1100 W (watts) Heater power NOTICE: Because we continually strive to improve our products, we may change our specifications and design without prior notice.
