EZSTLG8WS*1B
LZSTLG8WS*1B
INSTALLATION & USE MANUAL
Manual de instalación y uso
Manuel d'installation et d'utilisation
EZ

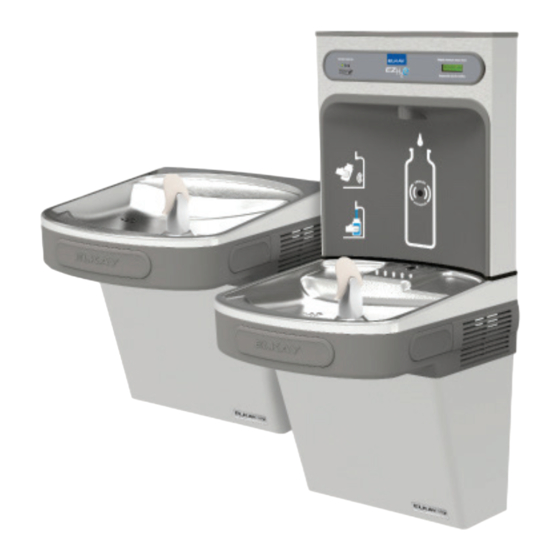

& LZ™ Series Versatile Bottle Filling Stations & Coolers
™
EZ™ & LZ™ Serie versatil Botella Bombas y Enfriadores
EZ™ & LZ™ Stations versatile de Remplissage de Bouteille Série et Refroidisseurs
*Versatile Cooler Model LZSTLG8WSLK
alternate installations
*Versatile Cooler Model LZSTLG8WSLK
configuration as shipped
*Versatile cooler design allows units to be
installed either left-hand high and right-hand low
or left-low and right high.
Basin change may be required. See desired
rough-in to help determine if the basin change is
necessary.
Page 1
1000001714 (Rev. M - 09/20)
