Elkay ezH2O LZWSM8 2A Series Installation & Use Manual

EZWSMD*1A
Installation & Use Manual
LZWSM8*
EZWSM8*
Installer
To assure you install this model easily and correctly, PLEASE READ THESE
SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK
YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND
OTHER APPLICABLE CODES. After installation, leave these instructions inside the
fountain for future reference.
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO
WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY
OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO
A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE
IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER
MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER SHOULD BE
MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING PLUMBING
SYSTEM. WE SUGGEST THAT THE BOTTLE FILLER BE PROTECTED BY A GROUND FAULT CIRCUIT
INTERRUPTER (GFCI)
1/4" O.D. TUBE
WATER INLET 3/8" O.D. TUBE CONNECT
COLD WATER SUPPLY
TO COOLER
NOTE: WATERFLOW
DIRECTION
Fig. 1
Patent zurn-elkay.com/patents
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
EZWSM8*1A EZWSM8*2A

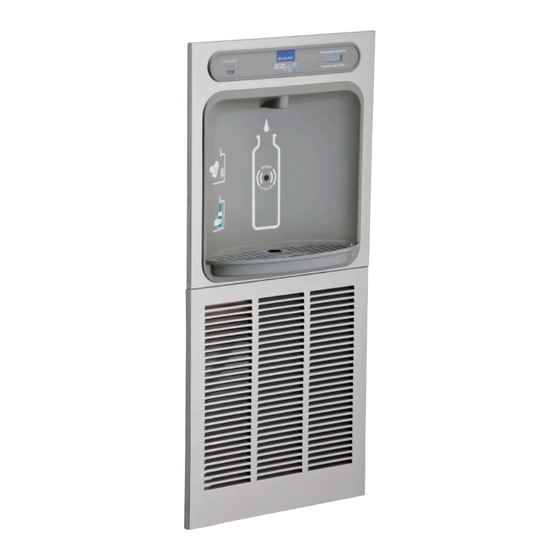

ezH2O In Wall Bottle Filling Station
®
LZWSMD*
EZWSMD*
IMPORTANT
IMPORTANT! INSTALLER PLEASE NOTE.
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
LZWSMD*1A LZWSM8*1A
LZWSM8P*
EZWSM8P*
OPERATION OF QUICK CONNECT FITTINGS
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN SIMPLY PUSH IN
TUBE TO ATTACH
TUBE TO ATTACH
A A B B
Page 1
LZWSM8*2A
LZWSMDP*
EZWSMDP*
TUBE IS SECURED PUSH IN COLLET
TUBE IS SECURED
PUSH IN COLLET
IN POSITION
IN POSITION TO RELEASE TUBE TO RELEASE TUBE
C C
PUSHING TUBE IN BEFORE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
PULLING IT OUT HELPS TO
Fig. 2
RELEASE TUBE
RELEASE TUBE
2000000485 (Rev. A - 01/22)
