Page
1
(13)
SERVICE MANUAL
Level 1&2
RM-394
RM-395 (US)
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.

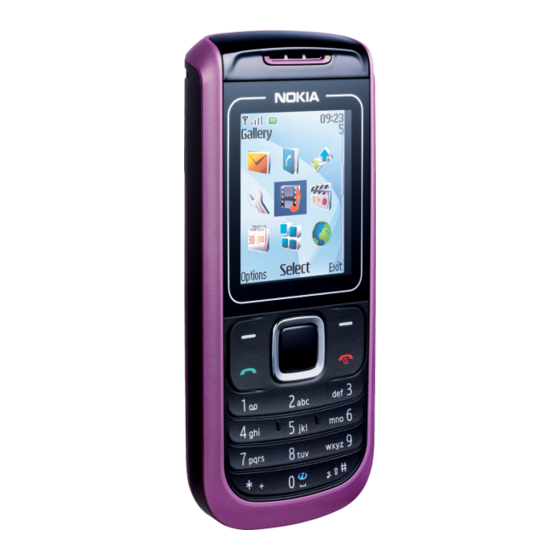

1680classic RM-394/RM-395/RM-490 1681c RH-118
RM-490
RH-118
Transceiver characteristics:
Band:
GPRS with EDGE downlink only
RM-394: EGSM Dual Band 900/1800 MHz
RM-395: GSM Dual Band 850/1900 MHz
RH-118: EGSM Dual Band 900/1800 MHz
RM-490: GSM Dual Band 850/1900 MHz
Display:
LCD: 64K color, 128x160, TFT (RM-394/395/490)
LCD: 128x160 CSTN color display (RH-118 only)
Camera:
VGA camera
Operating System:
ISA S40
Connections:
Connector: Easy Flash II Connector, AV connector for audio
Transceiver with BL-5CA 700mAh Li-Ion battery pack
Talk time
up to 7.6h
Transceiver with BL-5C 1020 mAh Li-Ion battery pack (RM-490)
ECTEL Talk time
up to 5.17 h
Service Manual Level 1&2
Standby time
Note
Depends on network
up to 18 days
parameters and
phone settings
ECTEL Standby
Note
time
Depends on network
up to 303.6 h
parameters and
phone settings
ISSUE 3
