JAE JN2 Series Manual

Small circular connector
Hide thumbs

Advertisement

Quick Links

Download this manual

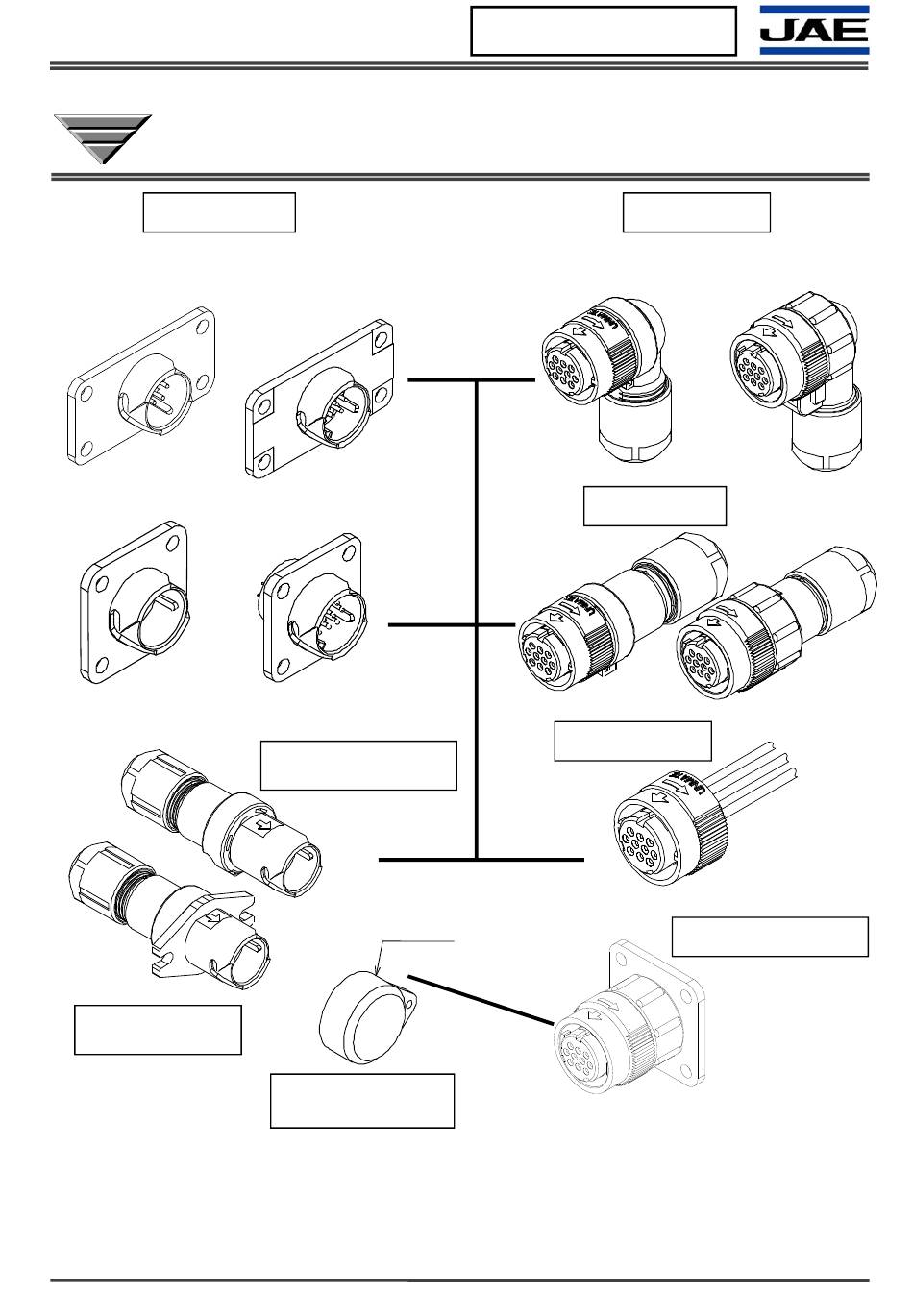

COMPONENTS PRODUCT INFORMATION
NEW
Receptacle
[JN1]
Wall Mount
Receptacle
The JN1/JN2 Series is a waterproof circular connector with one-touch locking mechanism
developed as an interface for industrial devices. It is available in an all-plastic type, JN1,
and a partially metal-reinforced robust type, JN2. Both are compact designs and suitable
for a variety of electronic devices. The 4-contact JN2 is TUV certified. (Patent and design
registration applications have been filed.)
JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd.
Small Circular Connector
JN1/JN2 Series
[JN2]
Cable Connecting
Receptacle
Cap
Waterproof Cap
(for receptacle)
RoHS Compliant
Angle Plug
[JN1]
Straight Plug
Individual Plug
CONNECTOR
MB-0054-11
May 2018
[JN2]
Panel Mount Plug
1/24

Advertisement

loading
Need help?

Need help?

Do you have a question about the JN2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for JAE JN2 Series

Summary of Contents for JAE JN2 Series

  • Page 1 JN2. Both are compact designs and suitable for a variety of electronic devices. The 4-contact JN2 is TUV certified. (Patent and design registration applications have been filed.) JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 1/24...

  • Page 2: General Specifications

    Plug: Crimp connection 20 to 28AWG Solder connection Solder connection 20AWG max. 16 AWG (1.25mm ) max. Product Specification JACS-5111 JACS-5111-2 Instruction Manual JAHL-5111 JAHL-5111 Durability 500 mating cycles 500 mating cycles JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 2/24...
  • Page 3 Solder connection 20AWG max. max. Product JACS-5119 JACS-5119-2 Specification Instruction Manual JAHL-5119 JAHL-5119 500 mating cycles 500 mating cycles Durability Please refer to individual drawings for detailed product information. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 3/24...
  • Page 4 Color of Bushing Applicable Cable Gray 6.5 to 8.0 Dia. Black 5.7 to 7.3 Dia. Dark Green 4.7 to 5.7 Dia. Brick Red 3.5 to 5.0 Dia. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 4/24...
  • Page 5 Color of Bushing Applicable Cable Gray 6.5 to 8.0 Dia. Black 5.7 to 7.3 Dia. Dark Green 4.7 to 5.7 Dia. Brick Red 3.5 to 5.0 Dia. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 5/24...
  • Page 6 S: Crimp socket (10 pin, sold separately) 04: 4 pins F: Socket with solder (4 pin) 10:10 pins Note 1: Please refer to product drawings for Modification Number. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 6/24...
  • Page 7 (10 dia. to 15 dia.) M: Pin with solder (4 pin) Number of Contacts 04: 4 pins 10:10 pins Note 1: Please refer to product drawings for Modification Number. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 7/24...
  • Page 8 Connection Method 10:10 pins S: Crimp socket (10 pin, sold separately) F: Socket with solder (4 pin) Note 1: Please refer to product drawings for Modification Number. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 8/24...

  • Page 9: Part Number List

    Waterproof (when mated), solder socket kit type (with two types of rubber bushing), X position Waterproof Cap J025-52209-RK SJ119896 JN1, 2 Receptacle (4, 10 pins) for waterproof, IP67 JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 9/24...
  • Page 10 Waterproof (when mated), crimp socket, kit JN1FS10SLK 034966 type (with 10 contacts and two types of rubber bushing) JN1, 2 Receptacle (4, 10 pins) for Waterproof Cap J025-52209-RK SJ119896 waterproof, IP67 JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 10/24...
  • Page 11 Outer Dia. 1.1 max. * JN2 and JN1 utilizes common contact. * Contact extraction tool (Part Number: ET-JN1) is available. Please refer to the connector handling instructions concerning contact extraction. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 11/24...
  • Page 12 Waterproof (when mated), solder socket, kit type (with two types of JN2FS04FKKX-R SJ105535 rubber bushing), X position JN1, 2 Receptacle (4, 10 pins) for Waterproof Cap J025-52209-RK SJ119896 waterproof, IP67 JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 12/24...
  • Page 13 JN1, 2 Receptacle (4, 10 pins.) for Waterproof Cap J025-52209-RK SJ119896 waterproof, IP67 * Please contact us when considering size of bushing to use. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 13/24...
  • Page 14 MB-0054-11  Receptacle JN1AS04MK1* Side View Mating Side Termination Side  Waterproof Cap J025-52209 Side View Mating Side JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 14/24...
  • Page 15 MB-0054-11  Receptacle JN1AS10ML1-R Termination Side Side View Mating Side  Receptacle JN1AS10ML2-R Connection Side Side View Side View (cross section) JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 15/24...
  • Page 16 MB-0054-11  Receptacle JN1AS10UL1 Termination Side Side View Mating Side  Individual Plug JN1ES10SL1 Mating Side Side View Drawing (when mated) JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 16/24...
  • Page 17 MB-0054-11  Straight Plug JN1DS10SL* JN1DS04FK** Drawing (when mated)  Angle Plug JN1FS10SL* JN1FS04FK** Drawing (when mated) JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 17/24...
  • Page 18 MB-0054-11  Cable Connecting Receptacle JN1HS04MK*-R JN1HS10PL* Drawing (when mated)  Cable Connecting Receptacle JN1HS04MK*S (Slim Outer Diameter Type) JN1HS10PL*S Drawing (when mated) JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 18/24...
  • Page 19 MB-0054-11  Wall Mounting Receptacle JN1KS04MK*-R JN1KS10PL* Drawing (when mated) JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 19/24...
  • Page 20  Receptacle JN2AS04MK2*-R Termination Side Side View Mating Side  Receptacle JN2AS10ML1*-R Side View Termination Side Mating Side  Receptacle JN2AS10ML2*-R Termination Side Side View Side View (cross section) JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 20/24...
  • Page 21 MB-0054-11  Receptacle JN2AS10UL1-R Side View Mating Side Termination Side Panel Mount Plug JN2MS10SL*-R Mating Side Side View JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 21/24...
  • Page 22 MB-0054-11  Straight Plug JN2DS04FK**-R JN2DS10SL*-R Drawing (when mated)  Angle Plug JN2FS04FK**-R JN2FS10SL*-R Drawing (when mated) JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 22/24...
  • Page 23 Please note that production of the old model was end of life in March 2009.  Suggested Conduit Model Neoflex RQJN-M13-9, RQJN-M13-16 Daiwa Dengyo PCJN-12-M13F Sankei Seisakusho N2KY16-FN3 Please consult with conduit manufacturer regarding use of each conduit. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd. 23/24...
  • Page 24 Aobadai Building, 3-1-19, Aobadai, Meguro-ku, Tokyo 153-8539 Phone: +81-3-3780-2882 FAX: +81-3-3780-2946 * The specifications in this brochure are subject to change without notice. Please contact JAE for information. JAE PMK Div. Proprietary. Copyright © 2018, Japan Aviation Electronics Industry, Ltd.
