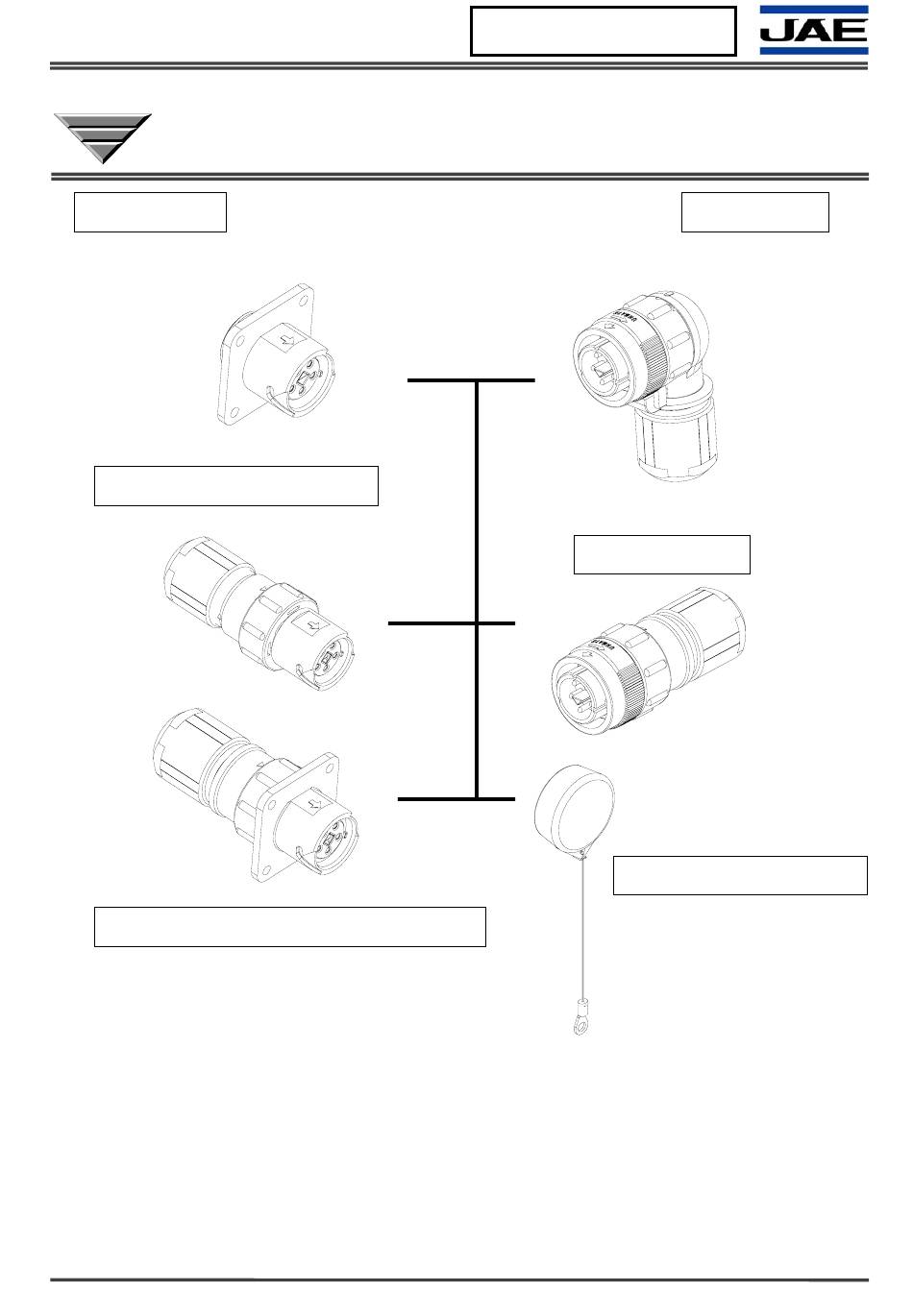

COMPONENTS PRODUCT INFORMATION
NEW
Receptacle
[JN2W]
Cable Connecting Receptacle
[JN2W]
[JN1W]
[JN2W]
[JN1W]
Flanged Cable Connecting Receptacle
<<Overview>>
This product series has been developed primarily for industrial device applications. It is
available with either 5 contacts for power supply or 15 contacts for signal, and it is a larger
size than the existing 4-contact and 10-contact JN1/ JN2 Series. The 5-contact version is
for 13 Amp, and the 15-contact version utilizes the same contacts (crimp) as that of the 10-
contact version. This product series consists of waterproof circular connectors with a one-
touch locking mechanism. EN61984 will be obtained for the 5-contact version (Patent and
design registration applications have been filed).
JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
Small Circular Connector
JN1W/ JN2W Series
RoHS Compliant
[JN2W]
Straight Plug
Dust Cap (for receptacle)
CONNECTOR
MB-0178-2
February 2008
Angle Plug
[JN2W]
1/13
Advertisement
Related Manuals for JAE JN1W Series
Summary of Contents for JAE JN1W Series
- Page 1 This product series consists of waterproof circular connectors with a one- touch locking mechanism. EN61984 will be obtained for the 5-contact version (Patent and design registration applications have been filed). 1/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
-
Page 2: General Specifications
1000 M ohm min. (DC500V energized ) Waterproof IP67 Specification of Wire Connection Crimp connection (AWG #20 to 28) Product Specification JACS-5111 Instruction Manual JAHL-5111 Durability 500 mating cycles 2/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd. - Page 3 Connection Product JACS-5119 JACS-5119-4 Specification Instruction JAHL-5119 JAHL-5119 Manual Durability 500 mating cycles 500 mating cycles Please refer to the drawings for each product for further information. 3/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
- Page 4 Synthetic rubber Dust Cap Rope Stainless steel Crimp terminal Copper alloy/ Sn plating * Dust cap (for receptacle) in common with dust cap for JN1W and JN2W. 4/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
- Page 5 *The modification code shown on the part number stands for the applicable wire. (JN1W, JN2W common use) Applicable cable Modification code 5 pos., 15 pos. 10 to 12 Dia. 8 to 10 Dia. 4 to 6 Dia. 5/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
- Page 6 No. of contacts 05: 5 pos. 15:15 pos. Note1 The meaning of modification code is different for each product. Please refer to drawing of each product for details. 6/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
-
Page 7: Ordering Information
JN2FW15SL1 105328 cable dia. 8 to 10 JN1, 2W-15 pos., JN2W-5 pos. for Waterproof Cap JN2-AWDC1 108228 receptacle, IP67, with rope * Contact in common with JN1 7/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd. - Page 8 Angle Plug Waterproof (when mated), solder socket JN2FW05FH1 108154 cable dia. 8 to 10 JN1, 2W-15 pos., JN2W-5 pos. for Waterproof Cap JN2-AWDC1 108228 receptacle, IP67, with rope 8/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
- Page 9 MB-0178-2 [JN1W 15-Contact] Cable connecting receptacle JN1HW15PL1 Drawing (when mated) Flanged cable connecting receptacle JN1KW15PL1 Drawing (when mated) 9/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
- Page 10 MB-0178-2 [JN2W 15-Contact] Receptacle JN2AW15PL* Rear side Connection side Drawing (when mated) Straight plug JN2DW15SL* Drawing (when mated) Angle plug JN2FW15SL* Drawing (when mated) 10/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
- Page 11 MB-0178-2 [JN2W 5-Contact] Receptacle JN2AW05FH1 JN2AW05MH1 Rear side Connection side Straight plug JN2DW05FH* JN2DW05MH* Drawing (when mated) Angle plug JN2FW05FH* JN2FW05MH* Drawing (when mated) 11/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
- Page 12 Please release the lock of the mis- mating prevention key with a pair of tweezers to change the position to B, C or D. (Refer to drawing on right side.) Pinch with tweezers 12/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
- Page 13 AV devices, Household applications, Phone: +81-3-3780-2787 FAX: +81-3-3780-2946 FA devices, etc. * The specifications in this brochure are subject to change without notice. Please contact JAE for information. 13/13 JAE PMK Div. Proprietary. Copyright © 2008, Japan Aviation Electronics Industry, Ltd.
