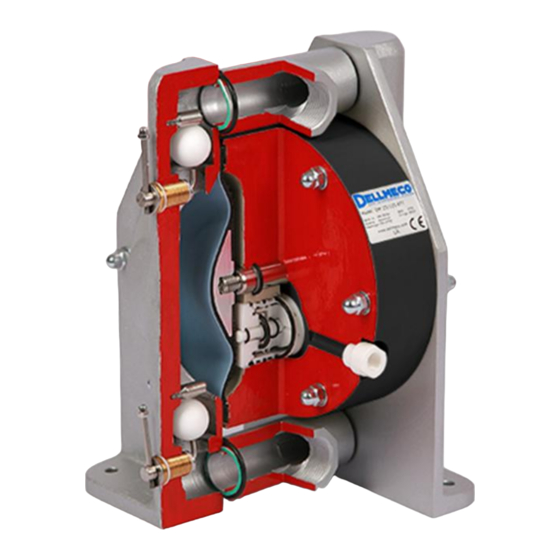

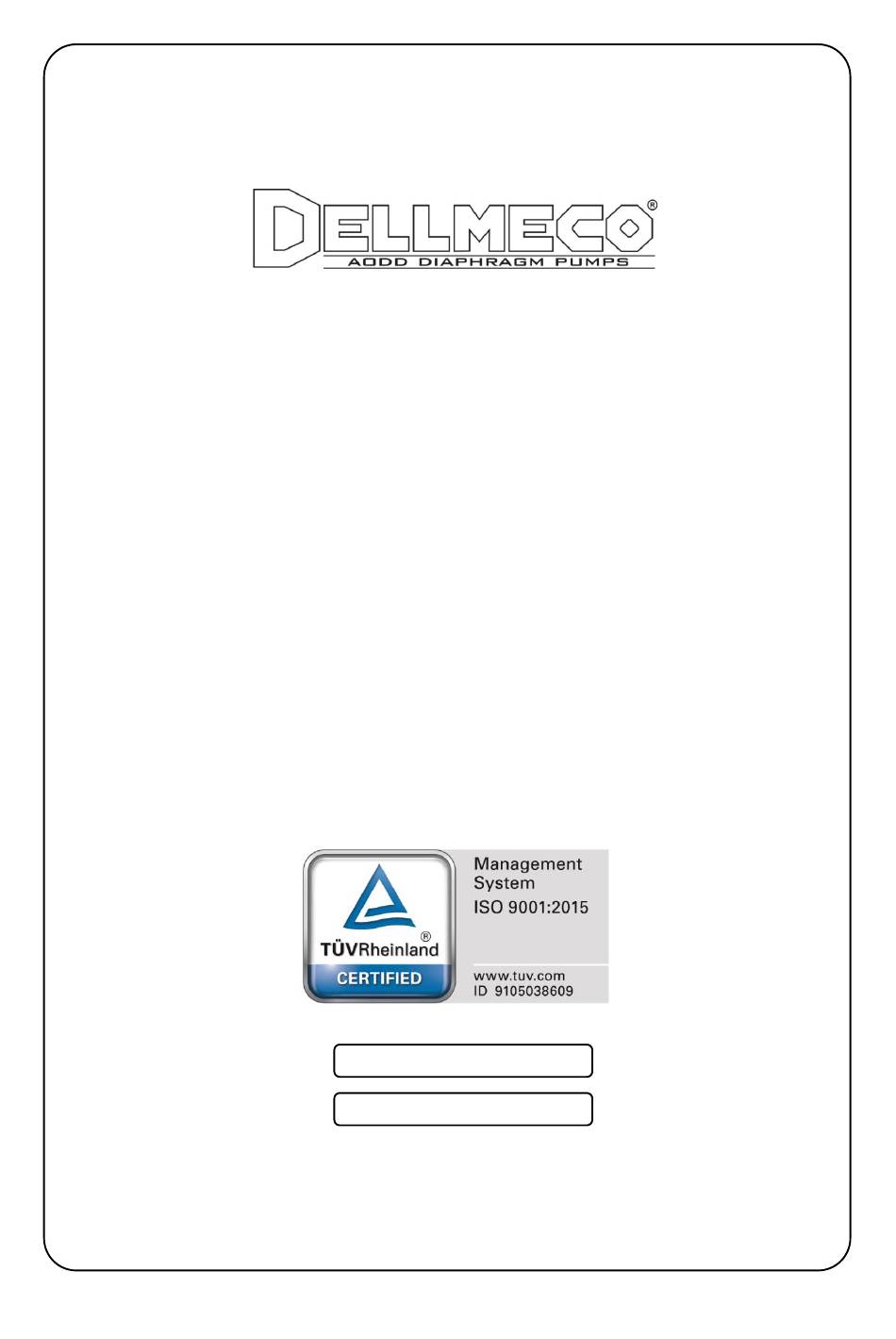

- Page 1 INSTRUCTION MANUAL Air operated double diaphragm pumps Ver. 3.28 Models: DM 15/25 DM 20/75 DM 25/125 DM 40/315 DM 50/565 DM 80/850 Serial no.
- Page 2 Product name: Air Operated Double Diaphragm Pumps Models: DM - series Referred to in this declaration conforms with the: - Directive 2006/42/EC Date: December 2 2013 K. Ziemann Managing Director 2I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 3: Table Of Contents
14.3. Technical Data _______________________________________________________________________________ 25 14.4. Pump code __________________________________________________________________________________ 25 14.5. Performance curves ___________________________________________________________________________ 26 15. Dellmeco Active Pulsation Dampers for Metal Pumps ____________________________________________ 27 15.1. Main specification ____________________________________________________________________________ 27 15.2. Appearance and dimensions _____________________________________________________________________ 30 16. Optional Equipment ________________________________________________________________________ 31 16.1. -
Page 4: Introduction
In case a diaphragm gets damaged, fluid will gush out together with air through the exhaust port. Provide protective measures in consideration of possible leakage of fluid. When you using the hose and pit etc, make sure to use a model with appropriate corrosion resistance for the fluid to be pumped. 4I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 5 Ø Use only genuine Dellmeco parts when replacing component parts of this product. Torque of all tightening parts must be checked before running the pump. Designated torques are mentioned in maintenance manual.
-
Page 6: Names Of Parts And Materials
5. Names of parts and materials 5.1. DM 15/25 Flange Connections: PN10 DIN 2576 (option F7), ANSI 150 RF-SO (option F8), PN16 DIN 2277/2278 (option F9) M4 ground hole location Split Connections (option S) 6I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 7 Spare parts list for DM 15/25 pumps MATERIAL DM 15/25 2 Pump housing 3 15 01 60 Al + PTFE 3 15 01 61 Cast iron 3 15 01 65 1 Center housing PE conductive 1 10 10 21 2 Suction/Discharge ports...
-
Page 8: Dm 20/75, Dm 25/125
5.2. DM 20/75, DM 25/125 Flange Connections: PN10 DIN 2576 (option F7), ANSI 150 RF-SO (option F8), PN16 DIN 2277/2278 M4 ground hole (option F9) location Split Connections (option S) 8I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 9 1 15 11 21 1 25 11 21 2 Shaft allen pin screw AISI 304 1 15 540 50 1 25 540 50 1 Air valve key (SK4) diverse 1 08 58 00 1 08 58 00 9I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 10: Dm 40/315, Dm 50/565
5.3. DM 40/315, DM 50/565 Flange Connections: PN10 DIN 2576 (option F7), ANSI 150 RF-SO (option F8), PN16 DIN 2277/2278 (option F9) Split Connections (option S) 10I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 11 1 40 11 21 1 50 11 21 2 Shaft allen pin screw AISI 314 1 40 540 50 1 50 540 50 1 Air valve key (SK4) diverse 1 08 58 00 1 08 58 00 11I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 12: Dm 80/850 (Aluminium Version Only)
5.4. DM 80/850 (Aluminium version only) 12I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 13 1 80 11 21 AISI 304 2 Shaft allen pin screw 1 80 540 50 1 Muffler adapter PE conductive 1 80 299 21 1 Air valve key (SK4) diverse 1 08 58 00 13I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 14: Assembly
POSITIVE SUCTION HEAD Common as a method of drawing off the bottoms of holding tanks and clarifiers. Optimum inlet pressure should be kept at 0.2-0.3 bar. 14I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 15 Fixing the bolts is necessary as well after longer periods of stoppage, at extreme temperature variations, after transport and dismantling the pump. Size DM 15/25 DM 20/75 DM 25/125 DM 40/315 DM 50/565 DM 80/850 Torque values for housing bolts [Nm]: Torque values for valve stoppers [Nm]: 15I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 16: Connecting The Ground Wire
3) Connect a hose to the valve on the suction-port side and the valve of the discharge-port side of the pump. 4) Connect a hose on the suction-side intake and the discharge-port side to the respective vessels. 16I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 17: Connecting Air Piping
Peripheral equipment with sufficient airflow should be chosen to meet the requirement of the pump air consumption. It must be installed nearest the pump unit, even using dry air. Usage and stability of air pressure must be considered. 17I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 18: Operation
If fluid is not discharged after you start the pump, or if you hear an abnormal noise or notice any irregularity, shut down the pump immediately. 18I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 19: Shutdown
5) Start the pump air pressure slowly, and let the cleaning solution circulate for sufficient cleaning. 6) Flush with clean water. 7) Remove the hose from the suction side of the pump, run the pump for a while to purge the pump of remaining fluid as much as possible. 19I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 20: Daily Check
The flow valve on the discharge side is not open. Open the flow valve on the discharge side. The fluid piping is clogged with sludge. Check and clean the fluid piping. The pump is clogged with sludge. Disassemble the casing, check and clean. 20I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 21 Check and clean the exhaust port and muffler. sludge. The pump is clogged with sludge. Disassemble the casing, check and clean. 12.4. Liquid leakage from exhaust port (silencer) Cause Action to take Damaged diaphragms. Replace the diaphragms. 21I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 22: Returning The Product For Servicing
1) Get an acceptance from your dealer or regional office. 2) Clean the pump. 3) Return the product in the same package as when it was first shipped from the factory. 22I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 23 Suction side _________________________ m *YES Density _______________ wt% Suction side diameter _________________ m Particulate diameter _____________________ mm Discharge side _____________________ m Problem Draw a summary drawing of application (size, length of piping, and component parts) 23I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 24: Main Body Specification
Please contact your dealer or our regional office for details. 14.2. Appearance and dimensions ØJ DM 15/25 " " DM 20/75 " " DM 25/125 G 1" " DM 40/315 " " DM 50/565 G 2" " G 3” DM 80/850 " 24I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 25: Technical Data
The above figures represent EPDM-fitted pump capabilities. It can vary for PTFE-fitted diaphragm. * Aluminium pump only 14.4. Pump code DM 15/25 ANT – DM1 DM1 - Optional equipment: BC1 – Barrier chamber with sensors (NAMUR) BC2 – Barrier chamber as BC1 with controllers DM - Dellmeco Pump BC3 –... -
Page 26: Performance Curves
14.5. Performance curves 26I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 27: Dellmeco Active Pulsation Dampers For Metal Pumps
DELLMECO active pulsation dampers represent the latest generation of active pulsation dampers. They are specially designed to be used along with DELLMECO pneumatic double diaphragm pumps of the metal range. A general aspect to be considered is, that a pulsation damper decreases the total capacity of the system depending on the point of operation. - Page 28 8 80 79 10 8 /12** / 16*** Damper plug set 2 08 058 20 2 15 058 20 8 15 058 20** 8 25 058 20** 2 50 058 20*** 2 80 058 20*** 28I DELLMECO I AODD DIAPHRAGM PUMPS...
- Page 29 PULSATION DAMPER – Exploded view 29I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 30: Appearance And Dimensions
C [in.] G 1/2" G 3/4" G 3/4" G 1" G 1" " " G 2" G 2" G 3" D [mm] E [in.] R1/8" R1/8" R1/8" R1/8" R1/8" R1/4" R1/4" R1/4" R1/4" R 1/2" 30I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 31: Optional Equipment
Additional information to the operating and installation instructions ought to be studied before installing the pump For special requirements DELLMECO pneumatic diaphragm pumps of the Metal Series can be furnished with several optional equipment. The pump code informs, which of these are included in the pump. - Page 32 Exploded view, Barrier Chamber System for DM 15 (SC5, SC6 only) Exploded view, Barrier Chamber System for DM 20, 25, 40, 50 32I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 33: Stroke Counting (Option Code Sc1, Sc2, Sc3, Sc5, Sc6)
The wiring diagram and technical data can be found on the electric units themselves. For further details, please refer to the data delivered by the manufacturers of the components. The controllers have to be installed in a suitable cabinet. 33I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 34 • SC 5 consist of: - pressure transmitter 1-10 bar - socket with cable 2,5 m - adaptor elbow NPT ¼ (or adaptor straight M5 for DM 15/25 pumps only) - hose DN 4/6; 2,5m • SC 6 consist of:...
-
Page 35: Diaphragm Monitoring (Option Code Dm1, Dm2)
16.3. Diaphragm Monitoring (option code DM1, DM2) Although DELLMECO diaphragms with integrated metal core are designed for an optimum service life, the diaphragm remains a wear part. If it breaks, liquid can leak into the center housing and possibly emerge through the muffler. -
Page 36: Back Flushing System (Option Code Bf1, Bf2, Bf3)
The side housing o-rings are made from EPDM (BF1 – Aluminium and Cast Iron Pumps), PTFE (BF2 – AISI 316 Pumps) or FKM (BF3 - Aluminium and Cast Iron Pumps). Appearance of Back Flushing System 36I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 37: High Pressure (Option Code Hp)
16.7. High Pressure (option code HP) DELLMECO diaphragm pumps can be fitted with High Pressure option. It is a very compact unit that can be mounted directly to the filter press. It has been designed for charging filter presses with chemical wastes and special sludge. - Page 38 3 25 242 50 3 40 242 50 3 50 242 50 Center housing connection bolt AISI 304 3 20 442 50 3 25 442 50 3 40 442 50 3 50 442 50 38I DELLMECO I AODD DIAPHRAGM PUMPS...
- Page 39 Performance curves for High Pressure pumps 39I DELLMECO I AODD DIAPHRAGM PUMPS...
-
Page 40: Heating Jacket (Option Code Hj) - Aisi 316 Only
3 20 130 52 3 25 130 52 3 40 130 52 3 50 130 52 Hose connection diverse 3 20 92 00 3 25 92 00 3 40 92 00 3 50 92 00 40I DELLMECO I AODD DIAPHRAGM PUMPS... -
Page 41: Powder Pump (Option Code P) - Aluminium Only
16.9. Powder Pump (option code P) – Aluminium only DELLMECO Pumps can also transfer and handle dry process powders more quickly, cleanly and at a fraction of the cost associated with installed systems. Available on Aluminium Pump series (from model DM 20/75 A.. up to model DM 50/565 A.. -
Page 42: Limited Warranty
4. Parts Parts for this product will be kept available for 5 years after discontinuation of production. Once 5 years have elapsed after close of production, availability of parts for this product cannot be guaranteed. 42I DELLMECO I AODD DIAPHRAGM PUMPS... - Page 43 Notes:...
- Page 44 DELLMECO LTD Unit 1, Willow Row Longton Stoke on Trent Staffordshire ST3 2PU United Kingdom tel. +44 1782 793 029 fax: +44 1782 501 721 sales@dellmeco.com www.dellmeco.com 44I DELLMECO I AODD DIAPHRAGM PUMPS...
