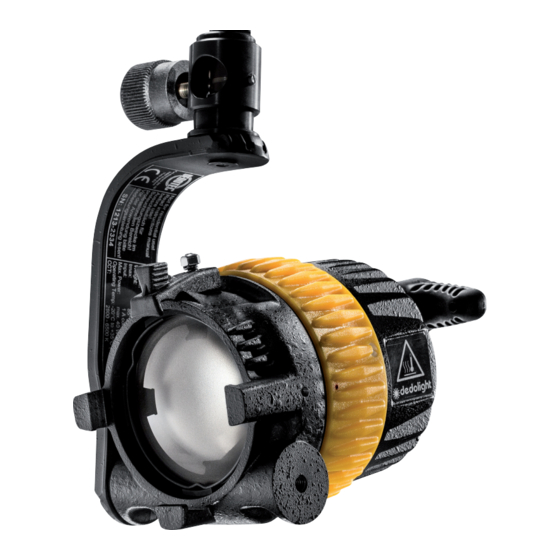

dedolight DLED4-BI Instruction Manual

Light heads and power supplies
Hide thumbs
Table of Contents

Advertisement

Quick Links

DLED 4 Series
Light Heads and Power Supplies
INSTRUCTION MANUAL
DEDOLIGHT-SYSTEMS
Carefully read all of the following information before operating the dedolight DLED
lights and their accessories.
This document contains important information regarding safety operation and
maintenance of this system.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLED4-BI and is the answer not in the manual?

Questions and answers

Related Manuals for dedolight DLED4-BI

Summary of Contents for dedolight DLED4-BI

  • Page 1 DLED 4 Series Light Heads and Power Supplies INSTRUCTION MANUAL DEDOLIGHT-SYSTEMS Carefully read all of the following information before operating the dedolight DLED lights and their accessories. This document contains important information regarding safety operation and maintenance of this system.

  • Page 2: Address

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 Address: Dedo Weigert Film GmbH Karl-Weinmair-Str. 10 80807 Munich, Germany Phone: +49 (0) 89 / 356 16 01 info@dedoweigertfilm.de www.dedoweigertfilm.de...

  • Page 3: Table Of Contents

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 Table of Content Address: ....................2 1 General ....................5 1.1 Explanation of Symbols ..............5 1.2 Limitations of liability ..............6 1.3 Copyright protection ..............7 1.4 Parts ....................7 1.5 Warranty ..................7 1.6 Customer Service ................7 2 Safety ....................7 2.1 Intended Use ..................8...
  • Page 4 DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1...

  • Page 5: General

    1 General PLEASE NOTE!!! The dedolight LED lighting system (DLED) is an instrument for professional use. Please read this manual carefully. During operation the luminaire (light head) may become hot (about 90°C). These areas are marked with stickers. Avoid long-term contact with these areas of the housing. Ensure adequate ventilation of the light head and keep a minimum distance of 0.5m from combustible materials.

  • Page 6: Limitations Of Liability

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 Special safety hints To draw attention to special Dangers in the safety instructions, the following symbols are being used. DANGER! ... Identifies hazards caused by electrical current. Ignoring such safety hints may result in severe injury or death.

  • Page 7: Copyright Protection

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 1.3 Copyright protection This manual is protected by copyright and intended exclusively for internal purposes. The transfer of these instruc- tions to third parties – including excerpts – as well as the utilization and/or disclosure of content without written consent of the manufacturer, except for internal purposes is not permitted.

  • Page 8: Intended Use

    2.1 Intended Use This device is designed and constructed exclusively for the intended use. The dedolight LED system serves exclusively the professional illumination of stages and film sets inside buildings and covered areas. The intended use includes compliance with all information contained in these instructions.

  • Page 9: Personal Requirements

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 Furthermore, the operator is responsible for ensuring that the system is always in technically perfect condition, therefore the following applies: ● The operator must ensure that the maintenance intervals described in these instructions are ob- served.

  • Page 10: Unauthorized Personal

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 2.3.2 Unauthorized personal WARNING! DANGER to life for unauthorized personnel by Dangers in the work zones. Unauthorized personnel, not qualified according to the described demands will not know particular Dangers in the particular work zone, therefore, for unauthorized personnel there is DANGER of severe injury or death.

  • Page 11: General Hazards In The Workplace

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 2.5.1 General hazards in the workplace Dirt and scattered objects WARNING! Risk by items falling down or dirt and debris lying around Dirt and debris may cause slipping and stumbling, and result in injuries. ●...

  • Page 12: Fire Hazard

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 2.5.5 Fire hazard Fire hazard WARNING! The light head can heat up during operation. Using light heads with halogen or metal halide light sources, materials located in the beam direction can possibly heat up to ignition temperature and serious injury, even death can occur.

  • Page 13: Technical Specifications And Dimensions

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 3 Technical specifications and dimensions Dimensions DLED4-D / DLED4-T / DLED4-BI Flood Spot 6.38" (162 mm) 7,91" (201 mm) 4,3" (109 mm) Technical Specifications Input DC 48 V / 40 VA / 1 A / 40 W Dimming 100 - 0 % Classification...
  • Page 14 DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 Dimensions DT4-BI DT4-BI DT4-DMX DT4-BI-DMX DT4-BAT DT4-BI-BAT 2,83" (72 mm) 1,98" (50 mm) 2,83" (72 mm) 1,98" (50 mm) DT4-DMX DT4-BI 1,98" (50 mm) 2,83" (72 mm) DT4-BAT-AB / DT4-BAT-XLR DT4-BI-BAT-AB/DT4-BI-BAT-XLR 2,83"...

  • Page 15: Other Variations Of Dled4 Light Heads

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 3.1 Other variations of DLED4 light heads For studio use (SE - Studio Edition). With power supply attached to yoke. Versions with manual control or DMX control available. DLED4SE Flood Spot...

  • Page 16: Operating Elements

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 4 Operating elements Light Head Tripod adapter for stands with 16 mm (5/8“) studs Swiveling Light Head Yoke Swiveling latch to hold front-end accessories. 3 fixed holders / receptacles for front-end accessories, like barn door, imager / projection attachment, filters and light...
  • Page 17 DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 Electronic Transformer DT-BAT (Battery Version) Brightness controls [DIM] Cable to light head DLED4- D/T, DLED4-BI Loop for hanging power supply on lighting stand Color controls [Bicolor version only] Power Switch Battery cable Display for Dimming and...

  • Page 18: Handling Light Head

    More detailed description in chapter „6 Handling Power Supplies“ on page 19. Focusing The dedolight DLED4 LED light fixture offers a great variation of beam angle and intensity - 60° to 4° (1:20). The dual lens, aspherics optical system offers even light distribution throughout the entire focusing range.

  • Page 19: Handling Power Supplies

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 6 Handling Power Supplies For AC ballasts: When power supply is switched off, connect the ballast and the light head with 5-pin XLR connector . Then connect the input cable of the ballast to the AC mains.

  • Page 20: Maintenance

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 7 Maintenance Isolate electrically before re-lamping. CAUTION - Hot LED module Certainly, the LED module is not meant to be replaced by the user, and standard provides for its replacement to be done by the manufacturer, his service representative or similar qualified person.

  • Page 21: Detailed Description For Dmx Usage

    DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 DMX BALLAST 11/2018 8 Detailed description for DMX usage DMX Manual for DT(x) DMX Ballasts Power ballast page(s): 1 Change DMX address page(s): 2 Manual operation page(s): 3,4, 6 Manual operation BICOLOR page(s): 5 Change 8/16 Bit operation...
  • Page 22 DMX BALLAST 11/2018 DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 2) Change DMX address (DMX mode): Push both yellow buttons next to the display at the same time. Numbers in display will flash for a couple of seconds. While flashing, you may change the DMX address by pushing the yellow UP or DOWN button.
  • Page 23 DMX BALLAST 11/2018 DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 3) MANUAL mode (no DMX functionality): Push both yellow buttons next to the display at the same time. Numbers in display will flash for a couple of seconds. While flashing, push the yellow DOWN button until you are below “number 001”.
  • Page 24 DMX BALLAST 11/2018 DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 When manual mode is selected, both knobs on the top black cap are active. Turning the DIMMING-knob, you can adjust the Intensity between 0% and 99%. This will be displayed as numbers “d.00”...
  • Page 25 DMX BALLAST 11/2018 DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 3a) Bicolor ballasts only: Turning the COLOR knob will let you control the color temperature between “c.27” (2700 Kelvin) and “c.67” (6700 Kelvin). Dedo Weigert Film GmbH • Karl-Weinmair-Str. 10 • D-80807 Munich Tel.: +49 (0)89 - 356 16 01 •...
  • Page 26 A single push of either the up or down button will bring you back to DMX address 512 (left/down Button) or DMX address 001 (right/up button). If ballast is switched off, all the settings (color, intensity, DMX-address) are stored. This manual is valid for following dedolight ballasts: DT4(-BI)-DMX DT7(-BI)-DMX*...
  • Page 27 DMX BALLAST 11/2018 DLED4 Series • Light Head and Power Supply • Instruction Manual • V1.1 4) To change between 8 Bit and 16 Bit operation, press the ↑ - button (up arrow) and hold it, simultaneously press the ON switch. The display shows a flashing “d 8” or “d 16” – for 8 Bit or 16 Bit modes respectively. Mode options can be changed by pressing the ↓...
