Giovenzana HP05 Instruction Manual

Strawinskylaan 1105
1077 XX Amsterdam, The Netherlands
IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . 2
TECHNICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . 3
VERSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
MT-HP-EN / 11.10.2021
HP
PENDANT STATION
Before use, read this booklet carefully to
acquaint yourself with the features of the
product. This booklet is an integral part of
the product and therefore must be kept until
the product is dismissed.
Giovenzana International B.V. reserves the
right to change the features and data shown
in this document at any time and without
notice. This document cannot therefore be
considered a contract with third parties.
HP pendant stations are designed and
manufactured according to IEC international
standard and EN European regulations.
Improper installation or tampering can cause
serious damage to people and property,
therefore installation and maintenance must
be carried out by specialized and authorized
personnel.
The device is not intended for use in
environments with a potentially explosive
atmosphere or in the presence of corrosive
substances and in salt fog.

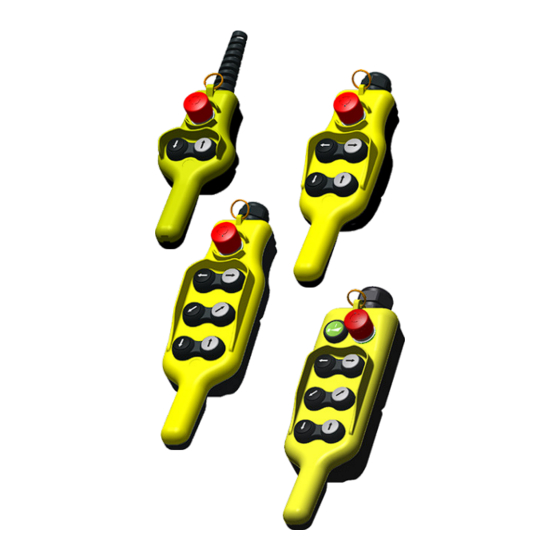

Ergonomic pendant stations for small hoist:
• Bi-directional, mechanically interlocked
• IP65 double insulation IEC / EN 60529
• Laser engraved symbols comply with
EN 60204-1, FEM 9.941
• Shock proof and heat resistant
• Single speed or two speed motor
• Direct motor control 1 kW - 1 speed
• HP03 and HP05 available in UL/CSA
requirements
• Contact blocks with spring terminals
Rev. 4
EN
instruction manual
