Summary of Contents for Truper 15006

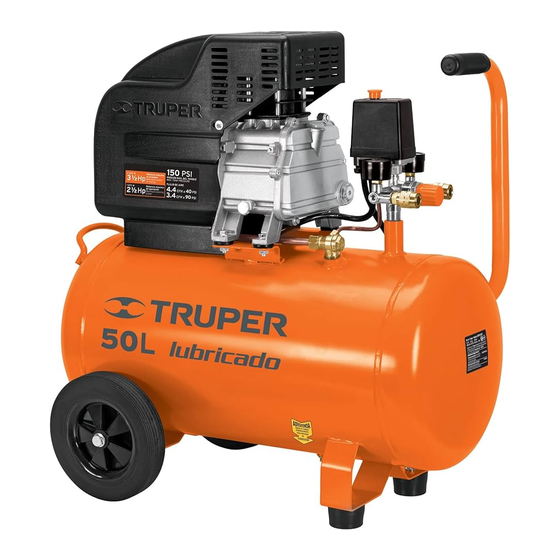

- Page 1 Manual Lubricated air 116 PSI compressor Pressure Applies for: Codes Models 15006 COMP-25LT 15007 COMP-50LT COMP-50LT COMP-25LT Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical Data Power Requirements To gain the best performance of the tool, prolong the duty life, General power tool safety warnings make the Warranty valid if necessary, and to avoid hazards Safety Warnings for Pneumatic of fatal injuries please read and Compressors understand this Manual before using the tool. -
Page 3: Technical Data
Technical Data COMP-25LT COMP-50LT Code 15006 15007 Description Lubricated air compressor Voltage 127 V Frequency 60 Hz Power Rated: 2 Hp Maximum: 3 Hp Rated: 2-1/2 Hp Maximum: 3-1/2 Hp Maximum Pressure 116 PSI Air Continuous Flow 4.4 CFM - 40 PSI 3.4 CFM - 90 PSI... -
Page 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Pneumatic Compressors
Safety Warnings for Pneumatic Compressors Before using the compressor When using the compressor CAUTION CAUTION • The pressurestat produces sparks when • Do not aim nozzles, sprayers or the air working. If sparks make contact with gasoline vapors or jet towards people or animals. WARNING other solvents they can ignite causing fire or explosion. -
Page 6: Parts
Parts Switch Pressurestat Transportation Handle Regulated Pressure Gauge Outlet Regulated Air Outlet Valve Oil Drain Oil Level Spy Window Check Valve Pressure Release Valve Air Outlet Valve Tank pressure (Quick Connection) gauge Tank Drain Valve Motor Transportation Out Pressure Filter Cover Handle Regulator... -
Page 7: Preparation
Preparation • The air compressor is used to supply energy to pneumatic tools as versatile as power tools are. The tools can be used to drill, screw, hammer, rivet, staple, chisel, polish, blowtorching, cleaning, painting etc. • The compressor functions are completely automatic and controlled with the pressurestat. It stops the motor when the tank’s pressure has reached the maximum level. -
Page 8: Start Up
Start Up Switch ON and OFF Operation • Before operating the compressor set it onto a flat, • Connect one end of the air hose into any of the leveled and solid surface, well ventilated and away from compressors outlets (H). flammable objects like curtains, etc. -
Page 9: Maintenance
Maintenance Oil Change • After the first 50 hours’ operation change oil. Remove the drain cap (A). Set the cap back and fill-up with oil as indicated in page 7. The later oil changes shall be carried out every 150 hours’ work. Cleaning and Care •... -
Page 10: Troubleshooting
Troubleshooting Problem Cause Solution The motor is not • No power. • Be sure the cable is connected. Check the fuse-circuit switch. working. • Fuse is blown . • Replace the blown fuse. • Thermal switch is • Press the thermal switch button to restart. activated. -
Page 11: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800-018-7873 to get information about the nearest Service Center. -
Page 12: Warranty Policy
It includes the costs of transportation of the product that derive from its fulfillment of its service network. Phone number 800-018-7873. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
