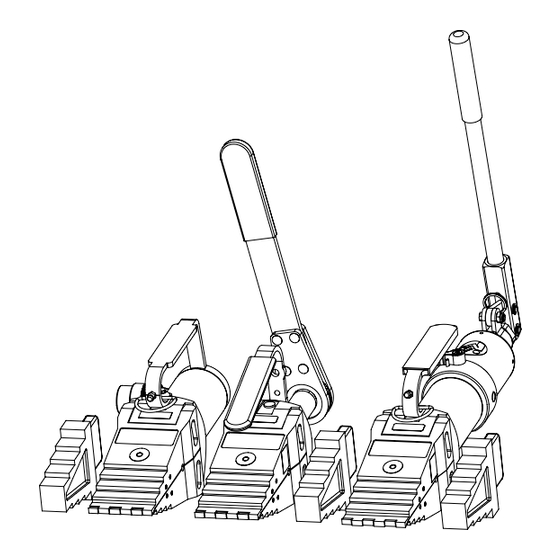

- Page 1 Hydraulic/ Mechanical L4388 Rev. C 10/21 Wedge Spreader FSM8 FSH14 FSC14 ENGLISH [EN] Instruction Sheet...
-
Page 2: Table Of Contents
이 지침 시트의 다른 언어 버전은 www.enerpac.com. Ga voor de overige talen naar www.enerpac.com. For alle andre språk henviser vi til www.enerpac.com. Inne wersje językowe można znaleźć na stronie www.enerpac.com. Информацию на других языках вы найдете на сайте www.enerpac.com. 如需其他语言， 请前往 www.enerpac.com. L4388... -
Page 3: Introduction
CE and UKCA. and gasket replacement. The Enerpac wedge spreader FSM8 is a manual operated Enerpac declares that the product(s) have been tested tool, and is actuated by a 22mm (0.87in) ratchet spanner and conforms to applicable standards and the product(s) are compatible to all EU and UK Requirements. - Page 4 • Do not overload equipment. The risk of hydraulic damage can cause hose failure. overloading can be minimized by using the Enerpac Hand Pump, which has a factory-set safety valve • Do not lift hydraulic equipment by the hoses or preventing the safe working pressure being exceeded.
-
Page 5: Operating Instructions
3.0 OPERATING INSTRUCTIONS Fig. 4 SB1,Safety block It is recommended that two wedges be used in tandem. This will give an even spread to the joint. The wedges should be set at 180˚ apart (see fig. 1). Fig. 1 A fresh hold on a new step can then be chosen NOTICE to open the joint further if required. -
Page 6: Use Of Stepped Blocks
31 mm (1.22") 4.0 USE OF STEPPED BLOCKS Fig. 6B Wedge head dimensions while using the FSB-1 stepped block(s).(cont) The maximum opening of the wedge spreaders can be increased from 61 to 81mm (2.40 to 3.19in) when used in combination with the optional FSB1 stepped blocks (see 25 mm (0.98") fig. -
Page 7: Wedge Use In Tandem
Attach one end of the lanyard to the tool using the supplied shackle with the FSH14 or FSC14 (see fig. 8), for the FSM8 use the top hole located on the handle (see fig. 9). The other end of the lanyard should be fixed to a secure point close to the work-site using an appropriate shackle. -
Page 8: Inspection, Maintenance & Storage
Handle (No. 7) for easy storage. The Grease Nipple • For repair service, contact an Enerpac Authorized should be removed from the Handle and inserted, in turn, Service Center. Inspection and repairs should be... - Page 9 Follow Steps 6 through 1 above. Please note when Enerpac Authorized Service Center for inspection. reassembling that Loctite 638 Retaining Adhesive (or equivalent) should be used when reassembling Nut (No.
-
Page 10: Troubleshooting
Inspect the tool for oil leaks on the reservoir, possibly indicative of a perished bladder. Contact an approved Enerpac Contact Center for repair. The inlet check-valve or intermediate Dismantle the check valve, free and valve ball has become stuck. -
Page 11: Dimensions/ Specifications
CLOSED OPEN 328 mm (12.88”) 290 mm (11.39”) when fully open when closed 6 mm (0.24") 31 mm (1.22") Fig. 15a FSM8 CLOSED OPEN 275 mm (10.80”) when fully open 290 mm (11.39”) when closed 61 mm (2.39") 36 mm (1.41") - Page 12 Fig. 17a FSC14 CLOSED OPEN 468 mm (18.24”) 508 mm (20.0”) when closed when fully open 6 mm (0.24") 33 mm 37 mm (1.30") (1.45") 64 mm (2.52") Fig. 17b Handle Rod 304 mm (11.9") 12 mm 20 mm Ø16 mm (0.5") (0.8") (0.6")
