Sharp R1875T Supplemental Service Manual

SUPPLEMENTAL SERVICE MANUAL
OVER THE RANGE MICROWAVE MODELS
This manual is to be used for models with the starting serial number
R-1871-T / R-1872-T / R-1874-T / R-1875-T

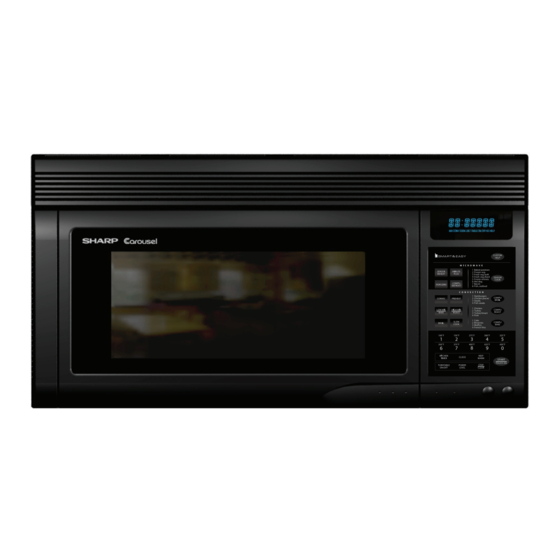

R-1871-T pictured
R-1874-T pictured
This is a supplemental Service Manual for Models R-1871-T, R-1872-T, R-1874-T and R-1875-T starting
with Serial Number 511112. Use this supplemental manual together with these base models for complete
operation, service information, etc.
In the interest of user-safety the unit should be restored to its original condition and only parts identical to those specified should
be used.
WARNING TO SERVICE PERSONNEL:
This service manual is intended for use by persons having electrical and mechanical training and a level of
knowledge of these subjects generally considered acceptable in the appliance repair trade. Sharp Electronics
Corporation cannot be responsible, nor assume any liability, for injury or damage of any kind arising from the
use of this manual.
Microwave ovens contain circuitry capable of producing very high voltage and current. Contact with the
following parts may result in a severe, possibly fatal, electrical shock. (High Voltage Capacitor, High Voltage
Power Transformer, High Voltage Rectifier, Heat sink, Magnetron, and High Voltage Harness etc..)
SHARP ELECTRONICS CORPORATION
This document has been published to be used for after sales service only. The contents are subject to change without notice.
R1872 pictured
R-1875-T pictured
