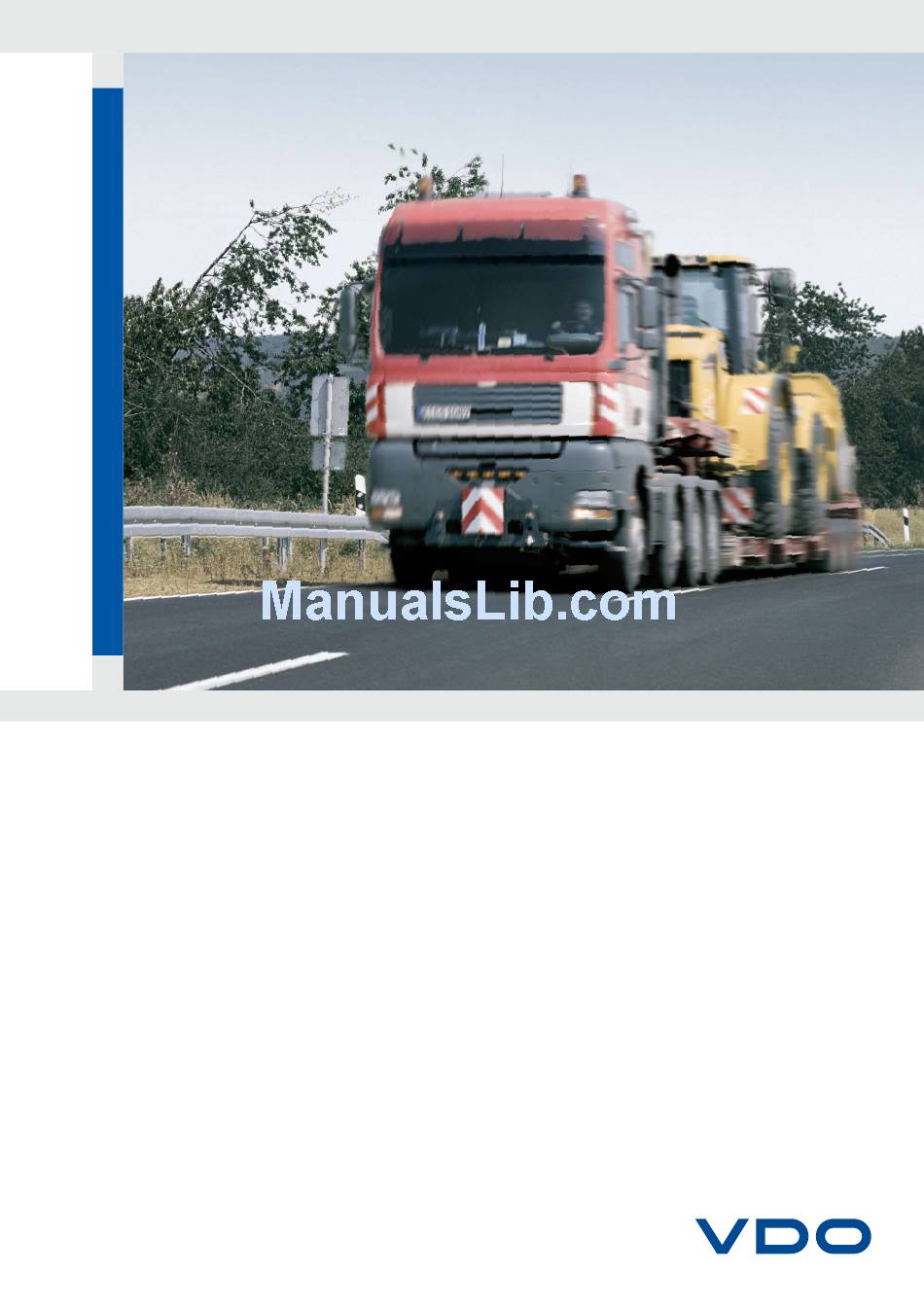

- Page 1 VDO ViewGate – gateway- instrumentation for commercial and special-purpose vehicles • Comprehensive display options • Ergonomic • Operating options • Flexible presentation according to preference...
- Page 2 VDO ViewGate even in cabs that are generally crowd- machine’s hydraulically-controlled equipment either ed or where there is no room to install larger technical while driving, upon arrival, or alternate between driving systems.
- Page 3 HMI technical basics Highly ergonomic Seen from a technical point of view, the VDO ViewGate Thanks to vast flexibility in presentation forms, the VDO is a graphics-capable computer controlling and feed- ViewGate enables drivers to choose visual displays ing data through an 800 x 480 pixel resolution TFT dis- that are particularly well-suited to the corresponding play and a 152.4 x 91.4 mm (7 inch) touchscreen.
- Page 4 Brilliance behind a screen: VDO’s ViewGate instrumentation exploits the strengths of TFT-technology. VDO ViewGate’s graphics capability features the conventional look of analogue dials as well as graphic display formats. Examples of changing display options on the same display screen as situations demand.
- Page 6 VDO – A Trademark of the Continental Corporation The information provided in this brochure contains only general descriptions or performance characteristics, which do not always apply as described in case of actual use or which may change as a result of further development of the products. This information is merely a technical description of the product. This information is not meant or intended to be a special guarantee for a particular quality or particular durability.
