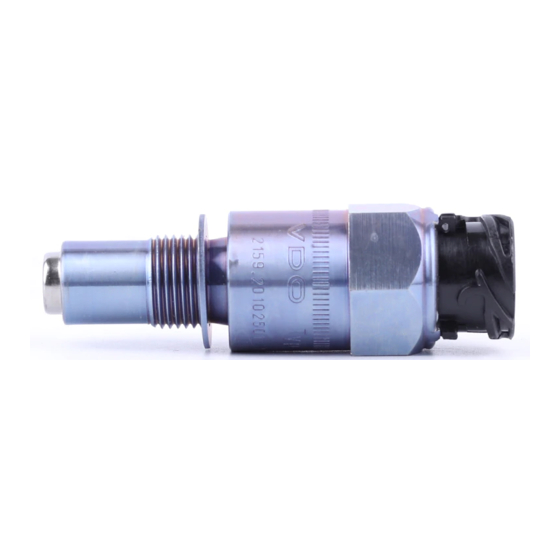

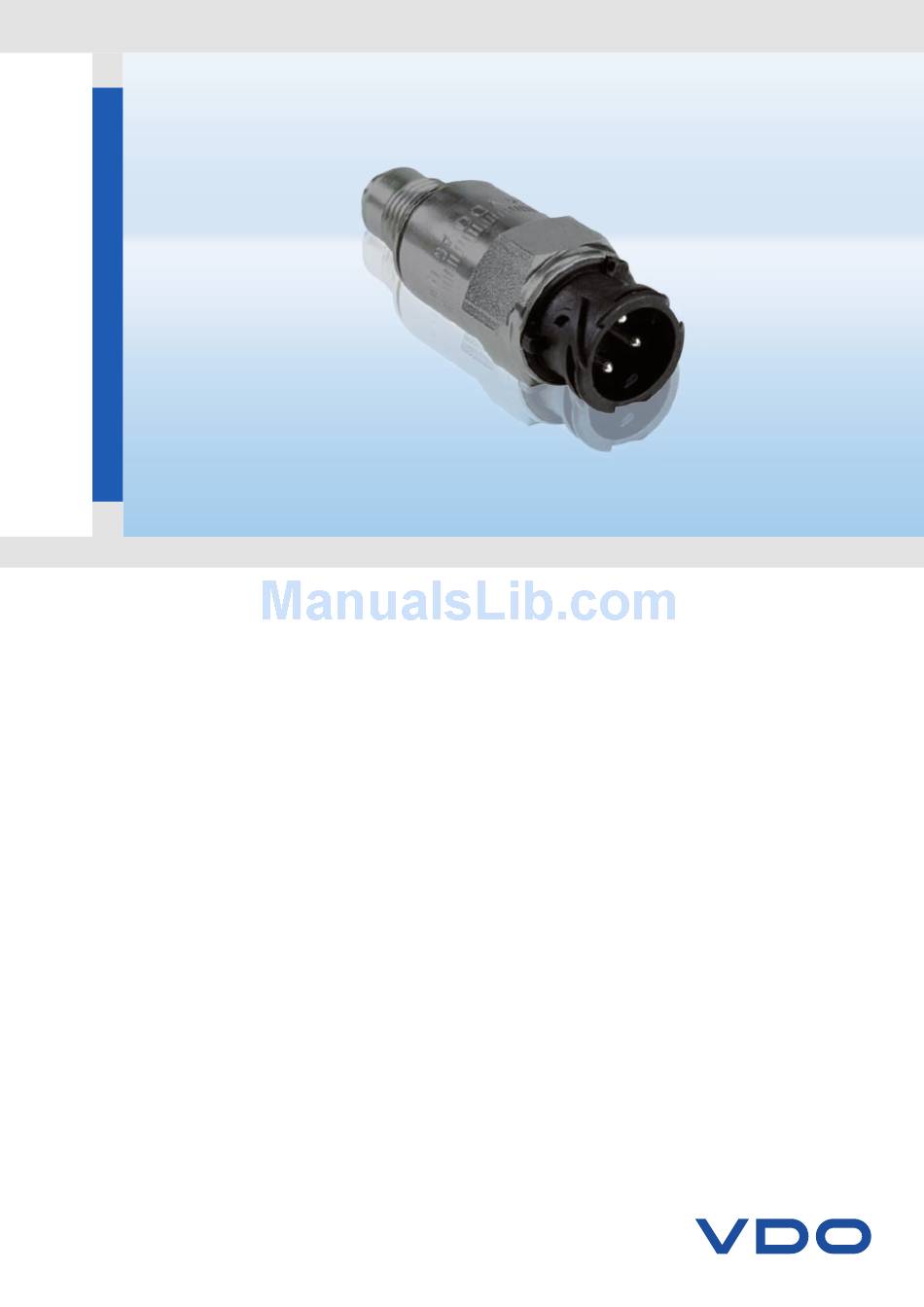

Sender Unit
2159-20 (stat.)
The Sender Unit, integrated in the gearbox, transfers
the number of revolutions of a gearwheel into electri-
cal pulses.
The revolutions are captured by means of a Hall IC.
The pulses supplied by the Hall IC are used by ta-
chographs and on-board computers for capturing
the distance covered and the road speed.
When using the integrated sender unit the speedo-
meter shaft connection is no longer necessary.
2159-20 is designed for heavy-duty purposes!
Features
• Touch-sensitive measuring procedure (Hall IC)
• Integrated in the gearbox
• Static measuring (zero-speed recognition)
• Double pulse (inverted)
• Can be sealed
• Can be directly connected to the vehicle
electric system
• Recognition of sense of rotation (2 sensors)
• 7 different lenghts to comply with the
different types of gearboxes
Applications
• For tachographs/EC tachographs KTCO 1318,
FTCO 1319 and MTCO 1390 NEC
• Generally for devices requiring an electrical pulse
(double pulse, inverted) for road speed and/or
distance measuring.
www.vdo.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VDO SENDER UNIT 2159-20
Summary of Contents for VDO SENDER UNIT 2159-20
- Page 1 Sender Unit 2159-20 (stat.) The Sender Unit, integrated in the gearbox, transfers Features the number of revolutions of a gearwheel into electri- • Touch-sensitive measuring procedure (Hall IC) cal pulses. • Integrated in the gearbox The revolutions are captured by means of a Hall IC.
-
Page 2: Specifications
Torquet (wrench size) max. 50 Nm (SW 27) Weight approx. 80 to 160 g Dimensions approx. 16 x 19,8/25/35 (Ø x L in mm) 63,2/90 Continental Trading GmbH | Heinrich-Hertz-Strasse 45 | 78052 Villingen-Schwenningen | Germany E-mail: tachograph@vdo.com | www.vdo.com...
