Summarization of Contents
Safety Information
General Electrical and Product Safety
Observe electrical precautions, keep product away from children, and check for damages.
Installation and Grounding Requirements
Ensure electrical installation suitability, local regulations, and proper grounding for safe operation.
Maintenance, Modifications, and Cleaning
Only qualified personnel for repairs. Avoid modifications. Handle irregularities by contacting support.
Solar Panel Handling and Environment
Handle solar panels with care, avoid strong winds, and check building codes.
How to Connect the System
Mounting Bracket Installation
Follow the mounting bracket installation guide and attach it to the solar panels.

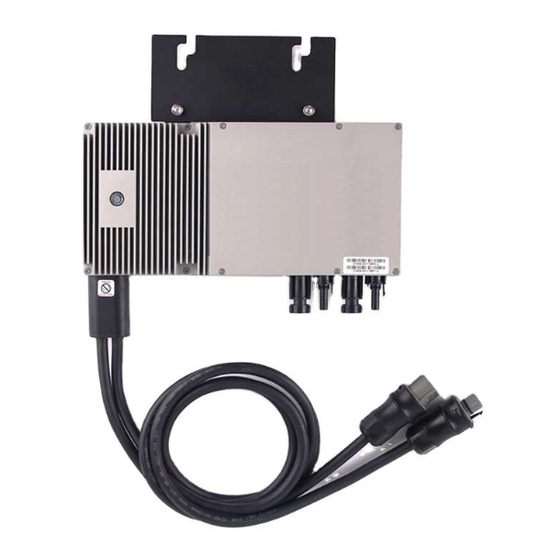

Inverter Mounting and Placement
Mount the micro inverter securely to the bracket, away from flammable materials and direct sunlight.
Connecting Solar Panels to Inverter
Connect the MC4 plug cables from the solar panels to the micro inverter, minding polarity.
Connecting to Power Outlet
Connect the Schuko power plug to the power outlet and turn on the power.
Setting up WI-FI Connection
Initial LED Indicator Check
Check the micro inverter LED light; it should flash red every 1 second.
Connecting to Micro Inverter Wi-Fi
Connect your computer or phone to the micro inverter's Wi-Fi network using the provided password.
Configuring Home Wi-Fi Network
Access inverter settings via URL, log in, search for your Wi-Fi, and enter the password.
Register the Micro Inverter on NEPViewer
User Registration Process
Visit NEPViewer website, register your account by filling in personal and system details.
Adding a New PV Plant Site
Add your solar plant site by entering email, country, location, and inverter serial number.
Using the NEPViewer App
Download the NEPViewer APP, log in with registered credentials to monitor energy production.
