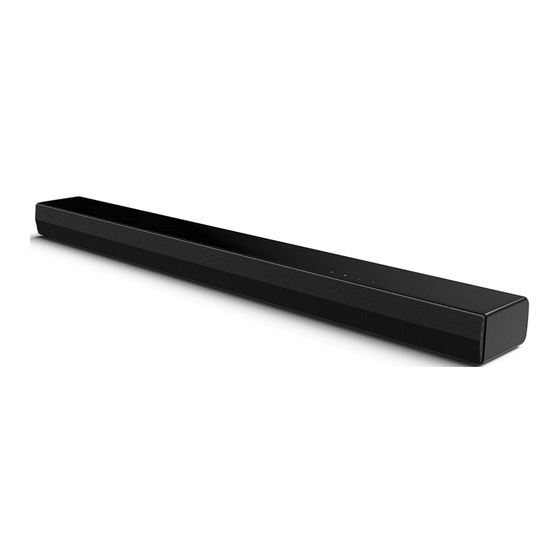

- Page 1 2.1ch Sound Bar built-in Subwoofer TB122B Instruction Manual...
-
Page 3: Table Of Contents
Contents Important Safety Instructions ......................4 Safety .........................................4 Caution ........................................5 Warning ........................................5 What’s in the Box ..........................6 Identifying the Parts ........................7 Main Unit ........................................7 Remote Control .....................................8 Preparations ............................. 8 Prepare the Remote Control ................................8 Install/replace the batteries ................................8 Precautions Concerning Batteries ..............................8 Placement and Mounting ........................ -
Page 4: Important Safety Instructions
1. Important Safety Instructions If the provided plug does not fit into your CAUTION outlet, consult an electrician for replacement RISK OF ELECTRIC SHOCK of the obsolete outlet. DO NOT OPEN Protect the power cord from being walked on or pinched particularly at plugs, convenience CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 5: Caution
Bluetooth SIG,Inc. and any • Do not attempt to clean the unit with use of such marks by Edenwood is under license. chemical solvents as this may damage the Other trademarks and trade names are those of their finish. -
Page 6: What's In The Box
2. What’s in the Box Remote control / Main unit AC power cord × 1 AAA batteries x 2 Instruction manual Wall mount kit HDMI cable 3.5mm-3.5mm audio cable • Power cord quantity and plug type vary by regions. • Images, illustrations and drawings shown on this User Manual are for reference only, actual product may vary in appearance. -
Page 7: Identifying The Parts
3. Identifying the Parts 3.1 Main Unit (ON/OFF) button AC~ Socket Press and hold this button for 3 seconds Connect a power cord. to switch the unit between ON and AUX Socket Standby mode. Connect to an external audio device. + / －... -
Page 8: Remote Control
3.2 Remote Control Switch the unit between ON and STANDBY mode. (SOURCE) Select the play function. + / － (VOL) Increase/decrease the volume level. BASS +/ － Adjust bass level. (MUTE) Mute or resume the sound. Skip to previous/next track in Bluetooth/USB mode. -
Page 9: Placement And Mounting
5. Placement and Mounting 5.1 Placement If your TV is placed on a table, you can place the unit on the table directly in front of the TV stand, centered with the TV screen. If your TV is attached to a wall, you can mount the unit on the wall directly below the TV screen. -
Page 10: Connections
6. Connections Remove the protective cap of the OPTICAL socket, then connect an OPTICAL cable to the TV’s OPTICAL OUT socket and the OPTICAL 6.1 Use the HDMI ARC Socket socket on the unit. The ARC (Audio Return Channel) function allows Tips: you to send audio from your ARC- compliant TV to your soundbar through a single HDMI connection. -
Page 11: Basic Operation
7. Basic Operation 7.6 Select Equalizer (EQ) Effect Press the EQ button on the remote control to 7.1 Standby/ON select your desired preset equalizer: NEWS / MOVIE / MUSIC. When you first connect the main unit to the mains socket, the main unit will be in Standby mode. 7.7 Adjust the Volume •... -
Page 12: Usb Operation
• The player will also be disconnected when your device is moved beyond the operational range. Activate your Bluetooth® device and select the search mode. “TB122B” will appear on your Bluetooth® device list. T B 1 2 2 B S e l e c t “... -
Page 13: Troubleshooting
11. Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. Problem Solution No power • Ensure that the AC cord of the apparatus is properly connected . •... -
Page 14: Specifications
12. Specifications Brand Edenwood Model ×××××× Soundbar Power Supply AC 100-240V~ 50/60Hz Power Consumption < 0.5 W (StandBy) Speakers Impedance 8Ω x 2 500mA Hi-Speed USB (2.0) / FAT32 / FAT16 32G (max) , MP3 Dimension (WxHxD) 944 x 64 x 106 mm... - Page 16 TB122B_Edenwood_IFU-EN_V0.2_220418...
