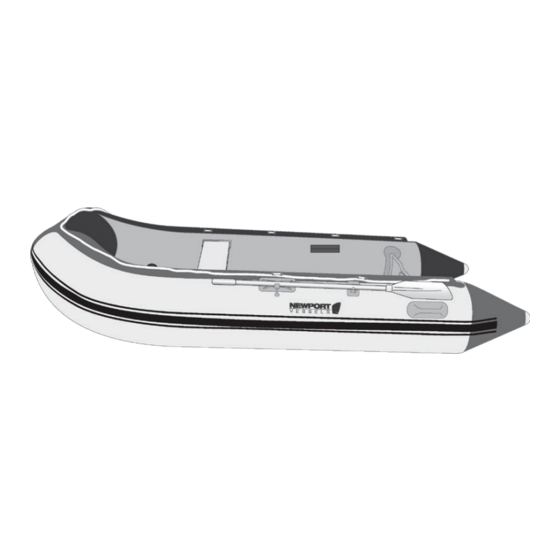

- Page 1 Owner’s Manual and Safety Instructions WARNING WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WWW.NEWPORTVESSELS.COM Toll-free: (8660 721-0002...
- Page 3 Dear Valued Customer, Congratulations! You are now the proud owner of a Newport inflatable boat. This full owner’s manual can be downloaded from the Newport website (www. newportvessels.com/downloads). In addition, we invite you to visit the Newport “Video Library” or “FAQ’s”. We have put together an extensive collection of short video tutorials as well as answers to FAQ’s.
-
Page 5: Table Of Contents
CONTENTS Boat Models & Specs .................. Conformity Declarations ................Parts ........................Assembly ......................Assembly Preparation ................ Seat Installation ..................Finish Inflation ..................Oar Assembly ..................Disassembly ................... Air Pressure Guidelines ..............Air Chamber Failure ................Operation Information ................Operation Safety ................. Safety Guidelines: .................. -
Page 6: Boat Models & Specs
1. BOAT MODELS & SPECS AIR FLOOR INFLATED INFLATED CHAMBERS WEIGHT LENGTH POWER LOAD PERSONS MODELS WIDTH CARMEL 7'7" 4.5' 3 + 1 80 lbs 4 HP 805 lbs SEASCAPE 3 + 1 98 lbs 10 HP 1067 lbs SANTA CRUZ... -
Page 7: Assembly
4. Assembly Assembly Preparation LAYOUT ON FLAT SMOOTH SURFACE Find a smooth flat surface. Remove any sharp objects from the flat surface where the boat will be assambled and inflated. Unfold and spread out the boat flat. Locate the inflation valves which are LOCATE INFLATION tagged with a bright orange flag. -
Page 8: Seat Installation
NOTE: When using the boat for the first time, fully inflate it by attaching the foot pump to each of the hull chamber valves, one at a time, and when pumping, ensure that a balance of pressure between the chambers is maintained until the boat has been fully inflated. -
Page 9: Finish Inflation
Finish Inflation Finish inflating thr air chambers one after the other in order to maintain equal amount of air. Install valve caps. Inflate the keel and screw on valve cap. NOTE: DO NOT inflate any chamber to full capacity at one time. NOTE: Make sure the plastic stem is in the lock position. -
Page 10: Air Pressure Guidelines
Cleaning Procedures Air Chamber Failure Rinse your boat, after each use. At Should an air chamber get punctured, shift the weight to the the end of a season, wash it completely with soapy water or with opposite side. Prevent, as much as possible, further air leakage (by a mild detergent. -
Page 11: Safety Guidelines
3. A boat should not be operated by with the general rules of the waterways an individual under the influence of and the local water conditions before drugs or alcohol. taking a boat out. 4. Weight must be distributed evenly. 12. -
Page 12: Aspects Of Environmental Protection
Loading floor. We will take no responsibility if this warning is disregarded. DO NOT EXCEED THE WEIGHT No bow riding: Bow riding is CARRYING CAPACITY INDICATED illegal in most areas and is ON THE BOAT IDENTIFICATION extremely dangerous. Be PLATE. especially careful when Each person in the boat should wear a docking: arms and legs may be... -
Page 13: Towing - Anchoring - Mooring
Towing - Anchoring - Storage Mooring After use, the boat and all components should be washed with The inflatable boat MUST BE EMPTY a mild soap and rinsed with fresh when it is towed by another boat. water. Dry all parts before storing in The towing line should be secured the carrying bag. -
Page 14: Repair Procedure
7. REPAIR PROCEDURE Designation of the boat: Inflatable Boat. SMALL TEARS, CUTS, AND Boat Type: The Seascape and The PUNCTURES Santa Cruz. Main Dimensions: (9’x5’) and (10’x5’) The repair of a small leak or puncture Design Category: C (designed for less than 1/2 inch (12.7mm) can be voyages in coastal waters, large bays, done with a round patch, 3 inches... -
Page 15: Glossary Of Terms
9. GLOSSARY OF TERMS VALVE RETAINER VALVE STEM HULL SEAT MOUNT TRANSOM INFLATION VALVE ATTACHMENT GRAB BAR FIXTURE OAR KEEP D-RING NOTE: The one-way valve makes inflation easy. The inner valve design allows air to flow into the hull but not out. Make sure the plastic valve stem is in the lock position for inflation, by pushing it in and turning clockwise. - Page 16 sales@newportvessels.com Toll-free: (866) 721-0002 8:30 am - 4:30 pm PT...
