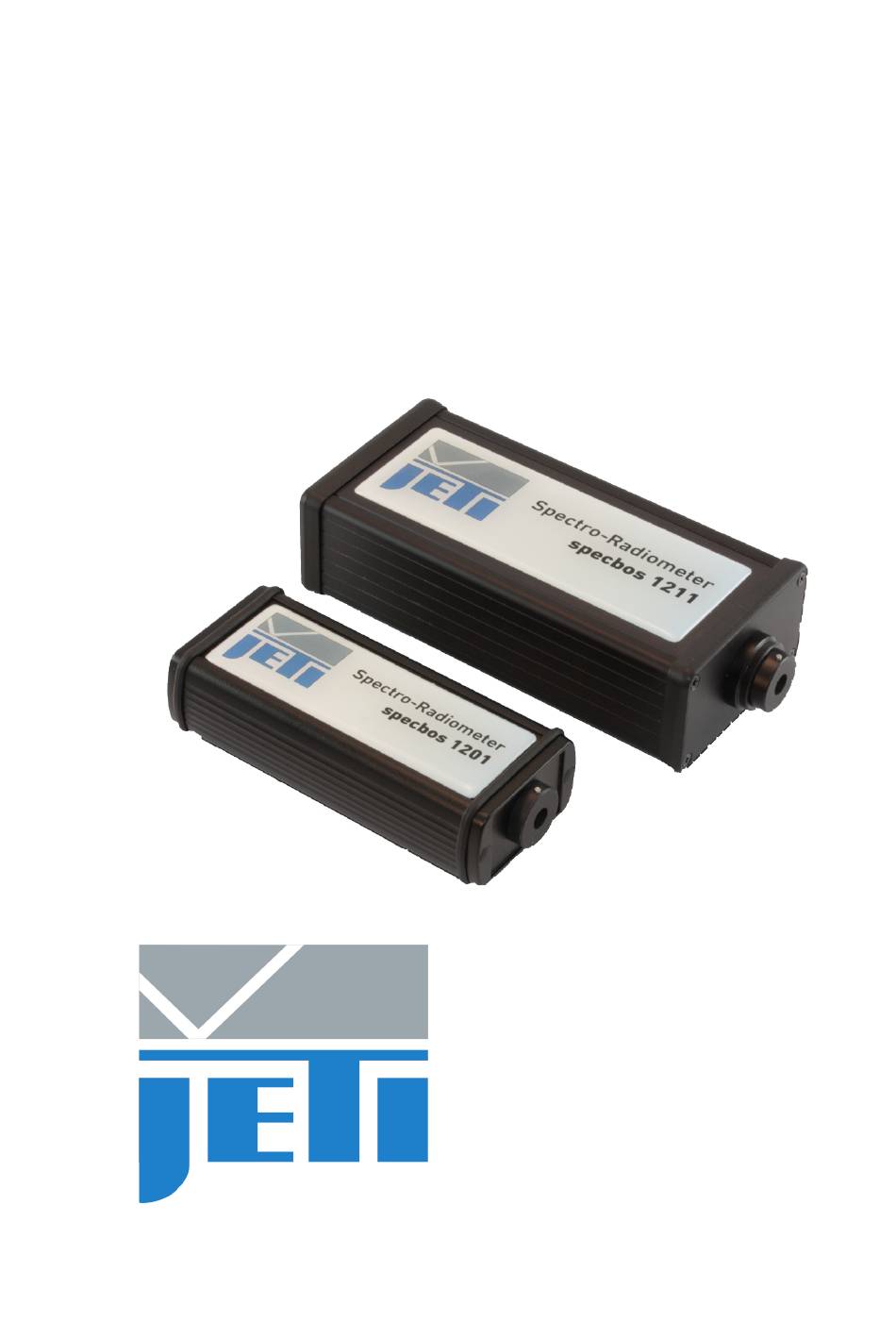

- Page 1 Operating Instructions JETI Spectroradiometer specbos 12x1 specbos 1211-2 JETI Technische Instrumente GmbH Göschwitzer Straße 48 D-07745 Jena Tel.: +49 3641 23292 00 Fax: +49 3641 23292 01 E-mail: sales@jeti.com Internet: www.jeti.com...
- Page 2 Operating Instructions JETI spectroradiometer specbos Document Revision 707 Copyright © 2021 JETI Technische Instrumente GmbH...
-
Page 3: Table Of Contents
6.4 License Agreement ....... 29 7 Service Copyright © 2021 JETI Technische Instrumente GmbH... - Page 4 Operating Instructions JETI spectroradiometer specbos Document Revision 707 Copyright © 2021 JETI Technische Instrumente GmbH...
-
Page 5: Introduction
Both instruments can measure in Luminance and Illuminance mode. Acquisition and analysis of data can be done by the PC software JETI LiVal. The con- nection to the PC works via USB interface (virtual COM port). It is also possible to communicate directly with the instrument without the PC program. - Page 6 • Basic device with protection cap • Cosine corrector head-piece • Operating instructions • Tripod • Transport box • USB flash drive with PC software JETI LiVal, DLLs, operating instructions and firmware command list • USB cable • Trigger connector Additionally: specbos 1201/ 1211 •...
- Page 7 • Additional focusing optics (see chapter 5.2.3 ‘Focusing optics’, page 25 for types and mechanical dimensions). Optional: • Additional caps with filters or diffusers with attenuating filters to shift the measuring range of specbos 1201 and specbos 1211-2 to higher intensities. Copyright © 2021 JETI Technische Instrumente GmbH...
-
Page 8: Security Recommendations
• Never touch the glass window of the device, nor the diffusers, glasses or filters contained in the additional equipment. • If any mechanical damages on the device are detected, contact JETI please. specbos 1211-2-BT Batteries are to be disposed of properly in accordance with statutory provisions. Never open or puncture them, nor throw them into fire. -
Page 9: Drivers Under Windows 8
3.2 How to Uninstall This chapter describes how to uninstall old driver software. Note: You must have administrator privileges to uninstall the device driver. Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 10: How To Determine Driver Version
For this procedure, the device, which was already installed, must be connected to the computer. JETI USB driver consists of two parts, a device driver and a virtual COM-port driver. For the device to function correctly, the versions of the two drivers need to be the same. -
Page 11: How To Open The Device Manager On Windows 8/ 10
There are several ways to open the Device Manager, depending on the Windows version and the settings of Windows. The easiest of them is: • Press on the keyboard. Break • Click Device Manager on the left side of the appearing window. Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 12: Installation And Operation Of Hardware
1211-2 has a separate power connector, in addition to the USB connector. 4.2 specbos 1201 The instrument is switched on when the USB connection to the PC is established. Attention: The USB driver must be installed at first without connected instrument. Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 13: Specbos 1211-2
1211-2-BT can be used via Bluetooth or USB, alternatively. The package includes a Bluetooth antenna. Please connect it to the instrument as shown below. Press the rear side switch until it turns blue, to switch on the device. Copyright © 2021 JETI Technische Instrumente GmbH... - Page 14 The software guides you through the installation. • Click on the Bluetooth symbol to start the installation process. • Click Add a Device • Click , select JETI specbos 1211 and click Next. Continue Copyright © 2021 JETI Technische Instrumente GmbH...
- Page 15 Operating Instructions JETI spectroradiometer specbos Document Revision 707 • Click Enter the device’s pairing code and then Next • Insert the device pairing code: 0000 and click Next Copyright © 2021 JETI Technische Instrumente GmbH...
-
Page 16: Battery Handling
• Long pressing if the device is switched on: Turn off the device. If the device is switched off and connected to power supply or to PC via USB: Short flashing - battery is being charged. Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 17: Network Settings For Specbos 1211-2-Lan
Remark: Connect the device with your PC to charge the battery via USB. If the device is operated by JETI LiVal software, battery status can be seen in the title bar of the window and through menu . If battery is low, corresponding... - Page 18 • After clicking on Save a message appears that the device must be restarted. • If no other red exclamation mark is visible, the device is configured properly to work in your LAN. Copyright © 2021 JETI Technische Instrumente GmbH...
-
Page 19: Installation Of Rs Device Specbos 1211-2-Rs
Pin out (view to female connector of the device): Lamp out 5 TTL signal (flash lamp trigger) Measuring trigger input 1, 2, 4, 6, 7 not used Ground A suitable male connector is included in the device’s delivery package. Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 20: External Control Of The Measurement
This is done with the falling edge of the signal. Both triggering versions act similarly as pressing the green button of the Measurement JETI LiVal software. See the firmware description to change the settings. Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 21: Technical Data
Luminous intensity cond. B 0 03 to 100 specbos 1401 Measuring range sphere: 0 03 sphere: 0 02 Luminous flux specbos 12x1 sphere: 0 1 sphere: 0 04 Viewing angle in luminance mode Copyright © 2021 JETI Technische Instrumente GmbH... - Page 22 USB 2.0 fullspeed USB 2.0 fullspeed Bluetooth specbos 1211- 2-BT RS232 specbos 1211- 2-RS specbos 1211- 2-LAN Dimensions (basic unit) Weight (basic unit) Pilot laser Laser Class 1, (classific. accord. to = 645 DIN EN60825-1-2015-07) Copyright © 2021 JETI Technische Instrumente GmbH...
-
Page 23: Mechanical Dimensions
JETI spectroradiometer specbos Document Revision 707 5.2 Mechanical Dimensions The following drawings show the positions of the threads on the bottom side of the device and some general dimensions of the instrument. 5.2.1 specbos 1201 Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 24: Specbos 1211-2
Operating Instructions JETI spectroradiometer specbos Document Revision 707 5.2.2 specbos 1211-2 Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 25: Focusing Optics
Operating Instructions JETI spectroradiometer specbos Document Revision 707 5.2.3 Focusing optics Name Measuring Measuring Field of Length diameter distance view Focusing optics 3 Focusing optics 1 Focusing optics 0.5 Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 26: Declarations
• EN 61000-4-2 (2009-12); EN 61000-4-3 (2011-04) • EN 61000-4-4 (2013-04); EN 61000-4-6 (2014-08) • EN 61010-1 (2020-03) • EN 50581 (2013-02) sign confirms the conformity of the product with the standards and directives mentioned above. Jena, March 2020 Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 27: Declaration Of Ukca Conformity
• EN 61000-4-2 (2009-12); EN 61000-4-3 (2011-04) • EN 61000-4-4 (2013-04); EN 61000-4-6 (2014-08) • EN 61010-1 (2020-03) The conformity of the product with the standards and directives mentioned above, is confirmed by the UKCA sign. Jena, December 2021 Copyright © 2021 JETI Technische Instrumente GmbH... -
Page 28: Certificate Of Warranty
Upon receipt of customers written report of a defect, if the defective items are covered by this warranty, JETI will repair or replace it at no charge to the customer, within 30 days after receipt of the returned unit (provided there are no labor problems or materials shortages to cause delays). -
Page 29: License Agreement
The software may include certain external software components (‘Add-Ons’), including the Lab Windows user interface and drivers. You may only call to or otherwise use such Add-Ons through the use of the JETI applications. Any direct use of Add-Ons through a non-JETI proprietary application, including a custom or user-written application is prohibited by this Agreement. - Page 30 JETI have been informed of the possibility of such damages or for any claim by any other party. Further, in no event JETI’s liability under any provision of this agreement exceeds the license fee paid to JETI for the software and documentation.
-
Page 31: Service
JETI Technische Instrumente GmbH assumes no liability or responsibility for inaccuracies and errors in the operating instruction. It is not allowed to copy this documentation or parts of it without previous written permission by JETI Technische Instrumente GmbH December 9, 2021...
