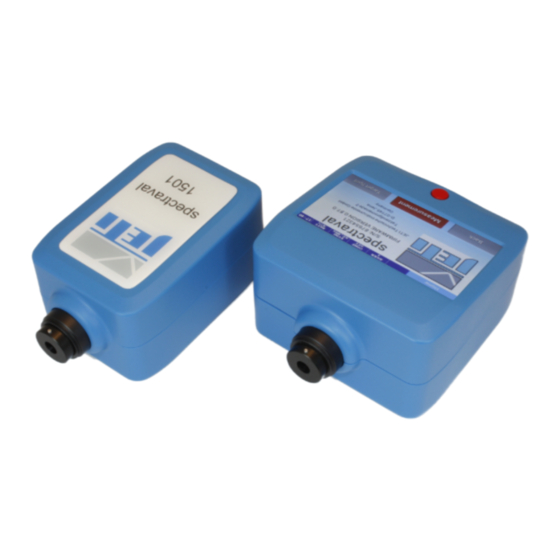

- Page 1 Operating Instructions JETI Spectroradiometer spectraval 15x1 JETI Technische Instrumente GmbH Tatzendpromenade 2 D-07745 Jena Tel.: +49 3641 225 680 Fax: +49 3641 225 681 E-mail: sales@jeti.com Internet: www.jeti.com...
-
Page 2: Document Revision
Operating Instructions JETI spectroradiometer spectraval 15x1 Document Revision 105 Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 3: Table Of Contents
4.2 Installation of Bluetooth Device spectraval ....10 4.3 Installation of LAN Device spectraval 1501 ....12 5 Operation of Device 5.1 spectraval 15x1 . - Page 4 7 Technical Data 7.1 spectraval 1501 ....... . . 28 7.2 spectraval 1511 .
-
Page 5: Introduction
15x1 can be used via Bluetooth or alternatively via USB. Acquisition and analysis of data is done by the PC-software JETI LiVal. It is also possible to create customer specific software using the tool kit provided with the instrument: SDK (spectrometric and radiometric DLLs). -
Page 6: Security Recommendations
• Never touch the glass window of the device, nor diffusers, glasses or filters con- tained in additional equipment. • If any mechanical damages on the device are detected, please contact JETI. • Batteries are to be disposed properly in accordance with statutory provisions. -
Page 7: Drivers Under Windows 7
• After finishing, connect your device to an USB-port. Windows completes the driver installation automatically. If the driver could not be installed successfully, please uninstall the driver according to instructions from the next chapter, and try again. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 8: How To Uninstall
• Repeat the previous step and type ‘0C6C’ in the Vendor ID text box and add it to the list in the same way. • Make sure that no JETI USB-device is connected to the computer and click Remove Devices. -
Page 9: How To Determine Driver Version
For this procedure, the device, which was already installed, must be connected to the computer. JETI USB driver consists of two parts, a device driver and a virtual COM-port driver. For the device to function correctly, the versions of the two drivers need to be the same. -
Page 10: Installation Of Hardware
Control elements of spectraval 1501 Connect the device to a USB interface of a PC or laptop using the enclosed USB cable. Shortly afterwards the device is ready for operation, e.g. by JETI LiVal. 4.2 Installation of Bluetooth Device spectraval spectraval can be used via Bluetooth. - Page 11 Operating Instructions JETI spectroradiometer spectraval 15x1 Document Revision 105 • Click Add a Bluetooth Device. • After a short time the spectraval device will be recognized. Click Ready to pair. Copyright © 2017 JETI Technische Instrumente GmbH...
-
Page 12: Installation Of Lan Device Spectraval 1501
The spectraval device and the controlling PC have to use the same network address space, to communicate with the spectraval-LAN via a network connection. Remark: The spectraval 1501-LAN needs a 5 V power supply if it is used via network or USB. Copyright © 2017 JETI Technische Instrumente GmbH... - Page 13 (available on the installation USB flash drive). Note: You must have administrator privileges! • Connect spectraval 1501-LAN via USB to computer. • Start ‘JETI_LAN_settings.exe’ from ‘ Tools\JETI_LAN_Settings ’ to change LAN configurations. • A window will appear where you can configure the network setting of the spectraval device.
-
Page 14: Operation Of Device
If spectraval is connected to PC via Bluetooth and the connection is interrupted, spectraval is switched off immediately. The battery status is shown by the yellow LED on the rear side of the device. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 15: Battery Charging
The battery will remain in the instrument, it is not exchangeable by the user. If the device is operated by JETI LiVal software, battery status can be seen in the title bar of the window and through menu Info/ Battery Status. If battery is low, corresponding warnings will be shown. -
Page 16: External Control Of The Measurement
TTL signal to start a measurement. This is done with the falling edge of the signal. Both triggering versions act similarly as pressing the green Measurement button of the JETI LiVal software. See the firmware description to change the settings. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 17: Display Operation (Only Spectraval 1511)
• Aim the laser point by pointing the measuring head on the front of the device in the direction of light. Press the Measurement button. • The results will be instantly displayed on the screen: Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 18: Displaying Of Results
Lv,xy,CCT) through the context-based Options, accessed from the Num. Values Screen. Tap on the checkbox to select/deselect an item from the list and then return to the Num. Value by tapping the Back Icon. Now your new data-set will display. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 19: Spectrum
The CIE1931 chromaticity x, y values of the latest measurement taken. 6.2.3.1 Displaying the RGB-Color Space /-White Point By tapping the checkbox you can display the RGB color triangle and the white point of the choosen RGB color Space, through the context-based Options. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 20: U'v' Diagram
By tapping the checkbox you can display the RGB color triangle and the white point of the choosen RGB color Space, through the context-based Options. 6.2.5 CRI The CRI R1-R15 values of the latest measurement taken. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 21: Rgb
The RGB values of the latest measurement taken. 6.2.6.1 Modifying the RGB Color Space The required RGB color space can be select (e.g. PAL, NTSC, HDTV) through the context-based Options, accessed from the RGB Screen. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 22: Sd Card
files. By tapping the checkbox you can select/deselect the ‘Automatic Save’ feature. If this option is selected, measurements are automatically written onto the sd card. Specify a file name prefix by tapping the Copyright © 2017 JETI Technische Instrumente GmbH... - Page 23 JETI spectroradiometer spectraval 15x1 Document Revision 105 Edit File Prefix Button. Otherwise you can use a time stamp (year, month, day, hour, minutes, and seconds) as file prefix by checking the checkbox below. Copyright © 2017 JETI Technische Instrumente GmbH...
-
Page 24: Reference Measurement
REF Button. The data will appaear in the Reference column. It is also possible to see the relative difference between the measurement and the ref- erence, by checking the option ‘Show Reference as Difference’. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 25: Settings
If you want to measure continuously, you can select the interval in the range of 0 s to 65 535 s. Note that you can begin a measurement session by tapping the Measurement Button in the different Mode View and stop the session by pressing the Button again. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 26: Sync Frequency
If the NFC-sensor is disabled, always make sure that the right calibra- tion file is selected, to obtain correct measuring results. JETI spectraval 15x1 are delivered in a calibrated status. The calibration data are saved in the device. A separate file exists for each measuring mode and each accessory. -
Page 27: View Settings
The Number Format allows the user to switch between scientific and floating point no- tation. 6.5.3.3 Content Selection If you want to make a selection that is different to the default, select/deselect a mode view from the list. Now only the selected modes will be displayed. Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 28: Technical Data
USB 2.0 fullspeed (12 Mbit/s); Bluetooth Dimensions (basic unit) 140 mm 80 mm 70 mm Weight (basic unit) 400 g Pilot laser Laser Class 1, = 645 . . . 660 nm (classific. accord. to EN60825-1/Oct. 2003) Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 29: Spectraval 1511
USB 2.0 fullspeed (12 Mbit/s); Bluetooth Dimensions (basic unit) 140 mm 115 mm 70 mm Weight (basic unit) 500 g Pilot laser Laser Class 1, = 645 . . . 660 nm (classific. accord. to EN60825-1/Oct. 2003) Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 30: Mechanical Dimensions
JETI spectroradiometer spectraval 15x1 Document Revision 105 7.3 Mechanical Dimensions The following drawings show the position of the thread downside the device and the general dimensions of the instrument. spectraval 1501 spectraval 1511 Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 31: Declarations
Upon receipt of customers written report of a defect if the defective items are covered by this warranty, JETI will repair or replace it at no charge to the customer, within 30 days after receipt of the returned unit (provided there are no labour problems or materials shortages to cause delays). -
Page 32: Ce - Declaration Of Conformity
• EN 61326-1 (2013-07) • EN 55011 (2011-04) • EN 61000-4-2 (2009-12); EN 61000-4-3 (2011-04) • EN 61000-4-8 (2010-11) sign confirms the conformity of the product with the standards and directives mentioned above. Jena, August 2016 Copyright © 2017 JETI Technische Instrumente GmbH... -
Page 33: License Agreement
The software may include certain external software components (‘Add-Ons’), including the Lab Windows user interface and drivers. You may only call to or otherwise use such Add-Ons through the use of the JETI applications. Any direct use of Add-Ons through a non-JETI proprietary application, including a custom or user-written application is prohibited by this Agreement. - Page 34 JETI have been informed of the possibility of such damages or for any claim by any other party. Further, in no event JETI’s liability under any provision of this agreement exceeds the license fee paid to JETI for the software and documentation.
-
Page 35: Service
JETI Technische Instrumente GmbH assumes no liability or responsibility for inaccuracies and errors in the operating instruction. It is not allowed to copy this documentation or parts of it without previous written permission by JETI Technische Instrumente GmbH July 25, 2017...
