- Page 1 Instruction Manual...
- Page 2 Troubleshooting Dear Customer, Thank you for the confidence you placed in Luxeva products. Our goal is to ensure that you use this product, which has been manufactured in our modern facilities in precise working conditions, conforming to total quality idea and without harming nature.
- Page 3 Safety Instructions This device is manufactured in compliance with safety regulations. Usage against the rules causes harm to person and device. Please read the User Manual carefully before operating the device. You will find important informations inside the User Manual regarding mounting, safety, usage and maintenance.
- Page 4 Safety Instructions Definitely do not let your device come into contact with water. The electrical connection of the device must be separated from the mains during mounting and maintenance or repair works. Device must be unplugged to be separated from the mains. Do not touch the metal terminals immediately after unplugging the appliance.
- Page 5 Safety Instructions Do not cover the dust protection cover while the device is operating or hot. Children of less than 3 age should be kept away unless continuously supervised. Do not use this heater in the vicinity of the bath, shower or swimming pool.
- Page 6 Safety Instructions Do not operate the device while sleeping or while away from where the device is located. Refrain from using extending cord, it might cause fire due to overheating. If you have to use an extending cord, the cable cross section must be at least 2 mm (14AWG).
- Page 7 Safe distances: high temperature, fire protection, wall mounting (* option) Minimum 0,75 meter distance must be present between the device and the ceiling. Min. 1.8 meter distance must be between the device and the floor for wall mounting. Min. 1 meter distance must be between the device and curtains, wood, cardboard fabric etc.

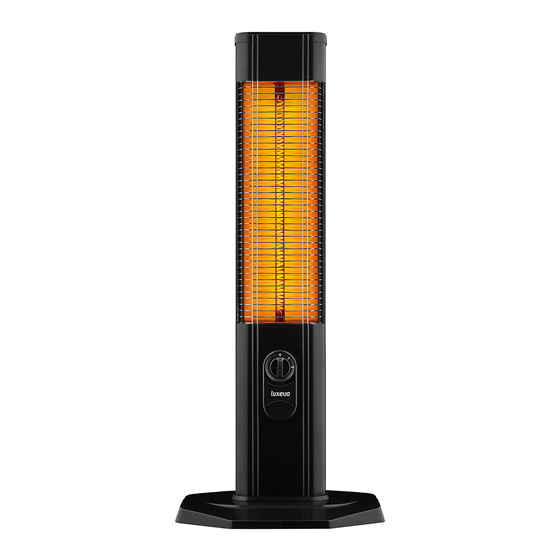

- Page 8 Device Hardware (Portable Type) Total Drawing Height Width Depth Feed Protection Device Model Power Current (V/Hz) Degree class LXV2000-TS LXV2000 220-240V~ ı 960 mm 405 mm 357 mm 2000 W 8.1 A IP20 50/60 Hz LXV1800 LXV2000 220-240V~ LXV2500-VR ı...
- Page 9 Technical Features Device Hardware (Wall Type) Plastic grid Carbon flament (heating element) Protective cage wire Function knob Total Drawing Height Width Depth Feed Protection Device Power Current Model (V/Hz) Degree class 220-240V ~, LXV 2000-HR ı 810 mm 185 mm 110 mm 2000 W IP20...
- Page 10 Using Of Your Heater Plug the device in an appropriate grounding receptacle. Bring the on/off switch in working position. Attention ! Do not touch the metal terminals on the plug immediately after unplugging it. Attention: The device has a safety system. In case of overturning, the safety system will engage and cut off the power.
- Page 11 Using Of Your Heater Plug the device in an appropriate grounding receptacle. Bring the on/off switch in working position. Attention ! Do not touch the metal terminals on the plug immediately after unplugging it. Control Panel LCD display on / off function button Maximum Level min.
- Page 12 Remote Control (* Option) Installing and Replacing Remote Control Batteries As it can be seen in Figure 1 below, the tabs are pushed in the direction shown by the arrow, it is simultaneously pulled in the direction shown by the arrow in the second figure and the battery is replaced.
- Page 13 Maintenance and Cleaning Maintenance It is very important to perform careful and regular maintenance of the device in accordance with the recommendations made in this manual so that it can run efficiently for a long time. 1. The cleanliness of the reflector (reflecting mirror) and tubes must be checked at least once a month by the user.
- Page 14 Ensure that the running switch and the thermostat of the device are in correct, open position. Check whether there is a problem in the house's electrical installation. Ensure you follow the using instructions. If the problem persists, contact the nearest Luxeva authorized service.
- Page 16 www.luxeva.com.tr...
