CustomAir® by RAMVAC® Compressors
•
CustomAir by RAMVAC compressors offer superior air quality, quiet operation,
minimal space requirements and compressor heads that can be isolated for service.
•
CustomAir compressor heads are 100% duty cycle rated allowing them to run
continuously if needed.
•
Dual column desiccant dryer provides 100% continuous supply of moisture free air.
•
Our solid state electronic controller utilizes state-of-the-art circuitry and monitors
system functions which allows for multiple compressors to be operated
simultaneously in larger clinics.
•
CustomAir compressors are designed using trouble-free solid state transducers, in
lieu of mechanical pressure switches, to ensure dependability and long-life.
•
Like RAMVAC's dependable vacuum systems, CustomAir compressors utilize Baldor
motors for years of service.
•
CustomAir by RAMVAC Compressors have the best warranty in the industry -
6 years/4200 hours!
•
UL60601 Listed, NFPA 99c Compliant
M A K E S
www.DentalEZ.com
http://Blog.DentalEZ.com
Y O U R
P R A C T I C E
For any practice looking for less
time servicing their compressor,
CustomAir® by RAMVAC®
is the number one choice.
P E R F E C T
®
Advertisement
Table of Contents
Related Manuals for RAMVAC CustomAir 1025D
Summary of Contents for RAMVAC CustomAir 1025D
- Page 1 • Like RAMVAC's dependable vacuum systems, CustomAir compressors utilize Baldor motors for years of service. • CustomAir by RAMVAC Compressors have the best warranty in the industry - 6 years/4200 hours! • UL60601 Listed, NFPA 99c Compliant www.DentalEZ.com http://Blog.DentalEZ.com...
- Page 2 P E R F E C T ® © 2010 DentalEZ, Inc. DentalEZ, StarDental, CustomAir, and Makes Your Practice Perfect are registered trademarks and NevinLabs is a trademark of DentalEZ Inc. RAMVAC is a registered trademark of the RAMVAC Dental Products, Inc. 0110 2.5M 070...
- Page 3 ® ® Dental Compressed Air System USER GUIDE Installation and Maintenance Manual For 1000 Series with C1 Control...
- Page 4 Initiate the warranty. Check inside the back cover to review our warranty commitment to you ... and what you need to do to receive warranty coverage. To initiate the warranty you must: 1. Complete and return the Installation Checklist to RAMVAC. 2. Visit our website at www.ramvac.com and complete the warranty initiation form.
-
Page 5: System Schematic

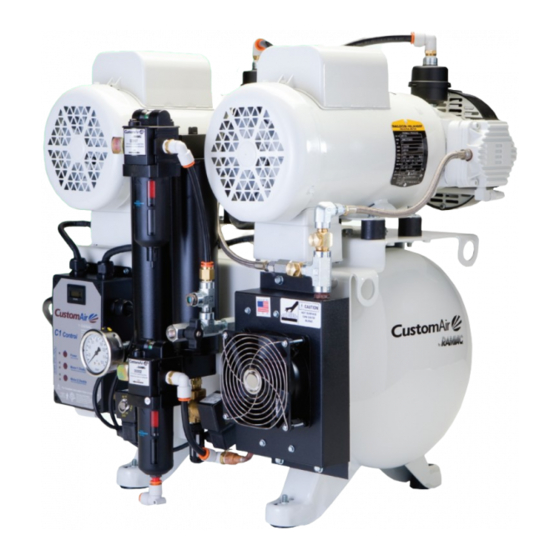

CustomAir User Guide ® ® by RAMVAC CustomAir 1000 series compressor is a Level 3 dental compressed air system. by RAMVAC The system is run by a “state of the art” electronic control that provides for continuous operation in a controlled environment. - Page 6 User Guide UNPACKING CustomAir ® ® by RAMVAC Unpacking Instructions for the CustomAir Compressor by RAMVAC 1. Carefully remove the shipping carton from the pallet containing the compressor. 2. Visually inspect the entire compressor for shipping damage. a. Visually inspect the motor isolator mounts for tearing.
-
Page 7: Installation Data
CustomAir User Guide ® INSTALLATION DATA ® by RAMVAC Placement Indoor use only, in a dust free, climate controlled room. • DO NOT install in an enclosed area where ambient temperature could exceed temperature specifications of • below 0º C / 35º F or above 40º C / 104º F while the compressor is running. -
Page 8: Important Features
User Guide IMPORTANT FEATURES CustomAir ® ® by RAMVAC CustomAir Important Features by RAMVAC Intake filter Compressor Heads Desiccant Dryer Cartridge Safety valve Particulate Filter Safety valve Isolator Mounts Tank Moisture (4 per motor) Indicator Lift Handle Loops Safety Valve... -
Page 9: Operation
® OPERATION ® by RAMVAC Theory of Operation When power is applied, fresh air is taken in through air filters and compressed by the pump pistons. The compressed air is very warm and is cooled for use by the heat exchanger and fan. Air is then delivered to coalescing filter to remove most of the moisture. The coalesc- ing filter is equipped with a automatic draining feature that allows the draining of the excess moisture. - Page 10 • Accepts the remote switch input. • Controls the dryer purge function. • Communicates with the RAMVAC OWL ™ • Runs the heat exchanger fan while the compressor motor(s) are on. • Flashes the maintenance light on the remote switch or OWL controller when filter maintenance is due.
-
Page 11: Low Voltage Remote Switching
RAMVAC Remote C1 Control Panel or Terminals equivelent with illuminated 24VAC Switch OWL Connection RAMVAC C1 Control Terminals RAMVAC Panel or Alternative Switch Connection Alternative Switching Toggle Switch or other C1 Control non-illuminated Terminals switch (option) Note: Maximum wire length for low... -
Page 12: Maintenance Overview
CustomAir User Guide MAINTENANCE ® ® by RAMVAC Maintenance Overview CustomAir compressor preventive maintenance is simple, clean, and inexpensive. by RAMVAC It can help ensure your system provides years of predictable performance. Key points for trouble-free operation: • Check the Coalescing and Particulate filter indicator every month. - Page 13 CustomAir User Guide ® MAINTENANCE ® by RAMVAC Filters Replacing Intake Filter Intake Filter Cap (Turn to remove) Note: All models use the same intake filter (1 for each head). Intake Filter 1. Turn compressor off with the power button on the C1 Control.
- Page 14 User Guide CustomAir MAINTENANCE ® ® by RAMVAC Inspect Dryer 1. Operate the compressor until the pressure of the tank reaches at least 45 psi. 2. Turn the compressor off with the Power button on the C1 Control. 3. Carefully open the tank petcock .
-
Page 15: Specifications
CustomAir SPECIFICATIONS User Guide ® ® by RAMVAC Specifications MODEL 1022 1013D/1023D 1025D 1027D 1029T MAX USERS Motor per Unit MOTOR Hp per ½ ¾ 1 hp 1 hp motor 230V 115V / 230V 230V 230V 230V VOLTAGE ( 208 - 253 ) -
Page 16: Troubleshooting
2. Leaks in facility air lines. 2. Test facility air lines for leaks 3. Dirty intake filters. 3. Replace intake filters 4. Dryer malfunction. 4. Contact RAMVAC ® 5. Valves sticking. 5. Contact RAMVAC ® Compressor gets too hot 1. -
Page 17: Warranty
*When installed, operated and maintained in accordance with written instructions. RAMVAC, Bison, Bulldog, FLOWCHECK, Ramclean and VACHECK are registered trademarks and InfiniTank, OWL and SlugBuster are trademark of RAMVAC Dental Products, Inc. SOF_7.5.1-07-04 Inside Back Cover... - Page 18 FAX (605) 642-3776 (800) 5-RAMVAC www.ramvac.com © 2007 RAMVAC Dental Products All rights reserved. No part of this publication may be copied or distributed, transmitted or transcribed in any form or by any means without the expressed written permission of RAMVAC Dental Products, Spearfish, SD 57783...
