SPX OTC 2015A Assembly & Operating Instructions

SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Order Entry: (800) 533-6127
International Sales: (507) 455-7223
The underhoist stand is designed to help support vehicle components during removal or installation.
Caution: To prevent equipment failure or damage resulting in personal injury:
•
Read, understand, and follow these instructions. If the operator cannot read these
instructions, operating instructions and safety precautions must be read and discussed
in the operator's native language.
•
Wear eye protection that meets the requirements of ANSI Z87.1 and OSHA.
•
Inspect the condition of the underhoist stand before each use; do not use a stand if it's
damaged, altered, or in poor condition.
•
Use the stand on a hard, level surface. A stand must have solid contact with the ground.
Test the stability of the load.
•
Do not attempt to support a vehicle with this stand. It is designed to help support
vehicle components only.
•
Place the load on the center of the saddle, not on the outer lips.
•
Do not exceed the rated capacity of the underhoist stand.

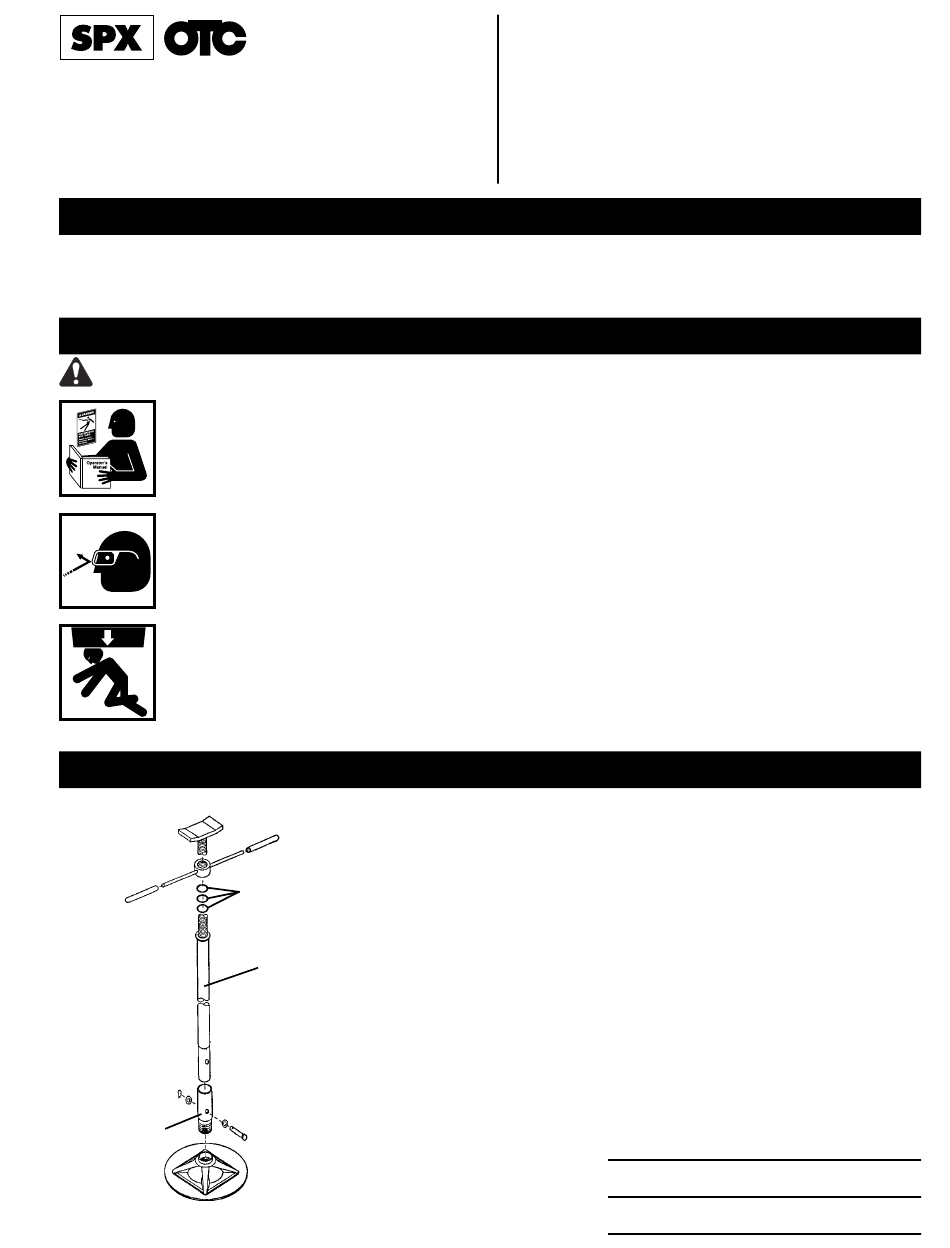

Bearing
(No. 515882)
Post
Post
Support
Base
Fax: (800) 955-8329
Fax: (800) 283-8665
Fax: (507) 455-7063
Underhoist Stand
Max. Capacity: 3/4 Ton
Safety Precautions
Assembly and Operating Instructions
1. Attach post support to base.
2. Insert post into post support, aligning holes. Secure with clevis pin,
(2) washers, and cotter pin.
Raise the Load
Turn adjusting handle clockwise until saddle meets load. Continue
turning handle to raise load to required height.
Lower the Load
Turn adjusting handle counterclockwise.
Assembly & Operating Instructions
for:
Sheet No.
Issue Date: Rev. A
Form No. 528211
2015A
© 2004 SPX Corporation
1 of 1
September 22, 2004
