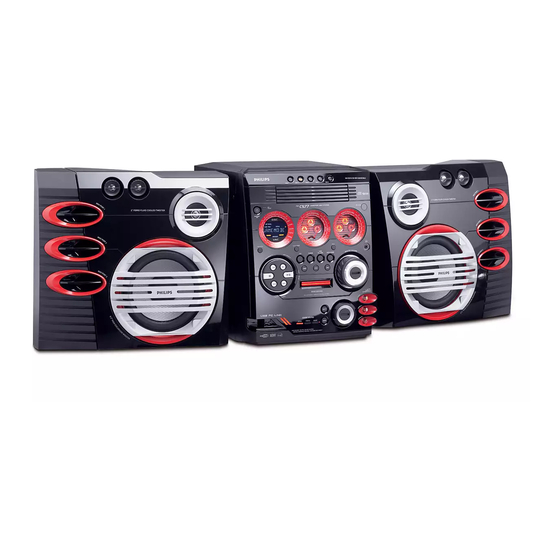

Philips FW-C577/37 Service Manual
Hide thumbs Also See for FW-C577/37:

Advertisement

Quick Links

Mini System
Service
Service
Service
Service
Service
Service Manual
©
Copyright 2003 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by BB 0310 Service Audio
Version 1.1
TABLE OF CONTENTS
Location of pc boards & Version variations ................ 1-2
Technical Specifications ............................................. 1-3
Measurement setup .................................................... 1-4
Service Aids, Safety Instruction, etc. .......................... 1-5
Disassembly Instructions & Service positions .............. 2
Service Test Programs .................................................. 3
Set Block diagram ...................................................... 4-1
Set Wiring diagram ..................................................... 4-2
Front Control Board ....................................................... 5
Front Display Board ....................................................... 6
ECO6 Tuner Board : Systems Non-Cenelec ............. 7A
AF11 Board .................................................................... 8
P2003 135/165W Module .............................................. 9
5DTC Module (Basic Version) ..................................... 10
Set Mechanical Exploded view & parts list ................. 11
Document History ........................................................ 12
Printed in The Netherlands
Subject to modification
FW-C577/
Page
CLASS 1
LASER PRODUCT
GB
21/30/37
COMPACT
DIGITAL AUDIO
3139 785 30301

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FW-C577/37 and is the answer not in the manual?

Questions and answers

Summarization of Contents

Specifications
General Specifications
Details on general operating parameters, power consumption, and dimensions for the mini system.
Tuner Specifications
Technical specifications for the FM and MW tuner sections, including tuning range and sensitivity.
Amplifier Specifications
Output power and distortion specifications for the audio amplifier stages.
Measurement Setup
Tuner FM Measurement Setup
Diagram and procedure for measuring FM tuner performance using test equipment.
Tuner AM Measurement Setup
Diagram and procedure for measuring AM tuner performance, including Faraday cage requirement.
CD Measurement Setup
Setup for measuring CD playback performance using audio discs and test equipment.
Recorder Measurement Setup
Setup for measuring recorder performance using test cassettes and equipment.
Service Aids
Service Tools
List of specialized tools required for servicing the unit.
Cassette Service Aids
List of test cassettes required for cassette drive diagnostics.
Compact Disc Service Aids
List of test discs for CD drive diagnostics and burn-in.
ESD Equipment
List of electrostatic discharge protection equipment and accessories.
Handling Chip Components
General Chip Component Handling
Basic guidelines for handling electronic components on PCBs.
Chip Component Dismounting
Instructions and techniques for safely removing chip components from a PCB.
Chip Component Mounting
Instructions and techniques for safely installing chip components onto a PCB.
Chip Component Precautions
Important precautions to take when handling and soldering chip components.
Chip Component Handling Examples
Illustrative examples of correct and incorrect chip component handling practices.
General Warnings
ESD (Electrostatic Discharge) Warnings
Crucial warnings regarding electrostatic discharge sensitivity of electronic components.
Safety and Environmental Precautions
General safety regulations for repair and environmental considerations.
Dismantling Instructions
Dismantling the 5DTC Module
Step-by-step guide for disassembling the 5DTC module.
Detaching Front Panel Assembly
Procedure for separating the front panel from the main unit assembly.
Dismantling Instructions
Dismantling Front Control and Display Boards
Detailed steps for removing front control and display boards.
Dismantling Instructions
Dismantling the Rear Panel Assembly
Procedure for removing the rear panel and associated components.
Repair Hints
Practical tips and notes for performing repairs on the unit.
Dismantling Instructions
Service Position A
Illustration of service position A for accessibility during repair.
Service Position B
Illustration of service position B for accessibility during repair.
Service Position C
Illustration of service position C for accessibility during repair.
Service Test Program
Tuner Test Procedures
Steps and expected results for testing the tuner functions.
Display Test Procedures
Steps and expected results for testing the front display functionality.
ADC Test Procedures
Steps and expected results for testing Analog-to-Digital Converter inputs.
EEPROM and System Tests
Procedures for EEPROM testing, formatting, and other system diagnostics.
Front Control Board
Headphone Board Component Layout
Layout of components on the headphone board.
Headphone Board Chip Layout
Chip layout for the headphone board.
Headphone Board Circuit Diagram
Circuit diagram for the headphone board.
ECO Power Board - Component Layout
ECO Power Board Chip Layout
Chip layout for the ECO Power board.
ECO Power Board Circuit Diagram
Circuit diagram for the ECO Power board.
Game Port Board - Component Layout
Game Port Board Chip Layout
Chip layout for the Game Port board.
Game Port Board Circuit Diagram
Circuit diagram for the Game Port board.
VU Meter (Left) Board - Component Layout
VU Meter (Left) Board Circuit Diagram
Circuit diagram for the left VU meter board.
VU Meter (Left) Board Chip Layout
Chip layout for the left VU meter board.
VU Meter Housing (Left) Board Layout & Circuit
Layout and circuit for the left VU meter housing.
VU Meter (Right) Board - Component Layout
VU Meter (Right) Board Circuit Diagram
Circuit diagram for the right VU meter board.
VU Meter (Right) Board Chip Layout
Chip layout for the right VU meter board.
VU Meter Housing (Right) Board Layout & Circuit
Layout and circuit for the right VU meter housing.
IR Eye Board - Component Layout
IR Eye Board Chip Layout
Chip layout for the IR Eye board.
IR Eye Board Circuit Diagram
Circuit diagram for the IR Eye board.
USB LED Board - Component Layout
USB LED Board Chip Layout
Chip layout for the USB LED board.
USB LED Board Circuit Diagram
Circuit diagram for the USB LED board.
Electrical Parts List - Front Control Board
Miscellaneous Parts List
List of miscellaneous electrical components for the front control board.
Capacitors List
List of capacitors used on the front control board with specifications.
Resistors List
List of resistors used on the front control board with specifications.
Coils & Filters List
List of coils and filters for the front control board.
Diodes List
List of diodes used on the front control board.
Front Display Board
FTD Display Pin Connection
Pinout diagram for the FTD display connection.
5DTC Key Board - Component Layout
5DTC Key Board Chip Layout
Chip layout for the 5DTC Key board.
5DTC Key Board Circuit Diagram
Circuit diagram for the 5DTC Key board.
Electrical Parts List - Front Display Board
Miscellaneous Parts List
List of miscellaneous electrical components for the front display board.
Capacitors List
List of capacitors for the front display board with specifications.
Resistors List
List of resistors for the front display board with specifications.
ECO6 Tuner Board
Block Diagram
Block diagram illustrating the ECO6 Tuner board architecture.
Tuner Board ECO6 / Systems Non Cenelec
Version Programming Components
List of components that vary based on system version.
Tuner Adjustment Table
Varicap Alignment
Procedure and values for tuning the varicap in the tuner circuit.
VCO Adjustment
Procedure and values for adjusting the Voltage Controlled Oscillator.
AM IF Adjustment
Procedure and values for adjusting the AM Intermediate Frequency.
AM AFC Adjustment
Procedure and values for adjusting the AM Automatic Frequency Control.
FM RF Adjustment
Procedure and values for adjusting the FM Radio Frequency.
Electrical Partslist ECO6 Systems Non-Cenelec
Miscellaneous Parts List
List of miscellaneous electrical parts for the ECO6 Tuner board.
Capacitors List
List of capacitors for the ECO6 Tuner board with specifications.
Resistors List
List of resistors for the ECO6 Tuner board with specifications.
Coils List
List of coils for the ECO6 Tuner board.
Diodes List
List of diodes for the ECO6 Tuner board.
Transistors List
List of transistors for the ECO6 Tuner board.
Integrated Circuits List
List of integrated circuits for the ECO6 Tuner board.
AF11 Board
Brief Introduction of the AF11 Board
Overview of the AF11 board features and functions.
AF11 Board Features
Detailed description of AF11 board features like IC, mic mixing, outputs, and effects.
Video Out Cinch Board - Component Layout
Video Out Cinch Board Chip Layout
Chip layout for the Video Out Cinch board.
Video Out Cinch Board Circuit Diagram
Circuit diagram for the Video Out Cinch board.
Electrical Parts List - AF11 Board
Miscellaneous Parts List
List of miscellaneous electrical components for the AF11 board.
Capacitors List
List of capacitors for the AF11 board with specifications.
Resistors List
List of resistors for the AF11 board with specifications.
Mains Socket Board - Component Layout
Mains Socket Board Circuit Diagram
Circuit diagram for the mains socket board.
L/R Loudspeaker Box Breakdown
Breakdown of the left/right loudspeaker box components.
Electrical Parts List - Mains Board
Miscellaneous Parts List
List of miscellaneous electrical parts for the mains board.
Capacitors List
List of capacitors for the mains board with specifications.
Resistors List
List of resistors for the mains board with specifications.
Coils & Filters List
List of coils and filters for the mains board.
Diodes List
List of diodes for the mains board.
Transistors & Integrated Circuits List
List of transistors and ICs for the mains board.
5DTC Module (Basic Version)
Service Hints
Troubleshooting procedures for common symptoms like skipping tracks.
Location of Printed Circuit Boards
Diagram showing the physical location of PCBs within the 5DTC module.
Emergency Opening of Trays
Instructions for manually opening locked CD trays.
Location of Switches
Diagrams identifying the location of various switches on the module.
Block Diagram 5DTC CD Version
High-level block diagram of the 5DTC CD module's functionality.
CD Board Circuit Diagram
Detailed circuit diagram for the 5DTC CD board.
Control Board Circuit Diagram
Detailed circuit diagram for the 5DTC Control board.
Exploded View Loader
Exploded mechanical view of the CD loader mechanism.
Service Hints
Verify the Complaint
Steps to verify the 'skipping tracks' complaint through playability checks.
Clean the Lens
Procedure for cleaning the CD player lens safely.
Measure Eye-Pattern Signal
Procedure to measure the eye-pattern signal for jitter analysis.
Measure Laser Current
Procedure to measure the laser diode current and check for damage.
Measure CD-Drive Offsets
Procedure to measure and compensate for CD drive photodiode offsets.
Measure CD10 Offsets
Procedure to measure and compensate for CD10 signal processor offsets.
5DTC CD Board
Mapping for Circuit Diagram
Mapping of components to the CD board circuit diagram.
Mapping for Component Layout
Mapping of components to the CD board component layout.
5DTC Control Board
Mapping for Circuit Diagram
Mapping of components to the control board circuit diagram.
Mapping for Component Layout
Mapping of components to the control board component layout.
5DTC Control Board Copperside View
Component layout illustration for the 5DTC control board.
Electrical Parts List - 5DTC Module CD Board
Mechanical Parts List
List of mechanical parts for the 5DTC module CD board.
Miscellaneous Parts List
List of miscellaneous electrical parts for the CD board.
Capacitors List
List of capacitors for the CD board with specifications.
Resistors List
List of resistors for the CD board with specifications.
Electrical Parts List - 5DTC Module Control Board
Mechanical Parts List
List of mechanical parts for the 5DTC module control board.
Miscellaneous Parts List
List of miscellaneous electrical parts for the control board.
Capacitors List
List of capacitors for the control board with specifications.
Resistors List
List of resistors for the control board with specifications.
Coils List
List of coils for the control board.
Transistors List
List of transistors for the control board.
Integrated Circuits List
List of integrated circuits for the control board.
Mechanical & Accessories Parts List - Main Unit
Screw Lists Main Unit
List of screws used in the main unit assembly.
Miscellaneous Parts List
List of miscellaneous mechanical and accessory parts.
Capacitors List
List of capacitors for the main unit with specifications.
Resistors List
List of resistors for the main unit with specifications.
L/R Loudspeaker Box Breakdown
Breakdown of the left/right loudspeaker box components.

Table of Contents
