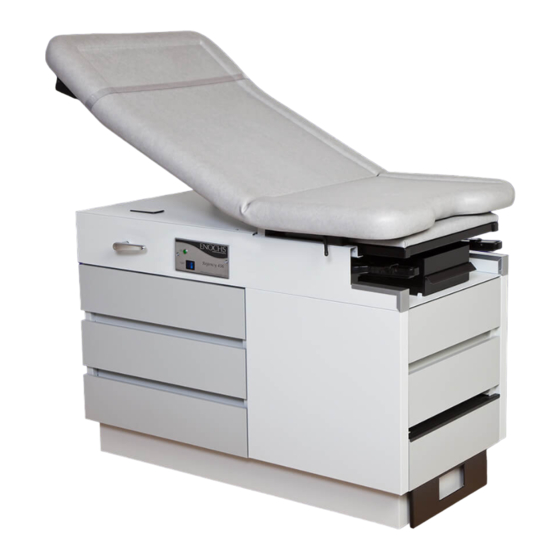

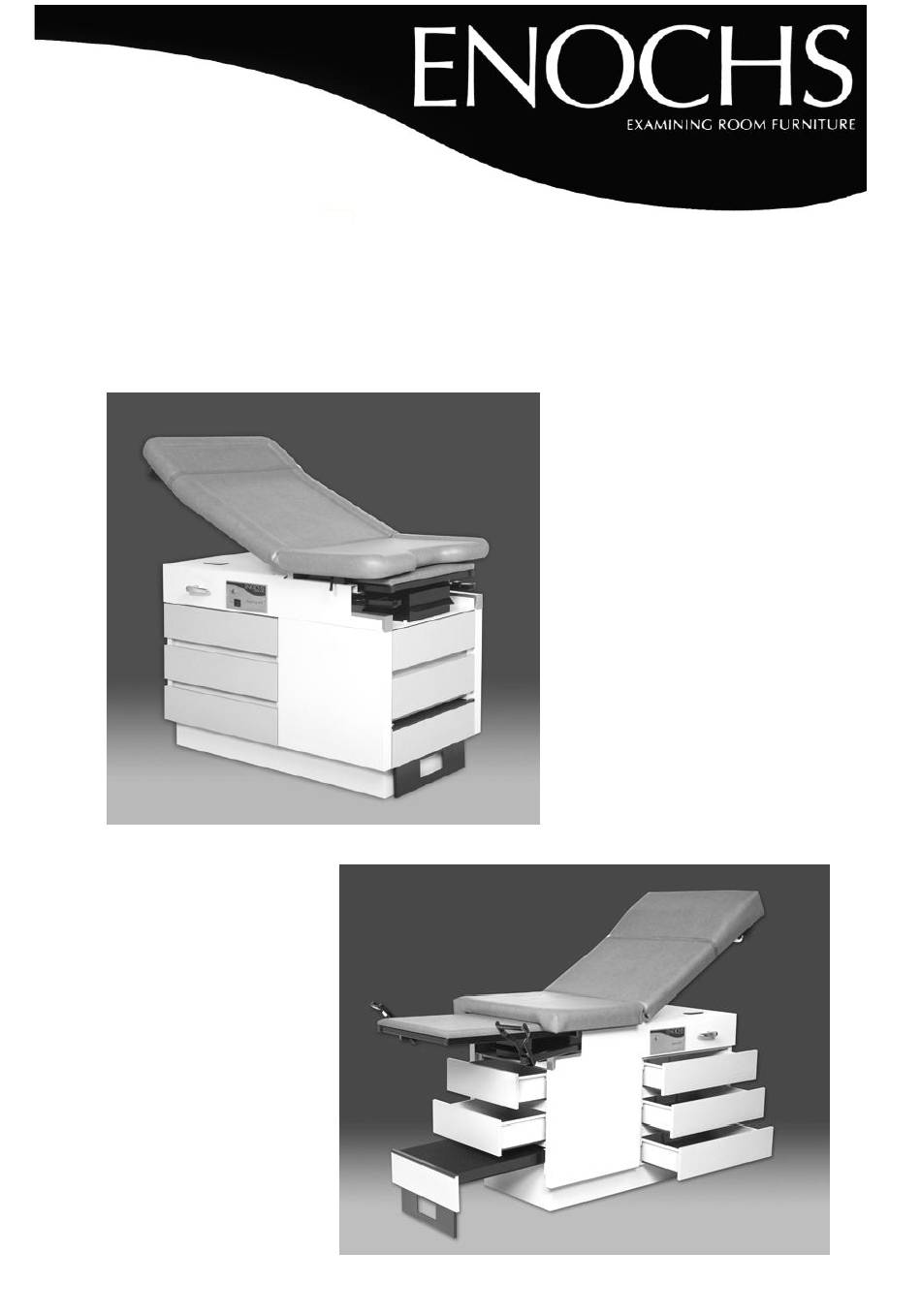

- Page 1 Installation & Operation Manual for Regency and Excel Series Examination Tables Regency 456 (right hand) Excel 355 (left hand)
-
Page 2: Table Of Contents
Pull out Leg Extension Stirrups Stirrup Adjustment Storage Drawers Reversible Drawers Vacuum Formed Top Upholstery Top Caster Base (optional accessory) Table Maintenance Cleaning Recommendations Upholstery Care Semi-annual Maintenance Checklist Troubleshooting Regency Series Product Specifications Excel Series Product Specifications Guarantee of Quality Warranty Index... -
Page 3: Introduction
Note: products may have become contaminated from normal use. MAINTENANCE AND SERVICE QUESTIONS Contact ENOCHS with questions concerning this manual, proper operation of the product or for the nearest Authorized Service Company. A Service Manual with... -
Page 4: Electrical Requirements
SYMBOL DEFINITIONS NOTE WARNING CAUTION This symbol indicates a This symbol indicates This symbol potential hazard to potential damage to indicates additional operator’s or patient’s equipment if information information for an personal safety if or instruction in the applicable information stated within CAUTION is not statement. -
Page 5: Safety Information
Duty cycle of receptacles: continuous Duty cycle of instrument warming drawer: continuous IF TABLE MALFUNCTIONS IMMEDIATELY stop using table. 2. Unplug mains power cord from wall outlet. 3. Assist patient off table. 4. Report malfunction of table to ENOCHS at 1-800-428-2305. -
Page 6: Product At A Glance
REGENCY SERIES AT A GLANCE Front Side of Table 3 side storage drawers – field reversible Mains power entry module located on base of table (see detail on page 8) Instrument warmer indicator light with circuit breaker Back release handle (one on each side of table) - Page 7 EXCEL SERIES AT A GLANCE Front Side of Table 3 side storage drawers – field reversible Mains Power Entry Module located at base of table (see detail on page 8) Instrument warmer indicator light with circuit breaker Back release handles (operational from either side of table) Mains Power Indicator Light (see detail on page 8) Paper roll holder...
- Page 8 Mains Power Entry Module – located at headend of base (applies only to Regency 456 & 455 and Excel 356 & 355) ON/OFF Switch & Circuit Mains Breaker Reset Power Entry Front Panel Model Name Mains Power Indicator Light Instrument Warmer ON/OFF Switch (applies only to: Regency 456 &...
-
Page 9: Setting Up Your Table
Increase distance between affected devices Connect table or any affected devices into isolated circuits Contact ENOCHS if interference persists BEFORE ADJUSTING TABLE Keep patient feet, legs and arms away from all moving parts. Keep all accessories, room equipment and operator stools away from all moving parts of table. -
Page 10: Back Adjustment
TABLE FEATURES BACK ADJUSTMENT The Regency and Excel Series tables have a spring assisted counter balance system allowing easy adjustment of the couch back section to any angle from flat to 80°. To Raise Back: From either side of the table, grasp back section and lift up to desired angle. -
Page 11: Foot Step
FOOT STEP The foot step is extra long and has a support foot accommodate elderly and heavier patients. Step has ribbed rubber tread providing a non-slip surface. To Extend: Grab under laminate front and pull out to full extension. To Store: Lift slightly and push unit back into table INSTRUMENT WARMING DRAWER (applies only to Regency 456 and Excel 356) Located at footend of table, the instrument warming drawer is designed to warm... -
Page 12: Mains Power Circuit Breaker
PELVIC TILT ON VACUUM FORMED TOPS The Regency Series tables feature a three position pelvic tilt which may be manually position at 0º, 7º and 11º. Tilt lowers with the use of a release lever located under the seat section accessible from either side of table. -
Page 13: Pelvic Tilt On Upholstered Top
Recess measures 10" wide at opening and 2" deep at center. PULL-OUT LEG EXTENSION Regency Series tables have an extra-wide padded leg extension that moves in and out from under the seat section. Extension is padded and upholstered in durable vinyl. -
Page 14: Stirrups
To Extend Leg Extension: Grasp front edge of extension and pull out to desired length. To Store Leg Extension: Push unit gently back under seat section of table Do not use leg extension to support entire patient weight. Extension designed to support weight of lower portion of patient’s legs. -
Page 15: Storage Drawers
STORAGE DRAWERS Tables have three 4" deep side drawers and two 4" deep footend drawers totaling 3.32 cubic feet of storage area. High impact polystyrene drawers with laminate fronts have an integrated stop that eliminates accidental dumping of drawer contents. Drawers operate on a steel reinforced, side-guide mounting system providing disciplined, non-binding drawer movement. -
Page 16: Vacuum Formed Top
VACUUM FORMED TOP Regency Series tables are standard with a Vacuum Formed Top. This top is 100% seamless and manufactured without cross seams, crevices or decorative embossing for easy and efficient cleaning after each examination. Top is padded with high density foam with additional contoured padding on the sides for patient comfort. -
Page 17: Cleaning Recommendations
TABLE MAINTENANCE ANNUAL PREVENTATIVE MAINTENANCE INSPECTION by an authorized service group is recommend by Manufacturer. Reference Semi-annual Maintenance Checklist , page 19 CLEANING RECOMMENDATIONS S P E C I A L C L E A N I N G A L E R T Follow guidelines for cleaning procedures set forth by the CDC (reference Isolation Precautions), OSHA (reference Bloodborne Pathogen Standards), APIC (Association for Practitioners in Infection Control ) and any other... -
Page 18: Upholstery Care
Scuffs cloth and solution. Rinse with clear cold water. Shoe polish: IMMEDIATELY remove polish as it contains dye which permanently stains upholstery. Rinse with a clear cold water rinse. For substances not listed call ENOCHS 1-800-428-2305 for instructions... -
Page 19: Semi-Annual Maintenance Checklist
Each inspection area is required to indicate a pass or fail status. ALL AREAS failing inspection must be serviced/repaired immediately by certified technician. See ENOCHS Service Manual for Regency and Excel Series Tables for repair/service advise and instructions. Direct all questions to ENOCHS at 1- 800-428-2305. Inspection Date:... -
Page 20: Troubleshooting
TROUBLESHOOTING Confirming Mains Power Procedure Confirm wall receptacle has power. If receptacle does not have power, call building maintenance. If receptacle has power then confirm Mains Power Cord is correctly installed. Correctly install cord and if table functions, no additional action needed. If table does not function, confirm the table’s Mains ON/OFF Circuit Breaker has not been tripped. -
Page 21: Regency Series Product Specifications
REGENCY SERIES SPECIFICATIONS Adjustments: horizontal to 80º ±5º back: 0°, 7º, 11º (± 2 º) pelvic tilt: extends out 18" from end of seat section leg extension Classification: Class 1, Type B Applied Part IPXO Couch top: 100% seamless vacuum formed, steel frame construction... -
Page 22: Excel Series Product Specifications
EXCEL SERIES SPECIFICATIONS Adjustments: horizontal to 80º ±5º back 0 º, 11º (± 2 º) pelvic tilt extends out 18" from end of seat section leg extension Classification: Class 1, Type B Applied Part IPXO Couch top: One-piece upholstered top, steel reinforced Accessory receptacles: circuit breaker Instrument warmer:... -
Page 23: Guarantee Of Quality Warranty
ENOCHS Guarantee of Quality ENOCHS, Inc. guarantees ENOCHS products to be free from defects in material or workmanship under normal installation, use and service, for a period of four years for the Regency 456 & 455 and Excel 356 & 355 and two years for the Regency 450 and Excel 350. -
Page 24: Index
5 symbol, 4 indicator ,12,8 Warranty, 23 Maintenance, contact information, 3 table, 17 semi-annual checklist, 19 questions, 3 Malfunction of table, 5 ENOCHS Examining Room Furniture Inc., P.O. Box 50559 Indianapolis, IN 46250 800-428-2305 www.enochsmed.com COPYRIGHT 2011 Issue 2 6-2011...
