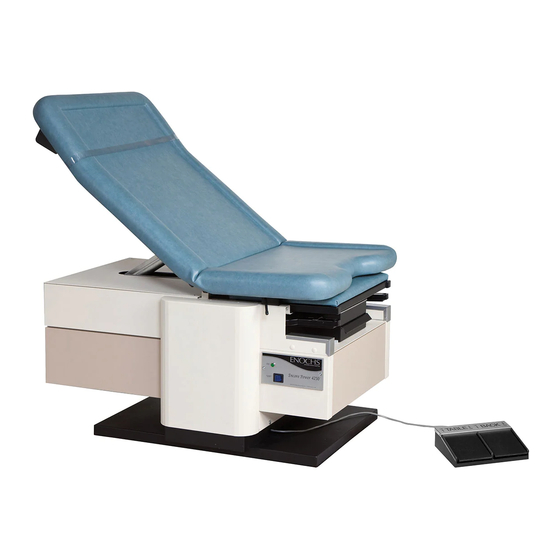

- Page 1 Installation & Operation Manual Encore Power High-Low Tables Power 4250 & Power 4200 Encore Power 4250 Encore Power 4200 - left hand...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Introduction Technical Use of Tables Intended Use of Tables Disposal of Equipment Maintenance and Service Questions Classification Symbols in this Manual Electrical Requirements Environmental Conditions Safety Information If Table Malfunctions Product at a Glance Setting Up Your Table Before Operating Table Electro Magnetic Interference Patient Load... -
Page 3: Introduction
INTENDED USE OF TABLES The Encore Power 4250 and Encore Power 4200 high-low tables are intended to be used for general examinations by qualified medical professionals. Tables are designed to position and support patients during procedures. -
Page 4: Symbols In This Manual
ELECTRICAL REQUIRMENTS Electrical rating for the Encore Power 4250 table is 115V AC, 60 Hz, 10 ampere. Do not connect table to other voltages. If incorrect power source is used, table will not function properly and component parts could be damaged. -
Page 5: Safety Information
DO NOT USE table if abnormal sounds are heard during any adjustment. IF TABLE MALFUNCTIONS IMMEDIATELY stop using foot control or hand control. 2. Unplug mains power cord from wall outlet. 3. Assist patient off table if applicable 4. Report malfunction of table to ENOCHS at 1-800-428-2305. -
Page 6: Product At A Glance
PRODUCT AT A GLANCE Perineal recess Paper cutter Pelvic tilt Range of Motion Paper roll holder Min. Flat, 7º Max. 11º ±2º Irrigation basin Power back Stirrups Drawer storage Pull-out extension Mains Power light Instrument warming Instrument Warming drawer (available on Drawer ON/OFF Power 4250 only) SWITCH... - Page 7 Indicator Back Panel Electrical Receptacle Serial Number Circuit Breaker Hand Control Accessory Plate Input Receptacles (available on Encore Power 4250 only) Hand Control (Optional Accessory) Back Up/ Down Mains Power Adjustment Input Module Height Up/ Down Adjustment ON/OFF Switch Power &...
-
Page 8: Setting Up Your Table
Connect table or any affected devices into isolated circuits Contact ENOCHS if interference persists PATIENT LOAD The Encore Power Series tables are designed for a patient a load of 500 lbs. evenly distributed. Staff should take special care to position patients over table’s center point and at an edge, end of table or on the leg extension. -
Page 9: Height Adjustment
POWER FEATURES Tables are designed for intermittent operation with a duty cycle of 1 minute ON / 9 minutes OFF. DO NOT EXCEED duty cycle, doing so could damage system. FOOT CONTROL "Easy Touch" foot control allows fast convenient adjustment of table’s HEIGHT and the couch BACK . -
Page 10: Back Adjustment
Back adjustment Raise Back: Place foot firmly on center of pedal marked BACK. Depress left side of pedal designated by When desired angle is reached, release pressure from pedal. Lower Back: Place foot firmly on center of pedal marked BACK. Depress right side of pedal designated by When desired angle is... - Page 11 TABLE FEATURES ELECTRICAL ACCESSORY RECEPTACLES (Encore Power 4250 only) UL Listed, hospital grade, dual accessory receptacles are located on back side of the table. A circuit breaker with a reset button is directly below receptacles. Unit has a total 3.9 amp maximum load.
-
Page 12: Instrument Warming Drawer
The mains power connection at the base of the table, provides power for tables height and back adjustment as well as the dual electrical receptacles and instrument warmer featured on the Encore Power 4250. The module consists of an ON/OFF toggle switch, internal circuit breaker and IEC input. -
Page 13: Mains Power Circuit Breaker & Reset
MAINS POWER CIRCUIT BREAKER This double pole protective device trips if the rated current level is exceeded, interrupting the electrical current to the table. When breaker is tripped, the ON/OFF toggle switch is in the neutral position. To Reset: Press mains power ON/OFF Switch to OFF position, then to the ON position. -
Page 14: Leg Extension
PULL-OUT LEG EXTENSION The extra wide padded leg extension moves in and out from under the seat section. Extension is padded and upholstered in durable vinyl. Independent operation allows fast transition between leg extension and basin. Patients with limited hip rotation may be positioned with feet on extension while still allowing full access to basin by practitioner. -
Page 15: Storage
STORAGE Table has a 6" deep side drawer and a 4.5" deep footend drawer totaling 1.4 cubic feet of storage area. High impact polystyrene drawers with laminate fronts have an integrated stop that eliminates accidental dumping of drawer contents. Drawers operate on a steel reinforced, side-guide mounting system providing disciplined, non-binding drawer movement. - Page 16 TABLE MAINTENANCE ANNUAL PREVENTATIVE MAINTENANCE INSPECTION by an authorized service group is recommend by Manufacturer. Reference Semi-annual Maintenance Checklist , page 18 CLEANING RECOMMENDATIONS S P E C I A L C L E A N I N G A L E R T Follow guidelines for cleaning procedures set forth by the CDC (reference Isolation Precautions), OSHA (reference Bloodborne Pathogen Standards), APIC (Association for Practitioners in Infection Control ) and any other appropriate...
-
Page 17: Upholstery Care
Shoe polish: IMMEDIATELY remove polish as it contains dye which permanently stain upholstery. Rinse with a clear cold water rinse. For substances not listed call ENOCHS 1-800-428-2305 for instructions The following cleaners are NOT RECOMMENDED for this product: powder abrasives... -
Page 18: Semi-Annual Maintenance Checklist
Each inspection area is required to indicate a pass or fail status. ALL AREAS failing inspection must be serviced/repaired immediately by certified technician. ENOCHS Service Manual for Power Encore Series Tables for repair/service advise and instructions. Direct all questions to ENOCHS at 1-800-428-2305. -
Page 19: Troubleshooting
TROUBLESHOOTING Confirming Mains Power Procedure Confirm wall receptacle has power. If receptacle does not have power, call building maintenance. If receptacle has power then confirm Mains Power Cord is correctly installed. Correctly install cord and if table functions, no additional action needed. If table does not function, confirm the table’s Mains ON/OFF Circuit Breaker has not been tripped. -
Page 20: Product Specifications
PRODUCT SPECIFICATIONS Adjustments: Power: height: Min: 24 ±.5 in. Max: 40 ±.5 in. back: 0º horizontal to 80º ±5º Manual: pelvic tilt: flat, 7º, 11º (± 2 º) leg extension: extends out 19" from end of seat section Classification: Class 1, Type B Applied Parts IPXO Controls: "hands free"... - Page 21 TABLE MAINTENANCE HISTORY Date SERVICE DONE...
- Page 22 TABLE MAINTENANCE HISTORY Date SERVICE DONE...
-
Page 23: Guarantee Of Quality Warranty
ENOCHS Guarantee of Quality ENOCHS , Inc. guarantees ENOCHS products to be free from defects in material or workmanship under normal installation, use and service, for a period of four years for the Encore Power 4250 and two years for the Encore Power 4200. Warranty period is from date of shipment from our factory, unless otherwise specified for a specific product. -
Page 24: Index
13 features, 14 power cord replacement, 12 removing from skid, 8 stirrups, 14 symbol, 4 Warranty, 23 ENOCHS Examining Room Furniture Inc., P.O. Box 50559 Indianapolis, IN 46250 800-428-2305 www.enochsmed.com COPYRIGHT 2011 ENCORE Series 4250 4200 Issue 2 6-2011...
