- Page 1 INTEGRATED REFRIGERATOR-FREEZER RS6121WR, RS6121WL, RS7621WR & RS7621WL models USER GUIDE NZ AU UK BI SG HK...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Integrated refrigerator-Freezer Before you begin Control panel Food modes Storage features Special features Wifi connection Care and cleaning Food care User warnings and sounds Troubleshooting European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE) Service & warranty Registration To register your product visit our website: fisherpaykel.com/register... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS WARNING! Electric Shock Hazard Failure to do so can result in death, electric shock, fire or injury to persons. • Read and follow the safety and warnings outlined in this user guide before operating this appliance. WARNING! This appliance contains flammable refrigerant isobutane (R600a). - Page 5 SAFETY AND WARNINGS READ AND SAVE THIS GUIDE WARNING! Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage. When using this appliance, always exercise basic safety precautions including the following: General Use This product has been designed for use in a normal domestic (residential) environment. Children should be supervised to ensure that they do not play with the appliance.
- Page 6 SAFETY AND WARNINGS If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel trained and supported service technician because special purpose tools are required. When moving your appliance away from the wall, be careful not to roll over or damage the power cord.
- Page 7 SAFETY AND WARNINGS The thermal insulation foam in this appliance may contain flammable insulation blowing gases, any exposed foam may be highly flammable and must be carefully treated during disposal. WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer, the doors and panels should be removed and the racks left in place so that children may not easily climb inside.
- Page 8 SAFETY AND WARNINGS Ice making Avoid contact with the moving parts of the ice maker ejector mechanism, and do not place your fingers on the automatic ice- making mechanism while the appliance is in operation. At first use or after water filter has been replaced, there may be discolouration in the first bin of ice cubes.
-
Page 9: Integrated Refrigerator-Freezer

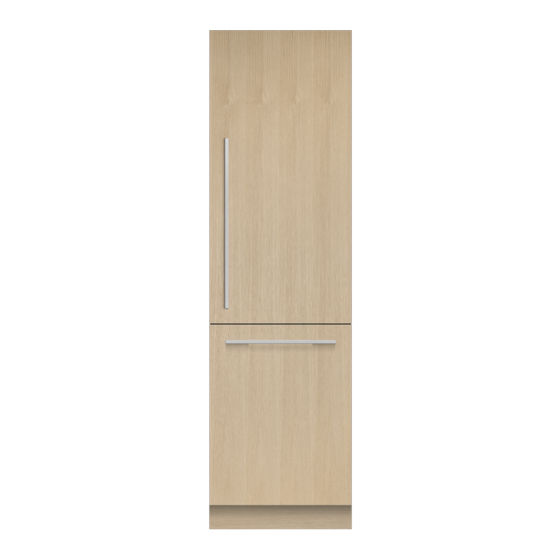

INTEGRATED REFRIGERATOR-FREEZER 24" Refrigerator-Freezer 24" Refrigerator-Freezer RS6121WL RS6121WR Left Hinge Right Hinge 30" Refrigerator-Freezer 30" Refrigerator-Freezer RS7621WL RS7621WR Left Hinge Right Hinge... -
Page 10: Before You Begin
BEFORE YOU BEGIN Ensure the installer has completed the final checklist in the installation instructions. Read this guide, taking special note of the Safety and Warnings section. Remove all packaging and dispose of it responsibly. Recycle items that you can. Refrigerator Compartment Refrigerator features 1 Bottle racks... -
Page 11: Control Panel
CONTROL PANEL activates the control panel when pressed. Allows you to select the COMPARTMENT compartment to adjust the temperature. to indicate the refrigerator compartment is selected. UPPER to indicate the freezer compartment is selected. LOWER Allows you to select the food mode for the selected compartment. WiFi illuminates when functionality is activated. -
Page 12: Food Modes
FOOD MODES Variable temperature zones Separate food modes, in both fridge and freezer, allow you to adjust the temperature independently for optimal storage. Refrigerator FOOD DESCRIPTION TYPES OF FOOD TO STORE MODES Pantry Pantry mode provides a cool, dark place Bananas, avocados, tomatoes. -
Page 13: Storage Features
STORAGE FEATURES REFRIGERATOR Fruit and vegetable bins/Slim bin Separate fruits and vegetables to prevent the ethylene-sensitive with humidity control lids produce from ripening too quickly-helps to extend their storage life. Also used for storing deli items and beverages, or for defrosting foods. -
Page 14: Special Features
SPECIAL FEATURES Max Cold Boosts the cooling speed of the selected compartment by dropping to its coldest temperature for a set time (Pantry - 6 hours, Fridge - 6 hours), dependent on the food mode in use. We recommend using ‘Max Cold’ when you are adding food items to your appliance, such as after grocery shopping. -
Page 15: Wifi Connection
WIFI CONNECTION Your appliance can be connected to your home wireless network and operated remotely using the app. Getting started Ensure your home WiFi network is turned on. You will be given step by step guidance on both your appliance and mobile device. It may take up to 10 minutes to connect your appliance. - Page 16 USING YOUR APPLIANCE Once you turn on your refrigerator for the first time, the compartments will automatically default to the recommended temperature setting. The control panel enables you to change and control the temperature of all compartments accurately and independently. For best storage of general household food items, we recommend to use the appliance at its factory default temperature and configuration settings.
- Page 17 USING YOUR APPLIANCE Selecting Features Press to scroll through the available for the compartment and food FEATURES mode you have selected. To activate: Select from the list by scrolling through and stopping at your preferred feature. A blinking light indicates the current feature when scrolling through the list.
- Page 18 USING YOUR APPLIANCE Alarm mute To activate: To activate, press once. The will illuminate to indicate the refrigerator is muted. will deactivate after ALARM MUTE 20 minutes. Press To deactivate manually, Closing the door also deactivates the ALARM MUTE Key mute To activate: Press for two seconds, a single beep will...
- Page 19 USING YOUR APPLIANCE Water filter The water supplied to your appliance is filtered through a water filter to remove impurities. The water filter is located at the bottom front of your appliance, and must be replaced every six months. Refer to your installation guide for instructions on how to remove and install the water filter.
- Page 20 USING YOUR APPLIANCE Automatic ice maker Before turning on your automatic ice maker, the system must be flushed to remove any impurities or trapped air in the filter system. Turn your Ice maker on, select LOWER COMPARTMENT > FREEZER > ICE. Flushing through the ice maker Press the ...
-
Page 21: Care And Cleaning
CARE AND CLEANING Exterior cleaning The condenser coils of your Integrated Column require periodic cleaning by a Fisher & Paykel trained service technician. Toe kick grilles and filter Your Integrated Column is fitted with a toe kick grille to protect the internal working components. - Page 22 CARE AND CLEANING Removing the top bin The runners are pre-lubricated to help open and close the bins. Do not remove the grease from the runners to maintain its smooth function. To remove a bin, extend the bin on its runners (A), and empty the bin. Push the securing tabs on both sides of the bin corners, then push the bin firmly upwards to dislodge...
- Page 23 CARE AND CLEANING Returning the top bin To return the bin, extend the runners and place the bin on top of the runners (D Push the bin slowly onto the securing tabs until you feel it clip onto the runners (E Ensure the bin tabs are clipped securely onto the runners before use.
- Page 24 CARE AND CLEANING Removing the bottom steel bin Open the bottom drawer fully. Unclip the mid tray from the sliders and lift the front of the tray. Remove the mid tray (A) and retract the sliders. Lift the steel bin slightly and slide back inside the appliance to unseat the steel bin from seating pockets.
- Page 25 CARE AND CLEANING Tilt the steel bin towards the appliance. Lift the steel bin (B) upward to remove.
- Page 26 CARE AND CLEANING Returning the bottom steel bin Open the bottom drawer fully. Insert the rear end of the steel bin at an angle into the bottom drawer. Lower the front end of the steel bin ensuring the sides are sitting on the sliders.
- Page 27 CARE AND CLEANING Pull out the sliders and insert the rear end of the mid tray into the appliance Ensure the sides of the mid tray are seated on the sliders. Clip the mid tray to the sliders to lock in place.
-
Page 28: Food Care
FOOD CARE For best food care Store only high-quality, fresh food in your appliance. Store perishable foods in the appliance immediately after purchase. Storing at room temperature increases the rate of deterioration and can allow harmful microbial growth. Foods such as meat, poultry and seafood should be well wrapped or sealed in suitable packaging to prevent dehydration, colour deterioration, loss of flavour, and transfer of odour. - Page 29 FOOD CARE Items stored in your freezer We recommend cooling carbonated beverages only when the function BOTTLE CHILL is active. Note: Do not store carbonated drinks without this function in the freezer. Failure to remove beverages could lead to freezing liquid and the likelihood of bottle/can explosion.
-
Page 30: User Warnings And Sounds
USER WARNINGS AND SOUNDS Faults Count the number of beeps made when the fresh food compartment door is opened. Record the number and sequence of temperature lights displayed on the internal control panel and contact a Fisher & Paykel trained and supported service technician in order to repair the fault. -
Page 31: Troubleshooting
TROUBLESHOOTING If there is a problem with your appliance, please check the following points before contacting your local Fisher & Paykel trained and supported service technician or the Customer Care Centre. Product parts and accessories can be purchased through the Fisher & Paykel Customer Care Centre, or online at fisherpaykel.com (this service is available to selected markets only). - Page 32 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO When the appliance Record the code on the control panel door is opened 4 rapid and contact Customer Care Centre. beeps sound and a code is displayed on the control panel Water in the vegetable Condensation is formed by the A small amount of condensation bins...
- Page 33 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Frozen food items are Remove items and place in another soft or melting freezer or cooler and call Customer Care immediately. Different sizes of ice Cabinet may not be level Adjust level of the cabinet. cubes Automatic ice maker Ice maker has not been turned...
- Page 34 TROUBLESHOOTING PROBLEM POSSIBLE CAUSES WHAT TO DO Ice is discoloured Water filter has not been flushed. Refer to your installation guide supplied with your appliance for details on how to flush your water filter. Internal water Internal water dispenser locked Deactivate ‘Water Dispenser Lock’ off by dispenser not working holding down “Colder”...
-
Page 35: European Directive 2012/19/Eu On Waste Electrical And Electronic Equipment (Weee)
EUROPEAN DIRECTIVE 2012/19/EU ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) EU This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate handling of this product. -
Page 36: Service & Warranty
SERVICE & WARRANTY For details of your manufacturer’s warranty and contacts for servicing, refer to your separate service and warranty book provided with your appliance. This product has been designed for use in a normal domestic (residential environment). This product is not designed for any commercial use. Any commercial use by the customer will affect this products manufacturer’s warranty. - Page 40 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2020. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
