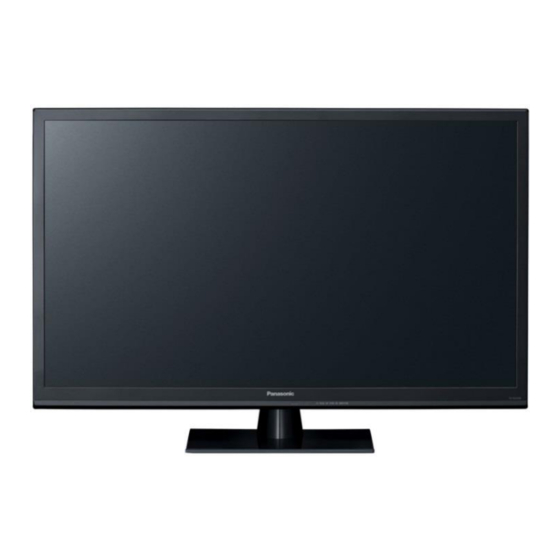

Panasonic TX-40C300 Service Manual

Panasonic TX-40C300 Service Manual

Mb97 chassis

Advertisement

Service Manual
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product or products deal within this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are marked
Schematic Diagrams, Circuit Board Diagrams, Explorer Views and Replacement Parts List. It is essential that these
critical parts should be replaced with manufacturer´s specified parts to prevent shock, fire or other hazards. Do not
modify the original design without permission of manufacturer.
TX-24CR300 / TX-24CR300
TX-24CW304 / TX-32C300
TX-32CW304 / TX-40C300
TX-40CW304 / TX-40CR300
TX-48CW304 / TX-48C300
TX-48CR300
Warning
IMPORTANT SAFETY NOTICE
0
ORDER No. MQM1505001V2
LCD Television
MB97 Chassis
© Panasonic Corporation 2015.
Unauthorized copying and
distribution is a violation of law.
