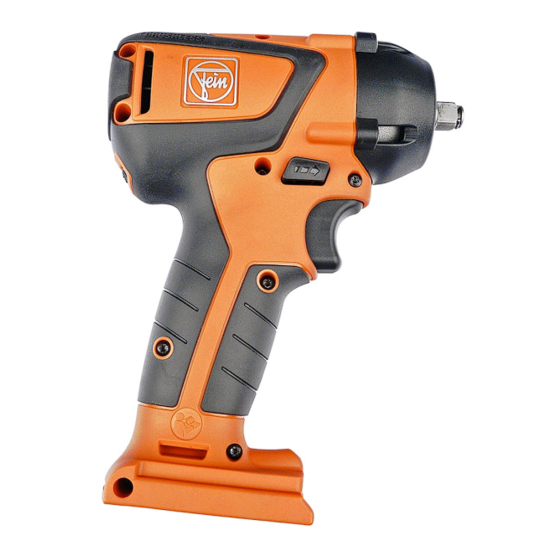

ASCD 12-150 W4; ASCD 12-150 W8
Repair instructions
C-SC_CSSM
Version 1.0
2018-06-13
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation
.
Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASCD 12-150 W8 and is the answer not in the manual?

Questions and answers

Related Manuals for Fein ASCD 12-150 W8

Summary of Contents for Fein ASCD 12-150 W8

  • Page 1 ASCD 12-150 W4; ASCD 12-150 W8 Repair instructions C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 1 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 2: Table Of Contents

    6. Removal 7. Fitting 8. Troubleshooting 9. Connection diagram C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 2 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 3: Models Described

    ASCD 12-150 W8 7 115 04 ..C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 3 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 4: Technical Data

    All the technical data can be found in the operating instructions for the model. Tests Up-to-date test data and test instructions after repair can be found on the FEIN Extranet (Customer Service → Repair Guides). Lubricants / Auxiliary substances The lubricants or auxiliary substances and their container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →...

  • Page 5: Notes And Requirements

    Outside Germany, the regulations applicable in the relevant country must be observed. C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 5 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 6: Tools Required

    Sleeve 6 mm inner diameter 20 mm outer diameter C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 6 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 7: Lubricants And Auxiliary Substances Required

    5. Lubricants and auxiliary substances required Lubricants Klübersynth GE 14-151 0,5 g Gearbox C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 7 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 8: Removal

    4. Remove the sleeve (4). 5. Remove the ball (5). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 8 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 9 6. Remove the motor housing (5). 7. Remove the pressure piece (6). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 9 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 10 4. Remove the insulating ring (4). 5. Pull out the rotor (5). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 10 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 11 3. Unsolder the three cables (3). - Soldering station C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 11 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 12 2. Pull off the switch (2). - Slotted screwdriver C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 12 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 13 - Vice - Hacksaw - Punch, dia. 4 mm C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 13 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 14  The tool holder varies depending on the model. C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 14 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 15: Fitting

    3. Fit the gearbox housing (2) in the correct position. 4. Fit the circlip (3). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 15 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 16 - Sleeve 6 mm inner diameter 20 mm outer diameter C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 16 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 17 7. Fitting Fitting the switch 1. Position the switch (1). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 17 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 18  Place the cable tie in the correct position as shown in the photograph. 4. Insert the cable (3). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 18 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 19  If the gearbox is not running true, reassemble the gearbox correctly. C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 19 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 20 4. Insert the speed setting switch (5). 5. Insert the nut (6). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 20 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 21 5. Fit the circlip (5). 6. Screw in the four screws (6). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 21 of 24 FEIN retains all rights of disposal, such as copying and circulation...
  • Page 22 5. Position the disc (4). 6. Fit the circlip (5). C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 22 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 23: Troubleshooting

    ASCD 12-150 W4; ASCD 12-150 W8 8. Troubleshooting Currently unavailable. C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 23 of 24 FEIN retains all rights of disposal, such as copying and circulation...

  • Page 24: Connection Diagram

    ASCD 12-150 W4; ASCD 12-150 W8 9. Connection diagram C-SC_CSSM Version 1.0 2018-06-13 All rights reserved by FEIN, especially in case of property rights applications. Page 24 of 24 FEIN retains all rights of disposal, such as copying and circulation...
