Cadman 1250 Operator's Manual

Micro-travellers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1100 / 1250
Micro-Travellers
OPERATOR'S, PARTS, and
MAINTENANCE MANUAL
2015 Edition
TR-MAN-1100
Revision:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1250 and is the answer not in the manual?

Questions and answers

Related Manuals for Cadman 1250

Summary of Contents for Cadman 1250

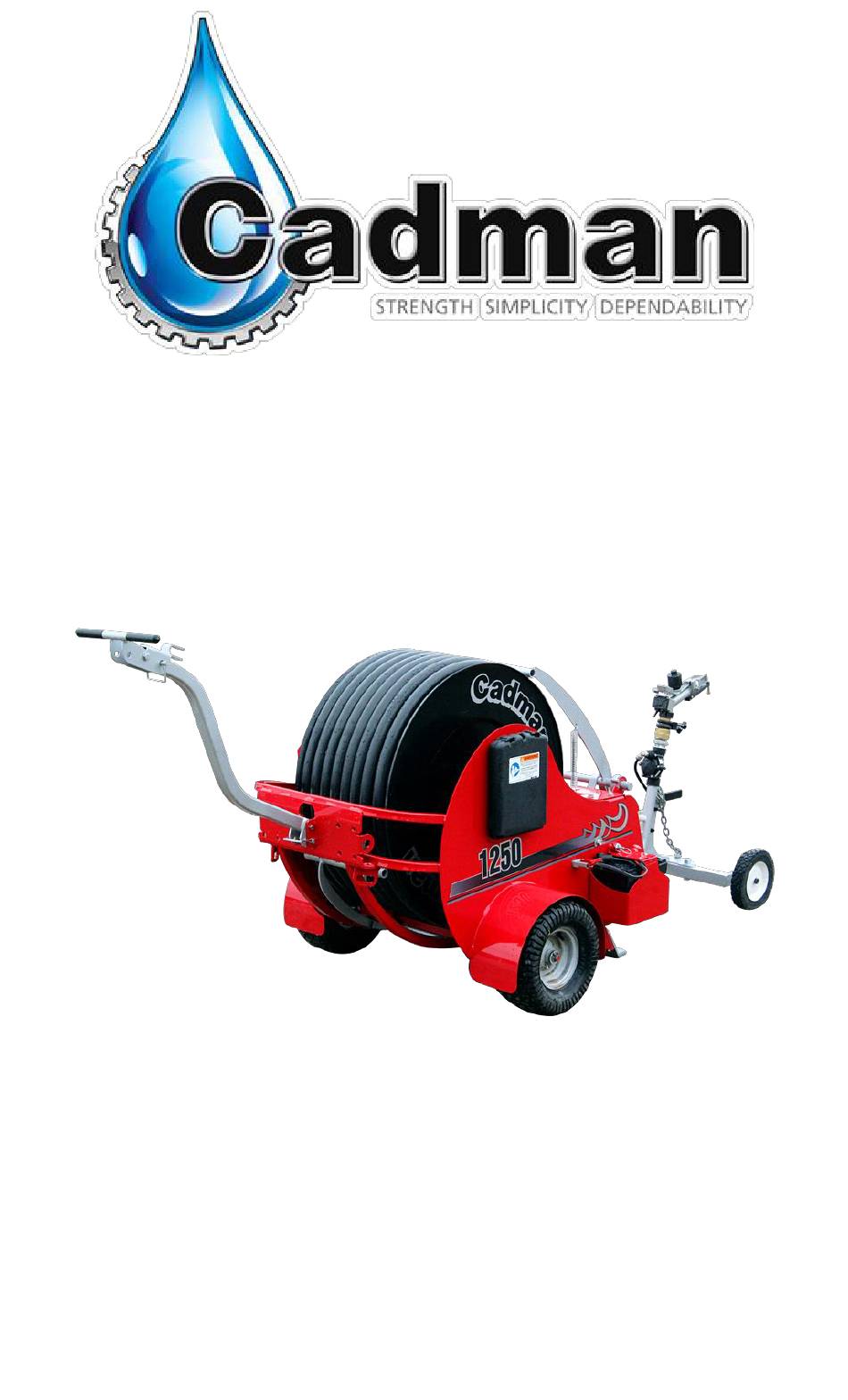

  • Page 1 1100 / 1250 Micro-Travellers OPERATOR’S, PARTS, and MAINTENANCE MANUAL 2015 Edition TR-MAN-1100 Revision:...

  • Page 2: Table Of Contents

    Appendix A – Sprinkler Data ..............63 Technical Specifications ................. 64 Useful Information ................... 67 Revision History ..................68 Page 1 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 3: Cadman Micro-Travellers

    REPORT ANY DAMAGE TO CADMAN POWER EQUIPMENT LIMITED OR YOUR LOCAL DEALER IMMEDIATELY! Page 2 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 4: Warranty Policy

    The warranties expressed herein are non-transferable and replace any other warranties, either written or verbal, which may have been given or implied. Page 3 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 5: Safety Precautions

    Page 4 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 6: Safety Decals

    Cadman Power Equipment Limited on any components installed during repair Figure 3 – Replace Decal img-00131-A Page 5 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 7 To obtain the required replacement safety decals contact Cadman Power Equipment Limited. Re-install all decals in the proper location on the machine. Page 6 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 8: Planning Your Application

    Hose Length “C” Model Feet Meters 1100 1250 Figure 6 - Reel Coverage img-00193 Page 7 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 9 (15.25 m) of hose straight out from the machine prior to beginning a long gradual curve. The arc or curve must NOT form a ninety degree (90°) bend. Page 8 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 10 From Table 1, the following combination is identified:  10 mm - 70 PSI - 205' width – 5.5 inches/minute Page 9 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 11 15.0 10 mm 15.7 19.8 12 mm 21.6 10.8 22.6 11.3 Table 2 - 1100/1250 KOMET – R20 Page 10 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 12 Failure to provide a form of resistance will result in serious equipment damage and could result in you and/or your spectators being injured. Page 11 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 13: Equipment Set-Up

    It is important to verify that the drive system is engaged prior to moving your Cadman Micro-Traveller. Failure to do so can result in equipment damage. Page 12 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 14 Figure 12 - Engage Stabilizer Feet img-00745 & img-0746 Page 13 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 15 To pick the sprinkler cart back up follow these instructions in reverse. Figure 13 - Lower Sprinkler Cart img-00458 Page 14 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 16 (Refer to “Planning Your Application” on page 7.) Figure 15 - Pull Out Hose Straight img-00244 Page 15 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 17 Page 16 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 18 If the hose is loose, tighten the coils so that they form a neatly packed spool. Rotate the drum if necessary. Figure 18 - Spool Condition img-00245 Page 17 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 19 If the hose is angled through the indexer refer to the “Indexer Adjustment Instructions” found on page 60. Figure 19 - Indexer / Hose Alignment img-00709 Page 18 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 20 TR-MAN-1100 Operator's Manual - Micro-Travellers Notes Page 19 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 21: Beginning Irrigation

    Connect the main water supply line to your machine. Make sure the hose sweeps in a gentle arc away from the control area of the machine. Figure 21 - Supply Layout img-00748 Page 20 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 22 Pull the power switch (red button) to turn on the power to the unit. Figure 23 - Control Panel img-00712 Page 21 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 23 Cadman Power Equipment Limited or your local dealer for further instructions. Figure 25 - Verify Shut-off System img-00749 Page 22 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 24: Completing Irrigation

    Leave the machine drive system engaged during transportation to keep tension on the hose drum. Page 23 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 25 Step 3 Complete any required maintenance as prescribe in the “Required Maintenance” section found on page 57. Page 24 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 26: Battery Exchange/Charging

    Failure to use the handle may result in battery and/or equipment damage as well as a potential for personal injury. Page 25 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 27 Once the battery has been charged, disconnect the charger from the outlet. Figure 30 - Supplied Battery Charger img-00479 Page 26 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 28 Failure will result in an explosion resulting in fire and personal injury. Page 27 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 29: Solar Panel Charger Option

    Page 28 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 30 10 mins and the percentage should be higher then what was recorded. Figure 33 - Solar Panel Assembly Completed img-00752 Page 29 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 31 TR-MAN-1100 Operator's Manual - Micro-Travellers Notes Page 30 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 32 TR-MAN-1100 Operator's Manual - Micro-Travellers Page 31 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 33: Parts Section

    Standard Equipment ○ Optional Equipment  Complete Assembly  Special Tool Required AR As Required N/A Not Available Page 32 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 34: Frame Assembly

    TR-MAN-1100 Operator's Manual - Micro-Travellers Frame Assembly Page 33 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 35 TEK SCREW - 1/4" X 3/4" 90-SCR-TEK025X075 WASHER SAE - 3/8 90-WSR-SAE038 WASHER SAE - 3/4 90-WSR-SAE075 MANUAL PAK - SMALL ASSEMBLY TR-MAN-SMPAK Page 34 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 36: Frame Assembly Continued

    TR-MAN-1100 Operator's Manual - Micro-Travellers Frame Assembly Continued Page 35 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 37 MACHINE SCREW PAN - #6-32 X 1 1/8 PHILLIPS 90-SCR-PH00632X113 WASHER FLAT - 1/2 90-WSR-FLT050 GASKET - 1 1/4" X 2 BOLT IR-GKT-2B125 Page 36 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 38: Drum Assembly

    TR-MAN-1100 Operator's Manual - Micro-Travellers Drum Assembly Page 37 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 39 THREADED ROD - 3/8-16 X 4 3/8" 90-ROD-03816X0438 WASHER FLAT - 5/16 90-WSR-FLT031 CAM LOCK - F150 IR-CAM-150/F Page 38 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 40: Indexing System

    TR-MAN-1100 Operator's Manual - Micro-Travellers Indexing System Page 39 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 41 NUT LOCK - 1/2-13 90-NUT-LOC050-13 WASHER FENDER - 3/8" X 1 1/2" 90-WSR-FEN038 WASHER FLAT - 1/2 90-WSR-FLT050  Page 40 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 42: Drive System

    TR-MAN-1100 Operator's Manual - Micro-Travellers Drive System Page 41 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 43 90-WSR-FLT050 WASHER LOCK - M06 HIGH COLLAR 90-WSR-LOCM06HC WASHER SAE - 5/16 90-WSR-SAE031 WASHER SAE - 1/2 90-WSR-SAE050 Page 42 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 44: Control Panel

    TR-MAN-1100 Operator's Manual - Micro-Travellers Control Panel Page 43 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 45 THREADED INSERT - 1/4-20 SHORT 90-NUT-HTR02520S SCREW SOCKET CAP - #06-32 X 7/16 90-SCR-SH00632X043 WIRING HARNESS SEE PAGE 47 (NOT SHOWN) Page 44 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 46: Power Supply System

    WILL result in equipment damage and potential for personal injury. Fire may also occur resulting in equipment/property damage. Page 45 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 47 1/4-20 FLANGE TOP NUT 90-NUT-F025-20 MACHINE SCREW PAN - #6-32 X 3/4 PHILLIPS 90-SCR-PH00632X075 WIRING HARNESS (NOT SHOWN) SEE PAGE 47 Page 46 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 48: Wiring Assembly

    TR-MAN-1100 Operator's Manual - Micro-Travellers Wiring Assembly Page 47 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 49 CABLE TIE - ANCHOR MOUNT BLACK 42-595 (NOT SHOWN) CABLE TIE – 4 IN. BLACK 40-391 (NOT SHOWN) Page 48 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 50: Low Sprinkler Cart Assembly

    TR-MAN-1100 Operator's Manual - Micro-Travellers Low Sprinkler Cart Assembly  Page 49 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 51 WASHER SAE - 1/2 90-WSR-SAE050 SPRINKLER - SIME K1 ○ SP-SIM-K1  KOMET R20 ○ – 1500 ○ SP-KOM-R20 Page 50 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 52: Decals

    TR-MAN-1100 Operator's Manual - Micro-Travellers Decals Page 51 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 53 DECAL - 1250 SIDE FRAME R.H. 42-DCL-1250R  DECAL - 1100 SIDE FRAME R.H. 42-DCL-1100R LABEL - DISCONNECT 42-LBL-007 LABEL - CONTROL 42-LBL-051 Page 52 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 54: Solar Panel Kit

    TR-MAN-1100 Operator's Manual - Micro-Travellers Solar Panel Kit ○ TR-KIT-SOL1 Page 53 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 55 WASHER SAE - #06 90-WSR-SAE006 WASHER SAE - 1/2 90-WSR-SAE050 HARNESS - SOLAR PANEL SEE PAGE 55 61-315 (NOT SHOWN) Page 54 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 56: Solar Panel Harness

    TR-MAN-1100 Operator's Manual - Micro-Travellers Solar Panel Harness 61-315 Page 55 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 57 CABLE TIE - ANCHOR MOUNT BLACK 42-647 (NOT SHOWN) CABLE TIE – 4 IN. BLACK 40-391 (NOT SHOWN) Page 56 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 58: Required Maintenance

     Wheel axles on main chassis  All grease points Table 4 – Every 100 Hours of Use Page 57 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 59 Operator's Manual - Micro-Travellers Figure 34 - Adjust Drive Chain img-00722 Figure 35 – 1100/1250 Lubrication Points img-00753 Page 58 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 60 Lubricants Grease: Any good grade multi-purpose, waterproof grease is compatible with the greasing requirements of your Cadman Mini-Traveller. Page 59 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 61: Indexer Adjustment Instructions

    Step 2 Remove the chain connector link, and then remove indexer chain. Figure 37 - Remove Indexer Chain img-00725 Page 60 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 62 Step 4 Re-install the chain and chain connector link. Figure 39 - Re-install Chain and Chain Connector Link img-00726 Page 61 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 63 DO NOT operate this machine without all guards properly installed. Failure to have guards properly installed may result in serious injury to you and/or spectators. Page 62 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 64: Appendix A - Sprinkler Data

    For every 3° drop of the trajectory angle the throw is reduced by approximately 3 to 4%. Data may change without notice. Page 63 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 65: Technical Specifications

    The approximate weight for an empty Cadman 1250 Micro-traveller is 525 lbs [232 kg]. Note: These weights are as shipped including shipping material. Page 64 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 66 TR-MAN-1100 Operator's Manual - Micro-Travellers Page 65 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
  • Page 67 TR-MAN-1100 Operator's Manual - Micro-Travellers Page 66 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 68: Useful Information

    AREA OF A CIRCLE = Diameter² X 0.7854 CYLINDER VOLUME (US GAL.) = Diameter² X 0.7854 X Length Page 67 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...

  • Page 69: Revision History

    TR-MAN-1100 Operator's Manual - Micro-Travellers Revision History VERSION DATE (MM/DD/YYYY) AUTHOR DESCRIPTION Page 68 of 68 Cadman Power Equipment ▪ BOX 100, Courtland, Ontario, Canada N0J-1E0 ▪ Phone: 519-688-2222 ▪ Fax: 519-688-2100 ▪ www.cadmanpower.com...
