DATA CENTER
Best Practices Guide:
High Density Cable Management
Solutions
Describes recommended cabling solutions for high density port solutions
based on Brocade's FC8-64 FC port blade.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1606 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brocade Communications Systems 1606

Summary of Contents for Brocade Communications Systems 1606

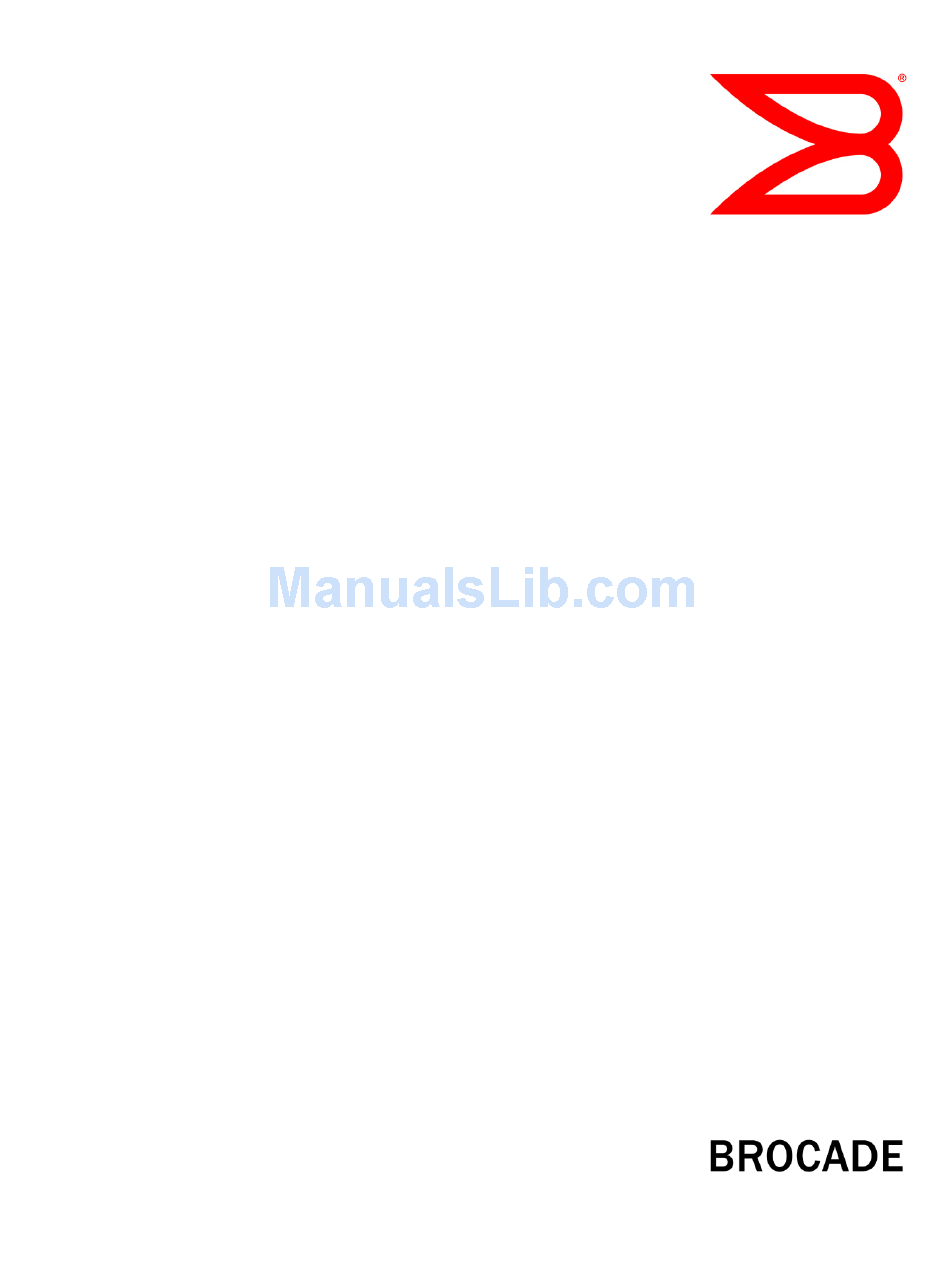

  • Page 1 DATA CENTER Best Practices Guide: High Density Cable Management Solutions Describes recommended cabling solutions for high density port solutions based on Brocade’s FC8-64 FC port blade.

  • Page 2: Table Of Contents

    DATA CENTER BEST PRACTICES GUIDE ONTENTS Introduction ................................................ 3 Terminology ..................................3 Overview of the FC8-64 FC port blade .......................... 4 Planning ................................................6 Challenges with Unstructured High Density Solutions ....................6 Using a Structured Approach ............................7 Cabling High Density, High Port Count Fiber Equipment ..................7 Trusting the Standards ..............................

  • Page 3: Introduction

    DATA CENTER BEST PRACTICES GUIDE NTRODUCTION The lack of good cable management impacts serviceability and availability of the SAN. A good cable management solution provides customers with the ability to dynamically scale and adapt to changes in their IT infrastructure while minimizing required service time. This document provides customers deploying high density solutions with general guidelines for proper cable management.

  • Page 4: Overview Of The Fc8-64 Fc Port Blade

    DATA CENTER BEST PRACTICES GUIDE Overview of the FC8-64 FC port blade The Brocade FC8-64 high density 64-port Fibre Channel blade (Figure 1) for the DCX Backbone family ® ® combines industry leading port density, performance, scalability, and reliability to maximize the benefits of SAN and server consolidation.
  • Page 5 DATA CENTER BEST PRACTICES GUIDE As an industry leader and innovator in high availability SAN solutions, Brocade developed a space efficient version of the standard Small Form Factor Pluggable (SFP+) media that enables high density port configurations as well as improved serviceability (Figure 2). These new “mini” SFPs (mSFP) retain all of the performance and functionality of the standard SFP+ and include individual port isolation for improved serviceability and availability.

  • Page 6: Planning

    DATA CENTER BEST PRACTICES GUIDE Figure 3. mSFP cable types LANNING As port density per a director and a rack increase, having an appropriate cable management plan is key especially during servicing or scaling out the fabric. The cable management plan should include current and future SAN design requirements.

  • Page 7: Using A Structured Approach

    DATA CENTER BEST PRACTICES GUIDE This inefficient approach also contributes to the over-heating of data centers—particularly within raised flooring and around the racks where cable clutter primarily occurs—requiring additional resources to cool the systems. Figure 4. Cable clutter Using a Structured Approach Cable management solutions designed specifically for Brocade SAN infrastructures (utilizing the Brocade DCX Backbone family) enable a reliable, flexible, and highly efficient cable infrastructure throughout the data center.
  • Page 8 DATA CENTER BEST PRACTICES GUIDE Here are some of the advantages and disadvantages of implementing LC or MPO/MTP cabling solutions in static or dynamic environments: Minimal Extensive Easy Cabling Easy Cable Cabling Mgmt Cable Fault Cost Solution Maint. Replacement Space Connection Isolation Solution...
  • Page 9 DATA CENTER BEST PRACTICES GUIDE Extensive Cable Connection Mgmt Required: LC-LC single cables require more cable management. MPO trunk cables require less cable management. Selecting the appropriate cable management solution is dependent on your unique environment. The following flow chart is designed to assist you in determining the appropriate structured cable management solution for your environment based on key items to consider: •...

  • Page 10: Trusting The Standards

    DATA CENTER BEST PRACTICES GUIDE Trusting the Standards Industry cabling standards are designed to protect the end user. Whether these standards are in draft or ratified state, they provide a firm foundation for establishing a coherent infrastructure, and guidelines for maintaining high levels of cable performance. Cabling standards define cabling specifications looking out to the next several years, thus supporting future desires for higher speed transmissions.

  • Page 11: Setup And Configuration - Up To 256 Port Solution

    DATA CENTER BEST PRACTICES GUIDE (You can exclude Building and Room if there is only one instance of this entity in your environment.) Once the naming scheme is approved, you can start labeling the components. Be sure to create a reference document that will become part of the training for new data center administrators.
  • Page 12 DATA CENTER BEST PRACTICES GUIDE Cabling Installation (Front Side, Director Ports to Patch Panel): Start cabling from the top ports (e.g. port 31). Bundle the cables with Velcro in groups of eight to match the ASIC or trunk boundaries. This will facilitate servicing of the system through easy identification of the cable path.
  • Page 13 DATA CENTER BEST PRACTICES GUIDE Figure 7 depicts the 256 port cabling in its completed state. This methodology provides for an attractive environment that facilitates cooler equipment, troubleshooting, and manageable growth or changes. Figure 7. Completed cabling Cabling Installation (Back Side, From Devices to Patch Panel): When connecting cables from outside devices to the backside of the patch panel, the cables should be routed through the patch panel’s backside punch-out holes.

  • Page 14: Setup And Configuration - 512 Port Solution

    DATA CENTER BEST PRACTICES GUIDE The following items are required to implement this LC cable management solution for a 256 port LC patch panel solution utilizing the Brocade DCX with four FC8-64 port blades: • Four XBR-000306 1RU 72 port LC-LC patch panels •...
  • Page 15 DATA CENTER BEST PRACTICES GUIDE Cabling Installation (Front Side, Director Ports to Patch Panel): Start cabling from the top ports (e.g. port 31). Work your way down to the bottom port. Bundle the trunk cable in groups of six above the cable comb using Velcro. CAUTION: Do not use plastic zip ties or metal tie wraps.

  • Page 16: Servicing High Density Solutions

    DATA CENTER BEST PRACTICES GUIDE The following items are required to implement this MPO/MTP cable management solution for a 512 port solution utilizing the Brocade DCX with eight FC8-64 port blades: • Two XBR-000307 1RU 72 port MPO-MPO patch panels •...

  • Page 17: Daily Practices

    DATA CENTER BEST PRACTICES GUIDE √ For backbone and horizontal runs, install additional cables as spares. √ Install higher cabling categories that will meet application requirements for the foreseeable future. √ Cabling installations and components should be compliant with industry standards. √...

  • Page 18: Summary

    DATA CENTER BEST PRACTICES GUIDE √ Use horizontal and vertical cable guides to route cables within and between racks. Use “cable spool” devices in cable managers to avoid kinks and sharp bends in the cable. Do not wrap patch cords around these spools like a hose on a hose reel.

  • Page 19: Appendix A: Cable To Port Mapping

    DATA CENTER BEST PRACTICES GUIDE APPENDIX A: C ABLE TO APPING LC Cable to Port Mapping NOTE: Print and past the table on the rack door or a log book located near the rack for easy identification devices. Brocade DCX Cable Management 19 of 23...

  • Page 20: Mpo/Mtp Cable To Port Mapping

    DATA CENTER BEST PRACTICES GUIDE MPO/MTP Cable to Port Mapping NOTE: Print and past the table on the rack door or a log book located near the rack for easy identification devices. Brocade DCX Cable Management 20 of 23...

  • Page 21: Appendix B: Equipment List

    DATA CENTER BEST PRACTICES GUIDE APPENDIX B: E QUIPMENT Chassis Chassis Description Brocade DCX Built for large enterprise networks, the 14U Brocade DCX has eight vertical blade slots to provide up to 512 Fibre Channel ports. Brocade DCX-4S Built for midsize networks, the 8U Brocade DCX-4S has four horizontal blade slots to provide up to 256 Fibre Channel ports.

  • Page 22: Trunk Cables For Msfp Connection

    DATA CENTER BEST PRACTICES GUIDE Trunk Cables for mSFP Connection Type Description Length Corning Molex Amphenol Part Number Part Part Number Number mSFP to MTP mSFP LC - MTP-female, Need to PN varies based on length PN varies based on 12 fiber, 12"...

  • Page 23: Appendix C: Third-Party Vendors

    DATA CENTER BEST PRACTICES GUIDE APPENDIX C: T HIRD ARTY ENDORS Cable Management Vendors Corning Phone: 1-800-743-2675 Molex Phone: 1-800-833-3557 Email: onlinesales@arrow.com Email for quotes outside the U.S.: iccsales@arrow.com (contact your local branch if you are already an Arrow customer) www.arrow.com Amphenol Phone: 1-510-209-6831...
