Service Manual
Specifications
Power Source:
Power Consumption
Stand-by Power Consumption: 1W
Aerial Impedance:
Receiving System:
Receiving Channels:
Operating Conditions:
Scanning format:
Intermediate Frequency:
Video/Audio
Video
Audio
Colour
220-240V AC, 50Hz
92W
75Ω unbalanced, Coaxial Type
PAL-I/H, B/G, D/K,
SECAM B/G, D/K, L/L'
PAL-525/60 (AV only)
M.NTSC (AV only)
NTSC (AV only)
VHF E2-E12
VHF A-H (ITALY)
VHF R3-R5
UHF E21-E69
CATV S1-S10 (M1-M10)
CATV S21-S41 (Hyperband)
0°C ÷ 35°C
Temperature:
Humidity: 20% ÷ 80% RH (non condensing)
480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),
1.080i(50Hz)
38,9MHz, 33,9MHz
33,4MHz (B/G), 33,16MHz (A2)
33,05MHz (NICAM B/G, D/K, L)
32,4MHz (D/K), 32,66MHz (CZ STEREO)
40,4MHz (L
), 39,75MHz (L
NICAM)
'
'
34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L

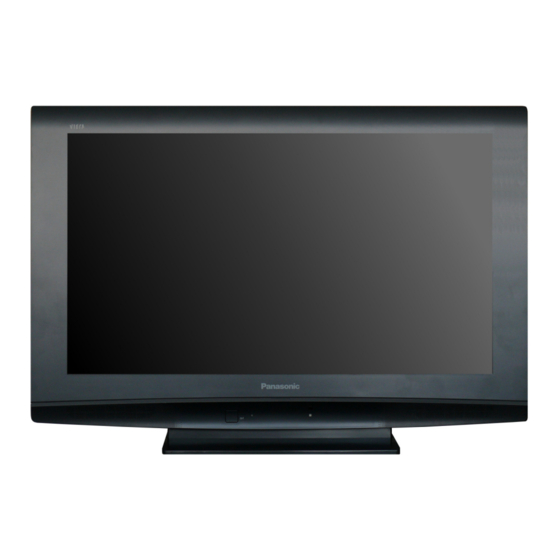

Colour LCD Television
GLP23A Chassis
VHF H1-H2 (ITALY)
VHF R1-R2
VHF R6-R12
CATV (S01-S05)
CATV S11-S20 (U1-U10)
'
)
ORDER No. PCZ0809165CE
TX-26LE8F
TX-26LE8FS
TX-26LE8L
TX-26LE8P
TX-26LE8PS
