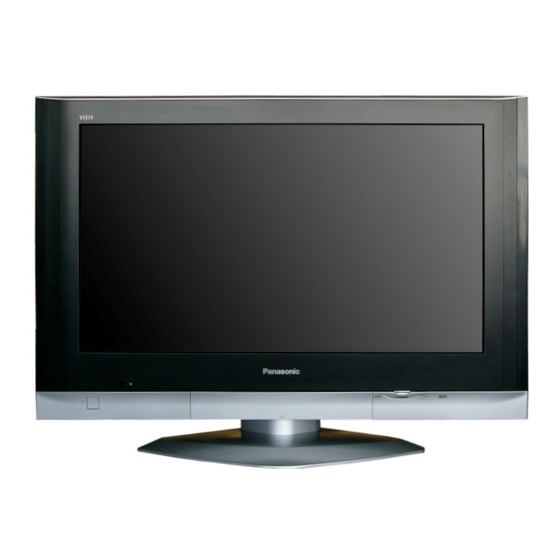

Panasonic TX-32LX600F Service Manual

Hide thumbs Also See for TX-32LX600F:

Operating instructions manual (20 pages)

Service manual (75 pages)

Table Of Contents

Table of Contents

Quick Links

Service Manual

Specifications

(Informations in brackets [ ] refers to models 26´´)

Power Source:

Power Consumption

Stand-by Power Consumption: 0,4W

Aerial Impedance:

Receiving System:

Receiving Channels:

Operating Conditions:

Scanning format:

PC signals:

Intermediate Frequency:

Video/Audio

Video

Audio

Colour

Terminals:

AV1 IN

220-240V AC, 50/60Hz

136W TX-32LX600F

169W TX-32LX600P

82W

TX-26LX600F

118W TX-26LX600P

75Ω unbalanced, Coaxial Type

PAL-I, B/G, H, D/K,

SECAM B/G, D/K, L/L'

PAL-525/60, M.NTSC, NTSC (AV only)

VHF E2-E12

VHF A-H (ITALY)

VHF R3-R5

UHF E21-E69

CATV S1-S10 (M1-M10)

CATV S21-S41 (Hyperband)

0°C ÷ 35°C

Temperature:

480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),

1.080i(50Hz)

VGA, SVGA, XGA

SXGA(compressed)

Horizontal scanning frequency

Vertical scanning frequency

38,9MHz, 33,9MHz

33,4MHz (B/G), 33,16MHz (A2)

33,05MHz (NICAM B/G, D/K, L)

32,4MHz (D/K), 32,66MHz (CZ STEREO)

40,4MHz (L'), 39,75Mhz (L'NICAM),

34,47MHz (PAL)

34,5MHz, 34,65MHz (SECAM)

38,3MHz, 38,15MHz (SECAM L')

Video (21 pin) 1V p-p 75Ω

Audio (21 pin) 500mV rms 10kΩ

RGB (21 pin) 0,7V p-p 75Ω

Colour LCD Television

TX-32LX600F

TX-32LX600P

TX-26LX600F

TX-26LX600P

LH50 Chassis

VHF H1-H2 (ITALY)

VHF R1-R2

VHF R6-R12

CATV (S01-S05)

CATV S11-S20 (U1-U10)

31 – 69 kHz

59 – 86 Hz

ORDER No. PCZ0608056CE

Table of Contents

Summary of Contents for Panasonic TX-32LX600F

Page 1: Service Manual
TX-26LX600F TX-26LX600P LH50 Chassis Specifications (Informations in brackets [ ] refers to models 26´´) Power Source: 220-240V AC, 50/60Hz Power Consumption 136W TX-32LX600F 169W TX-32LX600P TX-26LX600F 118W TX-26LX600P Stand-by Power Consumption: 0,4W Aerial Impedance: 75Ω unbalanced, Coaxial Type Receiving System: PAL-I, B/G, H, D/K, SECAM B/G, D/K, L/L’...
Page 2 AV1 OUT Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 1kΩ AV2 IN Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 10kΩ S-video IN (21-pin)Y: 1V p-p 75Ω C:0,3V p-p 75Ω AV2 OUT Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 1kΩ...
Page 3: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........... 4 REPLACEMENT PARTS LIST........24 GENERAL QUIDE LINES........4 SCHEMATIC DIAGRAMS ......... 49 TOUCH – CURRENT CHECK....... 4 AP-BOARD (1 OF 3) SCHEMATIC DIAGRAM..50 PREVENTION OF ELECTROSTATIC DISCHARGE AP-BOARD (2 OF 3) SCHEMATIC DIAGRAM..51 (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) AP-BOARD (3 OF 3) SCHEMATIC DIAGRAM..
Page 4: Safety Precautions
Safety Precautions General Guide Lines When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
Page 5: Prevention Of Electrostatic Discharge (Esd) To Electrostatically Sensitive (Es) Devices
Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...
Page 6: About Lead Free Solder (Pbf)
About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
Page 7: Applicable Signals
Applicable signals Horizontal Vertical frequency Signal name Conponent HDMI frequency (kHz) (Hz) ∗ ∗ 525 (480)/60i 15,73 59,94 ∗ ∗ 525 (480)/60p 31,47 59,94 ∗ ∗ 625 (576)/50i 15,63 50,00 ∗ ∗ 625 (576)/50p 31,25 50,00 ∗ ∗ 750 (720)/60p 45,00 60,00 ∗...
Page 8: Service Hints
Service Hints How to remove the Pedestal assembly Lay the main unit face down. (see Fig.5) Fig.5 Remove the cable cover. (see Fig.6) Remove the 4 fixing screws and the pedestal assembly. (see Fig.7) SCREWS Fig.6 Fig.7 How to remove the backcover Remove the cable cover.
Page 9: Chassis Board Layout
Chassis Board Layout P-BOARD DG-BOARD AP-BOARD H-BOARD V-BOARD GS-BOARD SD-MODULE K-BOARD G-BOARD Board Name Function AP-Board Mains Input, Power Supply Regulator DG-Board Global Core, HDMI G-Board Local Key, Audio Amplifier GS-Board SD Card Slot, SD Card Interface H-Board AV Connector, TV tuner, AV Switch K-Board Main Switch P-Board...
Page 10: Self-Check
MEM O.K. GC5 O.K. GC3FS O.K. AVSW1 O.K. AVSW2 O.K. TUN1 O.K. VIF O.K. MSP O.K. SDM O.K. HDMI O.K. ADV O.K. TX-32LX600F TX-32LX600P TX-26LX600F TX-26LX600P OPTION 1 OPTION 2 OPTION 3 OPTION 4 OPTION 5 OPTION 6 OPTION 7...
Page 11: Power Led Blinking Timing Chart
Power LED blinking timing chart Subject Information of LED Flashing timing chart. Contents When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by number of blinking of the Power LED on the front panel of the unit. Blinking Blinking timing Contents...
Page 12: Service Mode Function
Service Mode Function MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Menu How to enter SERVICE 1 In main menu, move to choose sound menu, set BASS to MAXIMUM, and set TREBLE to MINIMUM. Simultaneously press INDEX button on remote control and DOWN button (-/v) on the TV set.
Page 13: Service 1
SERVICE 1 P A N A S O N I C 2 0 0 6 L C D V 1 . 02 0 S e r v i c e 1 [GREEN] [GREEN] [GREEN] S D ( R D – S D 0 0 8 ) : 1 0 5 Sub-Bright Sub-Contrast Sub-Colour...
Page 14: Service 2
SERVICE 2 P A N A S O N I C 2 0 0 6 L C D V 1 . 02 0 S e r v i c e 1 [GREEN] [GREEN] [GREEN] S D ( R D – S D 0 0 8 ) : 1 0 5 Y/C Delay OPTION 1 (4F) OPTION 2 (11)
Page 15: Option Description
Option Description option1 Colour system Auto (1) SECAM (1) NTSC (1) M.NTSC (1) b4 A2 select 6,5MHz 5,742MHz (0) 6,742MHz (1) I only (0), BG only (1) I/BG/DK/L (2), BG/DK (3) b7 free option2 A2 enable enable (1) not use not use not use NICAM enable...
Page 16 option8 Euro option b0 ACI all country ACI enable (1), only Netherlands (0) b1 ACI auto MP ACI auto multi package enable (1) b2 ACI offset ACI offset for VCR prog. enable (1) b3 Power up EC-Mode Power on EC enable (1) b4 AVLink Q-Link off selectable in menu (1) b5 Volume correction...
Page 17: Adjustment Method
Procedure basically perform checking using the production software and make Applied signal automatic adjustment using external computer. It adjust in the mode of Colour balance Normal as follows. 100% full colour bar 0,7V p-p white peak TX-32LX600F, TX-32LX600P TX-26LX600F, TX-26LX600P 87.5% modulation Normal Normal x: 0,2800 ± 0,003 x: 0,2800 ±...
Page 18: Wiring Diagram
Wiring diagram 26” models only...
Page 19: Block Diagrams
Video & Stereo Audio Block Diagram AUDIO OUT PC AUDIO IN JK3001 JK2002 H-BOARD SIF_OUT DG-BOARD Q2108 Q2106 Q3203 TUNER THIS IS EXCHANGE UNIT VIDEO_OUT MAIN_RF Q3202 Q3010 PC_B PC_B Q3331 PC_B AV1_V PC_G PC_G Q3332 54,52 Q3002 PC_G AV1_VOUT PC_R PC_R Q3333...
Page 20 Power Supply Block Diagram 2,5V DG - BOARD MAIN_3,3V AF6, AC4, AG5, AG14, MAIN_5V DDR_2,5V IC4029 IC4023 C6, C7, D3, D10, K3, K6, THIS IS EXCHANGE 2,5V PLL_3,3V REGULATOR 2KBIT EEPROM Vout K7, K10, B3, B2, B4, B6, UNIT MAIN_3,3V B7, B9, B10, B11, D2, D11, MAIN_5V AA26, AB26, AK26, D11, D15,...
Page 21 Control Block Diagram SD_RST H - BOARD DG - BOARD INVERTER_ON RGB_FB AP_OE VIDEO_MUTE DSDA0 GC_RST HDMI_CEC IC4038 AP_CE IC1102 SCL0A IC4023 G_LED G_LED LVDS_PD SDA2 DSCL0 DSCL1 EAROM DDR SDRAM C3EBDC000067 SD_RX SCL2 SDA0A SD_RXD PANEL_VCC_ON IC4019 HDMI_WP DSDA1 SD_TX MCU_RST PC_VS...
Page 22: Parts Location
Parts Location NOTE: The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.
Page 23 NOTE: The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.
Page 24: Replacement Parts List
XTWT4+Z15DFJ SCREW K2CQ2DZ00007 AC CORD XYN2+F5FJ SCREW N2QAYB000048 REMOTE CONTROL XYN4+F20FJK SCREW RD-SD0010P SD MODULE XYN4+F6FJ SCREW TBMA163 PANASONIC BADGE CK301 TMME075 EDGE SADDLE TBXA46502 POWER BUTTON CKN08 TMME075 EDGE SADDLE TEKC029 DAMPER J0KG00000011 FERRITE CORE TEKX020 SD DOOR J0KG00000011...
Page 25 Cct Ref Parts Number Description Cct Ref Parts Number Description IC4025 C0FBBK000047 D/A CONVERTER D2114 MAZ81400ML DIODE IC4026 C1AB00002535 HDMI RECEIVER D2115 MAZ81400ML DIODE IC4027 C0DBFFD00003 1.8V REGULATOR D2116 MAZ81400ML DIODE IC4028 C0ABBB000230 OPERATIONAL AMPLIFIER D2117 MAZ81400ML DIODE IC4029 C0CBCAC00095 REGULATOR D2118 MAZ81400ML...
Page 26 Cct Ref Parts Number Description Cct Ref Parts Number Description D4059 B0JCPD000026 DIODE D7422 MAZ81500ML DIODE D4060 MAZ80390LL DIODE D7423 MAZ81500ML DIODE D4062 MA2J11100L DIODE D7501 MA2J11100L DIODE D4063 MA3X152K0L DIODE D7601 B0HCMM000014 DIODE D4064 B0HCMM000014 DIODE D7602 B0HCMM000014 DIODE D6702 B3AEB0000065 DIODE...
Page 27 Cct Ref Parts Number Description Cct Ref Parts Number Description Q2124 B1ABCF000138 TRANSISTOR Q7202 2SD0601ASL TRANSISTOR Q2271 2SA207700L TRANSISTOR Q7203 2SD0601ASL TRANSISTOR Q2272 B1ABCF000138 TRANSISTOR Q7204 2SB0709ASL TRANSISTOR Q3001 B1ABCF000138 TRANSISTOR Q7205 2SB0709ASL TRANSISTOR Q3002 2SA207700L TRANSISTOR Q7206 2SD0601ASL TRANSISTOR Q3003 2SA207700L TRANSISTOR...
Page 28 Cct Ref Parts Number Description Cct Ref Parts Number Description L2012 J0JCC0000100 INDUCTOR L4037 J0JCC0000241 INDUCTOR L2013 J0JCC0000100 INDUCTOR L4038 J0JHC0000078 COIL L2014 J0JCC0000100 INDUCTOR L4040 J0JHC0000078 COIL L2015 J0JCC0000100 INDUCTOR L4041 J0JHC0000078 COIL L2016 J0JCC0000100 INDUCTOR L4042 J0JHC0000078 COIL L2104 ELJPA470KFB COIL...
Page 29 Cct Ref Parts Number Description Cct Ref Parts Number Description FILTERS JS3218 ERJ3GEY0R00 0.1W 0 Ω JS3219 ERJ3GEY0R00 0.1W 0 Ω FL3301 J0HABB000003 FILTER JS3220 ERJ3GEY0R00 0.1W 0 Ω FL3302 J0HABB000003 FILTER JS3221 ERJ3GEY0R00 0.1W 0 Ω FL4005 J0HABC000008 FILTER JS3251 ERJ3GEY0R00 0.1W...
Page 30 Cct Ref Parts Number Description Cct Ref Parts Number Description R1120 ERJ3GEY0R00 0.1W 0 Ω R1238 ERJ2GEJ473X .063W 47K Ω R1121 ERJ2GEJ220X .063W 22 Ω R1239 ERJ3EKF1202V 0.1W 12K Ω R1122 ERJ2GEJ220X .063W 22 Ω R1240 ERJ2GEJ473X .063W 47K Ω R1123 ERJ2GEJ473X .063W...
Page 31 Cct Ref Parts Number Description Cct Ref Parts Number Description R1341 ERJ2GEJ473X .063W 47K Ω R2010 ERJ3GEYJ223V S.M.CARB 0.1W 22K Ω R1342 ERJ2GEJ103X .063W 10K Ω R2011 ERJ3GEYJ223V S.M.CARB 0.1W 22K Ω R1344 ERJ2GEJ101X .063W 100 Ω R2012 ERJ3GEYJ104V S.M.CARB 0.1W 100K Ω...
Page 32 Cct Ref Parts Number Description Cct Ref Parts Number Description R2158 ERJ3GEYJ221 0.1W 220 Ω R2263 ERJ3GEYJ102 0.1W 1K Ω R2159 ERJ3GEYJ221 0.1W 220 Ω R2264 ERJ3GEYJ183V S.M.CARB 0.1W 18K Ω R2160 ERJ3GEYJ221 0.1W 220 Ω R2265 ERJ3GEYJ182V 0.1W 1K8 Ω R2161 ERJ3GEYJ331 0.1W...
Page 33 Cct Ref Parts Number Description Cct Ref Parts Number Description R2602 ERJ3GEYJ473V S.M.CARB 0.1W 47K Ω R3059 ERJ3GEYJ221 0.1W 220 Ω R2603 ERJ3GEYJ222 0.1W 2K2 Ω R3060 ERJ3GEYJ221 0.1W 220 Ω R2604 ERJ3GEYJ102 0.1W 1K Ω R3061 ERJ3GEYJ221 0.1W 220 Ω R2605 ERJ3GEYJ101 0.1W...
Page 34 Cct Ref Parts Number Description Cct Ref Parts Number Description R3166 ERJ3EKF75R0V 0.1W 75 Ω R3365 ERJ3GEY0R00 0.1W 0 Ω R3167 ERJ3EKF75R0V 0.1W 75 Ω R3366 ERJ3GEY0R00 0.1W 0 Ω R3168 ERJ3GEY0R00 0.1W 0 Ω R3367 ERJ3GEY0R00 0.1W 0 Ω R3169 ERJ3GEYJ102 0.1W...
Page 35 Cct Ref Parts Number Description Cct Ref Parts Number Description R4104 ERJ3GEY0R00 0.1W 0 Ω R4450 ERJ6GEYJ821 S.M.CARB 0.1W 820 Ω R4106 ERJ3GEY0R00 0.1W 0 Ω R4451 ERJ6GEYJ821 S.M.CARB 0.1W 820 Ω R4110 ERJ3GEY0R00 0.1W 0 Ω R4454 ERJ6GEYJ681 S.M.CARB 0.1W 680 Ω...
Page 36 Cct Ref Parts Number Description Cct Ref Parts Number Description R4548 ERJ2GEJ911X .063W 910 Ω R4634 ERJ2GEJ220X .063W 22 Ω R4549 ERJ2GE0R00X .063W 0 Ω R4636 ERJ2GEJ103X .063W 10K Ω R4550 EXB28V220JX .031W 22 Ω R4637 ERJ2GEJ330X .063W 33 Ω R4551 ERJ2GE0R00X .063W...
Page 37 Cct Ref Parts Number Description Cct Ref Parts Number Description R4775 ERJ2GEJ470X .063W 47 Ω R6702 ERJ3GEY0R00 0.1W 0 Ω R4776 EXB2HV470JV .063W 47 Ω R6703 ERJ6GEY0R00 S.M.CARB 0.1W 0 Ω R4777 ERJ2GEJ470X .063W 47 Ω R6707 ERJ3GEYJ101 0.1W 100 Ω R4778 EXB2HV470JV .063W...
Page 38 Cct Ref Parts Number Description Cct Ref Parts Number Description R7230 ERJ6GEYJ472 S.M.CARB 0.1W 4K7 Ω R7329 ERJ6GEYJ6R8V .125W 6R8 Ω R7231 ERJ6GEYJ472 S.M.CARB 0.1W 4K7 Ω R7330 ERJ6GEYJ223 S.M.CARB 0.1W 22K Ω R7232 ERJ6GEYJ472 S.M.CARB 0.1W 4K7 Ω R7331 ERJ6GEYJ6R8V .125W 6R8 Ω...
Page 39 Cct Ref Parts Number Description Cct Ref Parts Number Description R7514 ERJ6GEYJ103 S.M.CARB 0.1W 10K Ω C1147 ECJ0EB1A104K S.M.CAP 100nF R7515 ERJ6GEYJ472 S.M.CARB 0.1W 4K7 Ω C1148 ECJ0EB1A104K S.M.CAP 100nF R7518 ERJ6GEYJ472 S.M.CARB 0.1W 4K7 Ω C1149 ECJ0EB1A104K S.M.CAP 100nF R7519 ERJ6GEYJ472 S.M.CARB...
Page 40 Cct Ref Parts Number Description Cct Ref Parts Number Description C2124 F1H1A1050028 CERAMIC 1µF C2199 ECJ1VC1H560J S.M.CAP 56pF C2125 ECJ1VB1H102 S.M.CAP C2200 ECJ1VC1H470J S.M.CAP 47pF C2126 ECJ1VB1H102 S.M.CAP C2201 ECJ1VC1H030C S.M.CAP C2127 EEEHB1C101UP ELECT 100µF C2202 ECJ1VC1H050C S.M.CAP C2128 ECJ1VF1C104Z S.M.CAP 100nF C2203...
Page 41 Cct Ref Parts Number Description Cct Ref Parts Number Description C2541 F2A1E470A211 ELECT 47µF C3028 F1H1A1050028 CERAMIC 1µF C2542 ECJ2FB1E224K S.M.CAP 220nF C3029 ECJ1VF1C105Z S.M.CAP 1000nF C2543 ECJ2FB1H104 S.M.CAP 100nF C3031 F1H1A1050028 CERAMIC 1µF C2544 ECA1EHG102E ELECT 1000µF C3032 ECJ1VF1C104Z S.M.CAP 100nF C2545...
Page 42 Cct Ref Parts Number Description Cct Ref Parts Number Description C3307 F2A1C101A180 ELECT 100µF C4181 ECJ0EB1C103K S.M.CAP 10nF C3309 ECJ1VF1C104Z S.M.CAP 100nF C4183 ECJ0EB1A104K S.M.CAP 100nF C3848 ECUV1H561KBX S.M. CAP 560pF C4184 F2G1E330A021 ELECT 33µF C3849 ECUV1H561KBX S.M. CAP 560pF C4185 ECJ3YB0J106K S.M.CAP...
Page 43 Cct Ref Parts Number Description Cct Ref Parts Number Description C4255 ECJ1VB1H562K S.M.CAP 5.6nF C4335 ECJ0EB1A104K S.M.CAP 100nF C4256 ECJ0EB1A104K S.M.CAP 100nF C4336 ECJ0EB1A104K S.M.CAP 100nF C4257 ECJ1VB0J225K S.M.CAP 6.3V 2.2µF C4337 ECJ0EB1A104K S.M.CAP 100nF C4258 ECJ0EB1A104K S.M.CAP 100nF C4338 ECJ0EB1A104K S.M.CAP 100nF...
Page 44 Cct Ref Parts Number Description Cct Ref Parts Number Description C4409 ECJ0EB1H102K S.M.CAP C4480 ECJ0EB1H102K S.M.CAP C4410 ECJ1VB1A105K S.M.CAP 1000nF C4481 ECJ0EB1H102K S.M.CAP C4411 ECJ0EB1A104K S.M.CAP 100nF C4482 ECJ1VC1H180J S.M.CAP 18pF C4412 ECJ0EB1A104K S.M.CAP 100nF C4483 ECJ1VC1H180J S.M.CAP 18pF C4413 ECJ0EB1H102K S.M.CAP C4490...
Page 45 Cct Ref Parts Number Description Cct Ref Parts Number Description C4829 ECJ0EB1C103K S.M.CAP 10nF C6728 ECJ1VC1H101J S.M.CAP 100pF C4830 ECJ0EB1A104K S.M.CAP 100nF C6729 ECJ1VC1H470J S.M.CAP 47pF C4831 ECJ0EB1C103K S.M.CAP 10nF C6730 ECJ1VB1C104K S.M.CAP 100nF C4832 ECJ0EB1A104K S.M.CAP 100nF C6733 ECJ1VB1C104K S.M.CAP 100nF C4833...
Page 46 Cct Ref Parts Number Description Cct Ref Parts Number Description C7410 ECUV1H103JCN S.M.CAP 10nF K1KA05BA0061 5P CONNECTOR C7411 ECUV1H103JCN S.M.CAP 10nF K1KA02A00553 2P CONNECTOR C7412 F1J1C104A047 CERAMIC 100nF G15-H TXJ/HG0LSM G15 TO H-PRINT C7413 F1J1C104A047 CERAMIC 100nF K1MN40A00025 40P CONNECTOR C7414 F2A1H471A531 ELECT...
Page 47 Cct Ref Parts Number Description Cct Ref Parts Number Description TQB0E0267U ENGLISH FILTERS I.C.s FL4033 J0HAAB000036 FILTER IC1101 E28F0/031/1E FLASH SW C3FBMD000223 RESISTORS IC1102 X24C26LX600F EAROM C3EBJC000061 JS4064 ERJ2GE0R00X .063W 0 Ω TRANSISTORS R4911 ERJ2GE0R00X .063W 0 Ω Q4098 B1ABCF000138 TRANSISTOR R4912 ERJ2GEJ103X...
Page 48 Cct Ref Parts Number Description Cct Ref Parts Number Description FL4058 J0HAAB000036 FILTER TQB0E0268M BULGARIAN RESISTORS TQB0E0268N ROMANIAN TQB0E0268P POLISH JS4092 ERJ2GE0R00X .063W 0 Ω TQB0E0268Q HUNGARIAN R4177 ERJ2GE0R00X .063W 0 Ω TQB0E0268R CZECH R4930 ERJ2GE0R00X .063W 0 Ω TQB0E0268U ENGLISH R4935 ERJ2GE0R00X...
Page 49: Schematic Diagrams
Schematic Diagrams IMPORTANT SAFETY NOTICE Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturers' specified parts. NOTE RESISTOR All resistors are carbon ¼W resistor, unless marked otherwise. Unit of resistance is OHM (Ω) (k=1,000, M=1,000,000) CAPACITORS All capacitors are ceramic 50V unless marked otherwise.
Page 50: Ap-Board (1 Of 3) Schematic Diagram
AP-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 51: Ap-Board (2 Of 3) Schematic Diagram
AP-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 52: Ap-Board (3 Of 3) Schematic Diagram
AP-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 53: Dg-Board (1 Of 8) Schematic Diagram
TX-32LX600F+P / TX-26LX600F+P DG-BOARD...
Page 54: Dg-Board (2 Of 8) Schematic Diagram
TX-32LX600F+P / TX-26LX600F+P DG-BOARD...
Page 55: Dg-Board (3 Of 8) Schematic Diagram
TX-32LX600F+P / TX-26LX600F+P DG-BOARD...
Page 56: Dg-Board (4 Of 8) Schematic Diagram
TX-32LX600F+P / TX-26LX600F+P DG-BOARD...
Page 57: Dg-Board (5 Of 8) Schematic Diagram
TX-32LX600F+P / TX-26LX600F+P DG-BOARD...
Page 58: Dg-Board (6 Of 8) Schematic Diagram
TX-32LX600F+P / TX-26LX600F+P DG-BOARD...
Page 59: Dg-Board (7 Of 8) Schematic Diagram
TX-32LX600F+P / TX-26LX600F+P DG-BOARD...
Page 60: Dg-Board (8 Of 8) Schematic Diagram
TX-32LX600F+P / TX-26LX600F+P DG-BOARD...
Page 61: G-Board Schematic Diagram
G-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 62: Gs-Board Schematic Diagram
GS-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 63: H-Board (1 Of 4) Schematic Diagram
H-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 64: H-Board (2 Of 4) Schematic Diagram
H-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 65: H-Board (3 Of 4) Schematic Diagram
H-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 66: H-Board (4 Of 4) Schematic Diagram
H-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 67: K-Board Schematic Diagram
V and K-BOARD TX-32LX600F+P / TX-26LX600F+P...
Page 68: Conductor Views
Conductor Views AP-BOARD TNPA3868 TRAN’S D7106 C4 D7418 Q7201 D7107 C4 D7422 Q7202 D7108 C5 D7423 Q7203 D7203 D5 D7501 Q7204 D7205 D7601 Q7205 D7207 D7602 Q7206 D7208 D7603 Q7207 D7209 D7604 Q7208 D7212 D7605 Q7209 D7213 D7606 Q7210 D7214 D7701 Q7211 D7215...
Page 69 DG-BOARD TNPA3863 - top TRAN’S IC’S Q1130 IC1100 Q1145 IC1102 Q1148 IC1103 Q1150 IC1107 Q4043 IC1108 Q4044 IC1109 Q4046 IC1110 Q4050 IC4013 Q4051 IC4017 Q4052 IC4019 Q4053 IC4020 Q4054 IC4022 Q4055 IC4023 Q4056 IC4025 Q4057 IC4026 Q4058 IC4027 Q4059 IC4028 Q4063 IC4037 Q4069...
Page 70 DG-BOARD TNPA3863 - bottom TRAN’S Q4065 Q1104 Q4066 Q1109 Q4067 Q1110 Q4068 Q1117 Q4070 Q1118 Q4071 Q1120 Q4082 Q1121 Q4083 Q1122 Q4092 Q1134 Q4093 Q1135 Q4095 Q1137 Q4096 Q1138 Q4097 Q1143 Q4098 Q1144 Q4099 Q1146 Q1147 IC’S Q1149 IC1101 Q1151 IC4014 Q1152 IC4016...
Page 71 G-BOARD TNPA3864 - top DIODE’S D2513 D2515 D2516 IC’S IC2500 IC2501 IC2502 IC2503 G-BOARD TNPA3864 - bottom DIODE’S TP2529 B5 D2517 TP2530 A3 D2518 TP2531 B3 D2519 TP2532 B3 D2520 TP2533 A3 D3813 TP2534 B2 D3815 TP2535 B2 D3825 TP2536 B3 D3826 TP2537 B3 TP3884 B3...
Page 72 V-BOARD TNPA3865 - top K-BOARD TNPA3866 - top TRAN’S Q1004 DIODE’S D1005 V-BOARD TNPA3865 - bottom TRAN’S Q1003 K-BOARD TNPA3866 - bottom DIODE’S D1001 D1003 TP’S TP’S TP1001 A2 TP001 TP1002 A3 TP002 TP1003 A2 TP1004 A1 TP1005 A4 TP1006 A3 TP1007 A3 TP1008 A4 TP1009 A1...
Page 73 GS-BOARD TNPA3867 - top GS-BOARD TNPA3867 - bottom TRAN’S Q6701 TRAN’S Q6702 Q6703 Q6704 DIODE’S D6702 IC’S IC6701 IC6703...
Page 74 H-BOARD TNPH0657 - top TRAN’S Q3021 Q2001 Q3022 Q2002 Q3023 Q2003 Q3202 Q2004 Q3203 Q2006 Q3331 Q2007 Q3332 Q2009 Q3333 Q2010 Q2011 DIODE’S Q2016 D2004 Q2017 D2005 Q2018 D2006 Q2102 D2007 Q2103 D2104 Q2104 D2106 Q2105 D2119 Q2106 D2120 Q2108 D2271 Q2113 D3017...
Page 75 H-BOARD TNPH0657 - bottom TRAN’S D2115 Q3005 D2116 Q3006 D2117 D2118 DIODE’S D2124 D2105 D5 D2125 D2107 D6 D3015 D2108 D6 D3016 D2109 D6 D3022 D2110 D3023 D2111 D2112 IC’S D2113 D6 IC2101 D2114 D6 IC2104...
