MX67/MX68 Installation Guide
This document describes how to install and set up the MX67 and
MX68 security appliance. Additional reference documents are available
online at: www.meraki.com/library/products.
MX67/MX68 Overview

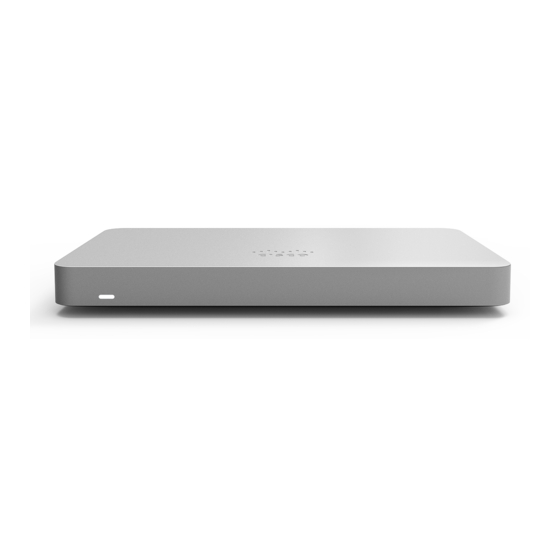

The Meraki MX67 and MX68 are enterprise security appliances
designed for distributed deployments that require remote administration.
It is ideal for network administrators who demand both ease of
deployment and a state-of-the-art feature set. A full overview of the
appliances' features can be found in the
Specifications.
Package Contents
In addition to the MX device, the following are provided:
MX67/MX68
Power Adapter (No Power Cable)
2x CAT5 Ethernet Cables
Wall Screws and Anchors
MX67C
Power Adapter (No Power Cable)
2x CAT5 Ethernet Cables
Wall Screws and Anchors
MX67 and MX68 Overview and
MX67W/MX68W
Power Adapter (No Power Cable)
2x CAT5 Ethernet Cables
Wall Screws and Anchors
2x WiFi Antennae
MX68CW
Power Adapter (No Power Cable)
2x CAT5 Ethernet Cables
Wall Screws and Anchors
1
Advertisement
Table of Contents
Related Manuals for Cisco MERAKI MX68CW
Summarization of Contents
Front Panels
Status Indicator
Describes LED status and meanings for device operation.
Back Panels
MX67/MX67W/MX67C Back Panel Functions
Details the functions of ports and buttons on the back panels of MX67 series devices.
MX68/MX68W/MX68CW Back Panel Functions
Details the functions of ports and buttons on the back panels of MX68 series devices.
Side Panels
MX68/MX68W/MX68CW Side Panel Functions
Details the functions of SIM card slot and USB port on the side panels.
Connecting to WAN
Setting up a Static IP Address
Guides users through configuring a static IP address for WAN connectivity.
Setting up a DHCP IP Address
Explains how to configure DHCP for automatic WAN IP address assignment.
Additional Settings
Setting VLANs
Explains how to configure VLAN tagging for WAN uplink ports.
Setting up a Secondary WAN Interface on the MX68
Describes how to configure a second WAN connection on MX68 devices.
Setting up a Secondary WAN interface on the MX67
Details how to configure a second WAN connection on MX67 devices.
Setting PPPoE
Provides steps for configuring PPPoE authentication for DSL connections.
Web Proxy Settings
Explains how to configure web proxy settings for cloud controller communication.
