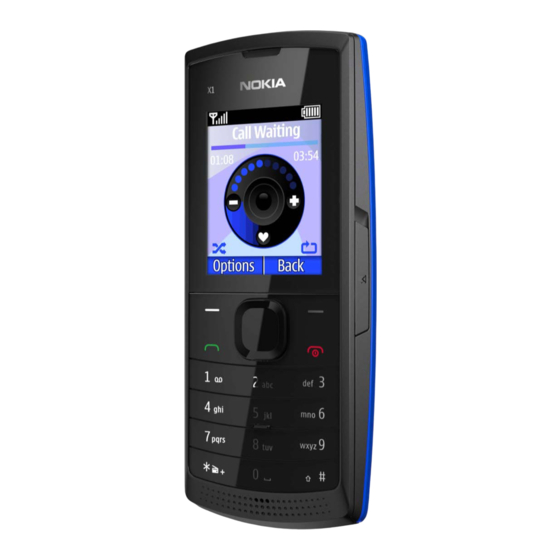

Nokia X1-00
RM-732 / RM-733
1
SERVICE MANUAL
Level 1&2
Transceiver characteristics
Band
RM-732:
EGSM 900/1800
RM-733:
EGSM 850/1900
RM-713:
EGSM 900/1800
Display
128x160 TFT display
Operating System
S30 system Base 9
Connections:
3.5 mm AV connector, Stereo FM radio, MicroSD card
support up to 16GB
Transceiver with BL-5J battery pack
Talk time (GSM-A)
BL-5J 1320 mAh:
7 h (RM-732/RM-733)
7 h (RM-713)
BL-5J 1430 mAh:
7.5 h (RM-732/RM-733)
7.5 h (RM-713)
Note:
Talk times are dependent on network parameters
and phone settings
Conf idential | Copyright © 2011 Nokia | A ll rights reserved
Nokia X1-00 (RM-732 / RM-733)
Nokia X1-01 (RM-713)
Service Manual Level 1&2
Nokia X1-01
RM-713
Standby (GSM-A)
BL-5J 1320 mAh:
1170 h (RM-732/RM-733)
785 h (RM-713)
BL-5J 1430 mAh:
1267 h (RM-732/RM-733)
850 h (RM-713)
Version 2.0
Advertisement
Table of Contents
Related Manuals for Nokia X1-00 RM-733
Summarization of Contents
EXPLODED VIEW
ATO SWAP PACKAGE
Details components for the ATO swap package, including screws and earpiece adhesive.
LIGHT SWAP PACKAGE
Lists components for the light swap package, such as display, dome sheet, and light guide.
D-COVER ASSEMBLY
Outlines parts for the D-cover assembly, including AV jack, speaker, and DC jack.
