INTERNAL (INDOOR) MODELS:
RUR199i (REU-NP3237FF-US)
RUR160i (REU-NP2530FF-US)
EXTERNAL (OUTDOOR) MODELS:

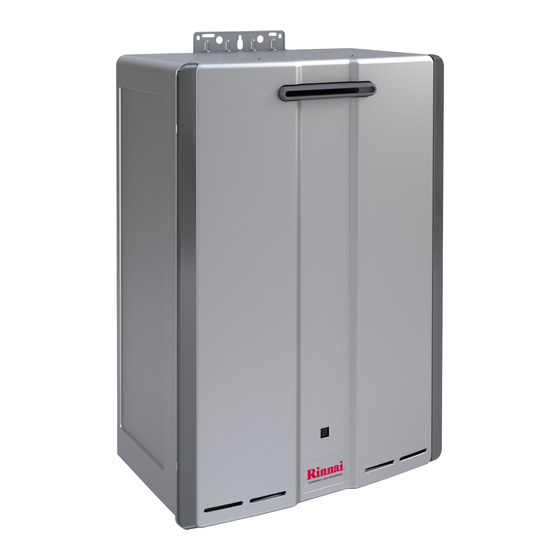

RUR199e (REU-NP3237W-US)
RUR160e (REU-NP2530W-US)
Full-length French and Spanish versions
available online at rinnai.us
Place
Model/Serial #
Label Here
Located in Manual Bag
WARNING
If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or death.
•
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
•
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
•
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
AVERTISSEMENT
•
Ne pas entreposer ni utiliser d'essence ou ni d'autres vapeurs ou liquides inflammables à proximité de cet appareil
ou de tout autre appareil.
•
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur ; ne pas vous servir des téléphones se trouvant dans le bâtiment.
Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.
Si vous ne pouvez rejoindre le fournisseur, appelez le service des incendies.
•
L'installation et l'entretien doivent être assurés par un installateur ou un service d'entretien qualifié ou par le
fournisseur de gaz.
Rinnai Customer Care 1-800-621-9419
Rinnai Tankless Water Heater Installation and Operation Manual
Tankless Water Heater
Installation and Operation Manual
Assurez-vous de bien suivre les instructions données dans cette notice
pour réduire au minimum le risque d'incendie ou d'explosion ou pour
éviter tout dommage matériel, toute blessure ou la mort.
ANSI Z21.10.3 ● CSA 4.3
U334-0773(00)
rinnai.us
06000012336788
Advertisement
Table of Contents
Related Manuals for Rinnai ThermaCirc360 RUR199e
Summarization of Contents
Safety
1.1 Safety Symbols
Explains hazard symbols used in the manual to alert users to potential dangers.
1.2 Safety Precautions
Provides critical safety guidelines for installation and operation to prevent injury or death.
About the Water Heater
2.1 Items Included
Lists all components included in the water heater package for verification.
2.2 Items Needed for Installation (Not Included)
Lists tools and materials required for installation that are not supplied with the unit.
2.3 Items Not Required But May Be Useful
Lists optional items that can be helpful but are not essential for installation.
2.4 Accessories
Details optional accessories available for purchase to enhance functionality.
2.5 Specifications
Provides detailed technical specifications of the water heater models.
2.6 Dimensions
Shows the physical dimensions of indoor and outdoor water heater models.
Install the Water Heater
3.1 Installation Guidelines
Outlines general rules and requirements for installing the water heater correctly.
3.2 Choose an Installation Location
Guides selection of an appropriate installation location considering environment and water quality.
3.3 Mount the Internal (Indoor) Water Heater to the Wall
Provides step-by-step instructions for mounting indoor models to a wall securely.
3.4 Mount the External (Outdoor) Water Heater to the Wall
Provides step-by-step instructions for mounting outdoor models to a wall securely.
3.5 Vent the Water Heater
Explains guidelines and requirements for proper water heater venting.
3.6 Connect the Water Supply
Instructions for connecting the water supply lines to the water heater.
3.7 Install the Isolation Valves
Guide for installing isolation valves for service and maintenance access.
3.8 Pressure Relief Valve
Details installation and safety requirements for the pressure relief valve.
3.9 Condensate
Guidelines and procedures for condensate drain management and prevention.
3.10 Connect the Gas Supply
Step-by-step instructions for connecting the gas supply safely.
3.11 Connect the Power Supply
Procedures for connecting the electrical power supply safely.
3.12 Parameter Settings
Explains how to adjust various operational parameters of the water heater.
3.13 Service Indicator (Service Soon, 55)
Describes the service indicator and how to reset it.
3.14 Post-Water Heater Installation Checklist
A checklist to verify correct water heater installation before operation.
Operate the Water Heater
4.1 Safety Precautions
Crucial safety warnings and procedures for operating the water heater.
4.2 Controller
Explains the functions and operation of the controller panel.
4.3 Setting the Temperature
Guides on how to set and adjust the water temperature.
4.4 Performance Data
How to access and interpret performance data displayed by the unit.
4.5 Diagnostic Codes
How to display and interpret diagnostic codes for troubleshooting.
4.6 Configuring ThermaCirc360™ Recirculation Pump Settings
Configuration steps for the ThermaCirc360 recirculation system.
Maintain the Water Heater
5.1 Maintenance
Overview of required annual inspections and maintenance tasks.
5.2 Cleaning and Inspecting the Air Filter (Indoor Units Only)
Procedure for cleaning and inspecting the air filter for indoor units.
5.3 Flushing the Heat Exchanger
Instructions for flushing the heat exchanger to prevent scale build-up.
5.4 Draining the Water Heater
Steps for manually draining the water heater for freeze protection or storage.
Appendices
6.1 Wiring Diagram
Electrical wiring schematic for the water heater.
6.2 Ladder Diagram
Control logic diagram illustrating operational sequences.
6.3 Pressure Drop and Water Flow Curves
Graphs showing pressure drop and water flow characteristics.
6.4 Pressure Drop Curve (Water Heater + Pump)
Graph illustrating pressure drop for the water heater with a pump.
6.5 Guidelines for Additional Temperature Controllers
Information on installing and wiring multiple temperature controllers.
6.6 Massachusetts State Gas Regulations
Specific gas installation regulations for Massachusetts.
6.7 Warranty
Details the limited warranty coverage and terms for Rinnai products.
