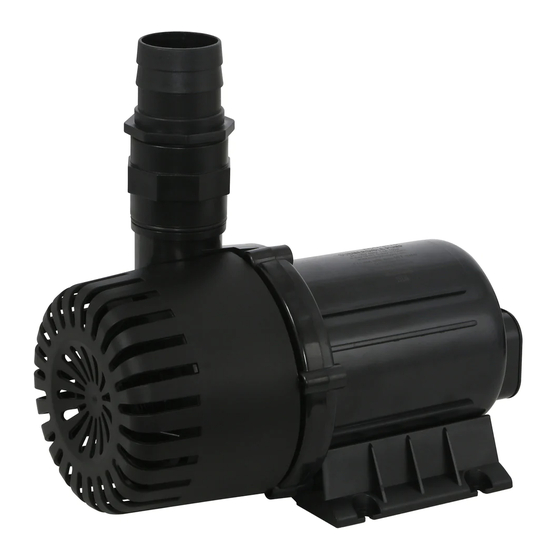

- Page 1 User Guide Fixed Flow Pumps FOR SUBMERSIBLE OR INLINE USE F O R P U M P M O D E L S 3170 4950 7400 #728335 #728485 #728340...
-
Page 2: Table Of Contents
FOR SUBMERSIBLE OR INLINE USE CONTENTS SAFETY INFORMATION ..............1- 2 USER GUIDE Introduction ......................Operating Instructions Horizontal or Vertical Discharge..............Submersible Applications................Inline Applications..................Cleaning & Maintenance..................Replacement Parts ....................PUMP SPECIFICATIONS Eco-3170......................Eco-4950......................Eco-7400......................WARRANTY INFORMATION ..........Back Cover... -
Page 3: Safety Information
11. Never yank on the cord to pull plug from the outlet. 12. Do not use this pump for other than intended use. The use of certain attachments not recommended or sold by EcoPlus may cause unsafe conditions and void ®... - Page 4 USAGE CAUTIONS: A. Before operating pump: 1. Check that the power voltage and frequency conforms to the power ratings on the nameplate. 2. Don’t lift, lower or carry pump by the power cable. 3. Always unplug the pump when not in use. Do not place hands in water where the pump is installed or before performing any maintenance and cleaning.
-
Page 5: User Guide
USER GUIDE Introduction EcoPlus Fixed Flow Rate Submersible or Inline Pumps are quality products that are designed ® using the very latest pump technology. These pumps are suitable for use in hydroponic systems, ponds, aquariums, fountains and filter systems. The pumps are designed with “synchronous technology,”... -
Page 6: Submersible Applications
SUBMERSIBLE APPLICATIONS: This pump is designed to operate when completely submerged in water. CAUTION: Do not put plug and pump into water together. If plug drops into water, power supply should be turned off to avoid electric shock. Pump can be used indoors or outdoors. Supply cord cannot be changed or replaced. -
Page 7: Inline Applications
INLINE APPLICATIONS: This pump is designed to operate in a system without being submerged in water. CAUTION: This pump is not self-priming, which requires it to be filled with water and slightly lower than the water level in a reservoir, tank, pond or aquarium. If plug drops into water, power supply should be turned off to avoid electric shock. -
Page 8: Cleaning & Maintenance
Replacement Parts MODEL PART # DESCRIPTION Eco-3170 728336 EcoPlus Eco-3170 Replacement Shaft & Impeller Eco-4950 728486 EcoPlus Eco-4950 Replacement Shaft & Impeller 748494 EcoPlus Eco-3170/4950 Submersible Pump Replacement Impeller Cap for 728335/728485 For EcoPlus Eco-7400 parts please contact us at ecoplususa.com... -
Page 9: Pump Specifications
All pumps listed on the following pages can be used indoors or outdoors with freshwater only. Maxiumum operating water temperature is 86° F (30° C). Head capacities may vary depending on actual operating conditions. NOTE: All fitting sizes shown in diagrams are Outside Diameter (O.D.) Eco-3170 Product # Power Amps Watts... -
Page 10: Eco-4950
19.6 / 16.4 / 13.1 / 9.8 / 6.5 / 3.2 / 951 1268 1585 1902 2219 2536 2853 3170 3487 3804 4121 4438 4755 1200 2400 3600 4800 6000 7200 8400 9600 10800 12000 13200 14400 15600 16800 18000... -
Page 11: Eco-7400
" " " Outflow Adapter Head Capacities 27.6 / 19.6 / 16.4 / 13.1 / 9.8 / 6.5 / 3.2 / 1268 1902 2536 3170 3804 4438 5072 5706 6340 6974 2400 4800 7200 9600 12000 14400 16800 19200 21600... -
Page 12: Warranty Information
WARRANTY INFORMATION This product has a warranty of one year for any defects in materials or workmanship. Warranty is NOT VALID if the pump is not properly used, neglected, or there is a lack of maintenance or accidental damage either to the pump or to the impeller or impeller shaft. If the pump fails due to manufacturing fault within this warranty period, the pump will either be repaired or replaced free of charge.
