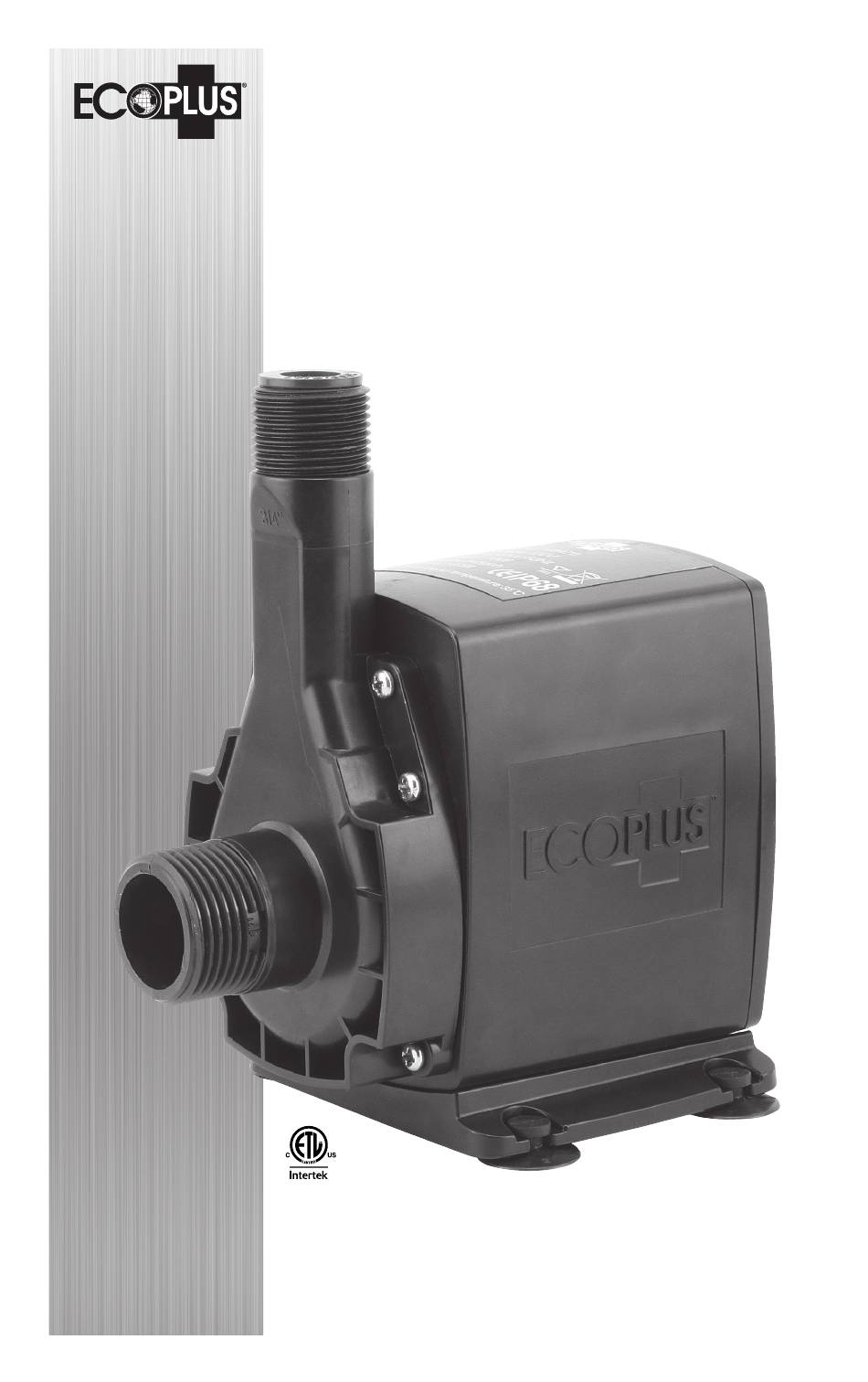

- Page 1 ECOPLUS MAG DRIVE UTILITY ® PUMP INSTRUCTIONS ™ 250 GPH • 350 GPH • 500 GPH 700 GPH • 900 GPH Before operating this appliance please read this instruction manual carefully and keep it stored in safe place for future reference.
-
Page 2: Important Safety Instructions
Safety Instructions: The following icons are used in the instruction manual: WARNING! How to avoid personal hazard DANGER! Avoid possible danger CAUTION! Describes procedures you should follow to avoid damage to the equipment or others. WARNING! Keep children away from this unit and do not let them play with the product. DO NOT operate unit if persons are in water. - Page 3 See illustration below. *Represents a Drip Loop and not an actual pump setup.* The following restrictions apply to the unit: • NEVER use this unit to pump fluids other than water • NEVER run this unit without water • DO NOT use for commercial or industrial purposes •...
- Page 4 • Pour out water from inside unit. Thoroughly clean and check unit for damage. Allow to thoroughly dry, before placing into storage. • Store unit in dry place and keep away from children. Product View and Specifications EcoPlus Mag Drive Utility Pump 250GPH - Fixed Flow Rate ® Part number: 748450...
- Page 5 EcoPlus Mag Drive Utility Pump 350GPH - Fixed Flow Rate ® Part number: 748455 Pump Specifications: Volts Power Height Max Current 120V 10 ft .57A Accessory Specifications: Part Description Thread Diameter Application 1. Screen & Foam Sediment Pre-Filter 3/4” inner Submersible 2.
-
Page 6: Accessory Specifications
External Inline 7. 3/4” Diameter Barbed Inflow Fitting 3/4” inner External Inline 8. 3/4” Diameter Garden Hose Thread Connector 1/2” inner External Inline EcoPlus Mag Drive Utility Pump 700GPH - Fixed Flow Rate ® Part number: 748465 Pump Specifications: Volts Power... - Page 7 EcoPlus Mag Drive Utility Pump 900GPH - Fixed Flow Rate ® Part number: 748470 Pump Specifications: Volts Power Height Max Current 120V 13 ft 1.38A Accessory Specifications: Part Description Thread Diameter Application 1. Screen & Foam Sediment Pre-Filter 1” inner Submersible 2.
- Page 8 Submersible Application Image #1: Using pump with the sediment and pre-filter with barbed outflow fitting. Submersible Application Image #2: Using pump with the bottom draw inflow fitting and barbed outflow fitting.
- Page 9 External In-line Application Allows pump to run outside of pond or reservoir without being submerged in water. CAUTION: Running pumps in-line requires the pump to be filled with water and slightly lower than the water level. The pump is not designed to support long tubing runs.
-
Page 10: Cleaning And Maintenance
Replacement parts for your pump are available for purchase online. Please visit our website at www.ecoplususa.com for more information. The following parts are available: Part # Description MSRP 748451 EcoPlus Mag Drive 250PGH Replacement Shaft and Impeller $17.99 ® 748456 EcoPlus Mag Drive 350PGH Replacement Shaft and Impeller $17.99... - Page 11 Replacement Part Installation Instructions...
- Page 12 www.EcoPlusUSA.com Exclusively distributed by: 20150120 © Sunlight Supply, Inc. 2015 ® www.sunlightsupply.com...
