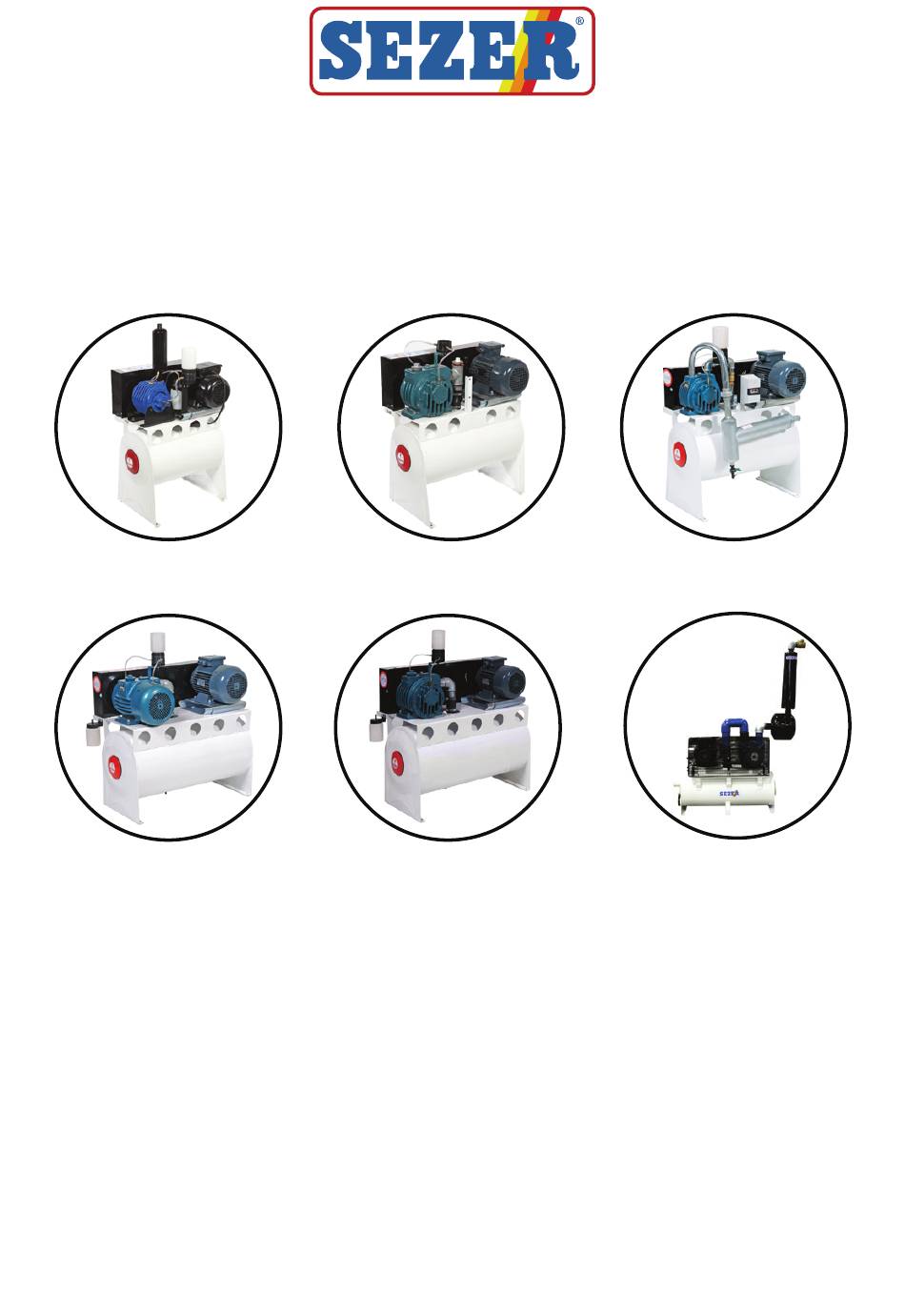

- Page 1 VACUUM PUMP WITH OIL (350-500-750-1000-1500-2000-3000) HOW TO DO ITS BOOK “ DO NOT OPERATE YOUR MACHINE BEFORE READING HOW TO DO IT BOOK” www.sezermac.com sezer@sezermac.com...
-
Page 2: Table Of Contents
CONTENTS Contents....................1 Descrip�on Of “ How To Do It” Book............When You Need To Li� Your Machine By Hand........3 Standards....................Technical Drawing................4-5-6 Main Parts Of The Machine..............7 Controlling Belt Pulley System..............8 Filling Oil To The Oil Container..............9 Find Breakdown Reasons..............10-11 Cau�on For Electric Connec�on............. -
Page 3: Descrip�On Of " How To Do It" Book
DESCRIPTION OF “ HOW TO DO IT” BOOK How to do it defini�on is one of the part of Sezer Tarım ve Sağım Teknolojileri San. Tic. Ltd. Ş�. and prepared. Main target of this book is providing to introduce to the user and operate according to the rules specified on this book. -
Page 4: When You Need To Li� Your Machine By Hand
INSTALLATION Oil vacuum pumps deliver as ready to install. However, installa�on will be done by authorized SEZER technician according to milking place condi�ons. CAUTION IMPORTANT Operate this machine with a grounded plug which assembled authorized electric technician. -
Page 5: Technical Drawing
Transfer / Minute (d/d) GROUP Pallet type and Dimensions < < Pulley diameter and Measure (mm) < Strap Measure (mm) 1,5KW Power (HP/KW) ELECTRİC Voltage (V) MOTOR Transfer / Minute (d/d) < < Pulley diameter and Measure (mm) SSYVP 350 Technical Drawing... - Page 6 Oil Type Pump Technical Specifa�on Length (mm) Width (mm) CHASİS Height (mm) Weight (mm) Chasis paint (mm) White sta�c dust paint White sta�c dust paint Tank capacity (lt) Flow Ra�o (lt) PUMP Transfer / Minute (d/d) Pallet type and Dimensions GROUP <...
- Page 7 Oil Type Pump Technical Specifa�on YVP-3000 Length (mm) 1150 CHASİS Width (mm) Height (mm) Weight (mm) Chasis paint (mm) White sta�c dust paint White sta�c dust paint White sta�c dust paint White sta�c dust paint Tank capacity (lt) Flow Ra�o (lt) 3200 PUMP 1500...
-
Page 8: Main Parts Of The Machine

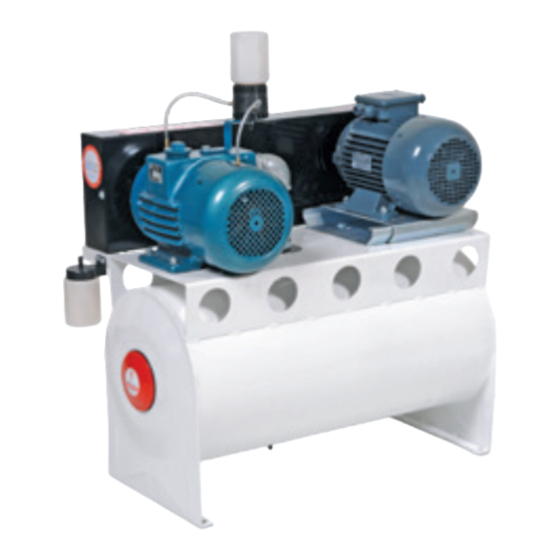

MAIN PARTS OF THE MACHINE VACUUM PUMP VACUUM TANK EXHAUST MAIN MACHINE... -
Page 9: Controlling Belt Pulley System
CONTROLLING BELT PULLEY SYSTEM FIGURE - 1 RIGHT FALSE RIGHT FALSE FIGURE - 2 Remove Belt-pulley security lid protec�on cover and check belt tension. Tension must me 15 mm maximum. Tight if loose. Do not �ghten belt extremely! Adjust pulleys as illustrated figure-2 Pulleys must be same planar direc�on. ATTANTION! Do not operate pump before fasten belt-pulley security lid protec�on cover. -
Page 10: Filling Oil To The Oil Container
FILLING OIL TO THE OIL CONTAINER •Remove oil collector. •Fill oil “No 30” up to conic sec�on on oil container. FIGURE - 1 Fill oil container lid if cleaned. •Check oil container gasket and change if out of order. •Replace its place carefully. IMPORTANT! Do not use used oil again and empty oil in oil collector. -
Page 11: Find Breakdown Reasons
FIND BREAKDOWN REASONS BREAKDOWN REASON DO IT Pump working -Belt loose, belt not may not clutch -Tighten lower speed. -Belt out of order -Change -Belt has oil par�cle -Clean -Belt/Belts beaten -Change -Electric motor speed too low. -Check Voltage -Pump wings beaten Lower Pump -Change Capacity... - Page 12 BREAKDOWN REASON DO IT Vacuum level -Chassis wedge may move from Set properly se�led posi�on do not rise se�led posi�on or take new one if lost Check hose connec�on, -Vacuum leak on milking group change adapter if it is broken Vacuum leak on adapter at the vacuum line -Restore vacuum leaks Lost vacuum flowing valve under vacuum tank...
-
Page 13: Cau�On For Electric Connec�On
CAUTION FOR ELECTRIC CONNECTION Do not operate your machine without grounded plug. Do not wash electric motor. Call authorized electrician if you have any breakdown (electric motor has special warranty for its producer) A well-match electric cable and plug has been used on your machine. Please call nearest service, authorized dealer and use same electric cable, plug if you have any breakdown on cable or plug. -
Page 14: Electrical Connec�On Diagram
1,5 KW - 1450 d/d 220 V - 50 Hz 2.2 KW -1450 d/d 380 V - 50 Hz 350 - 1.5 KW / 500 - 3 KW 750 - 3 KW / 1000 - 3 KW 1500 - 2000 = 4 KW / 3000 - 7,5 KW... - Page 15 Pallet Changing Instruc�on Remove the covers, number 1 and 2 as shown in picture Put the puller device on seal cover (number2).
- Page 16 Don’t move the puller and remove the cover with 17 wrench. You will see the pallets a�er you open the cover.
- Page 17 Pick the pallets out of places as shown in Picture. rub new pallets with emery before changing.
- Page 18 sanding, place the pallets as shown in Picture 4. place the covers and screw the bolts.
- Page 19 SERVICES INCLUDE DESKTOP SHOWS LIST IMPORTER/MANUFACTURER OF THE FIRM TITLE : SEZER Tarım ve Sağım Teknolojileri San. Tic. Ltd. Ş�. : Sırabademler Mah. Karacabey Bursa Karayolu Kümeevler No:14 ADDRESS Karacabey/Bursa/TURKEY PHONE : +90 224 671 80 04 (3 Line) FAX : +90 224 671 81 65...
- Page 20 Ministry according to the detected value with units-of-measure is covered by the warranty. Manufacturer/İhhalatçı Company Title : SEZER Tarım ve Sağım Teknolojileri San. Tic. Ltd. Ş�. Center Address : Sırabademler Mah. Karacabey Bursa Karayolu Kümeevler No:14 Karacabey/Bursa/Türkiye...
