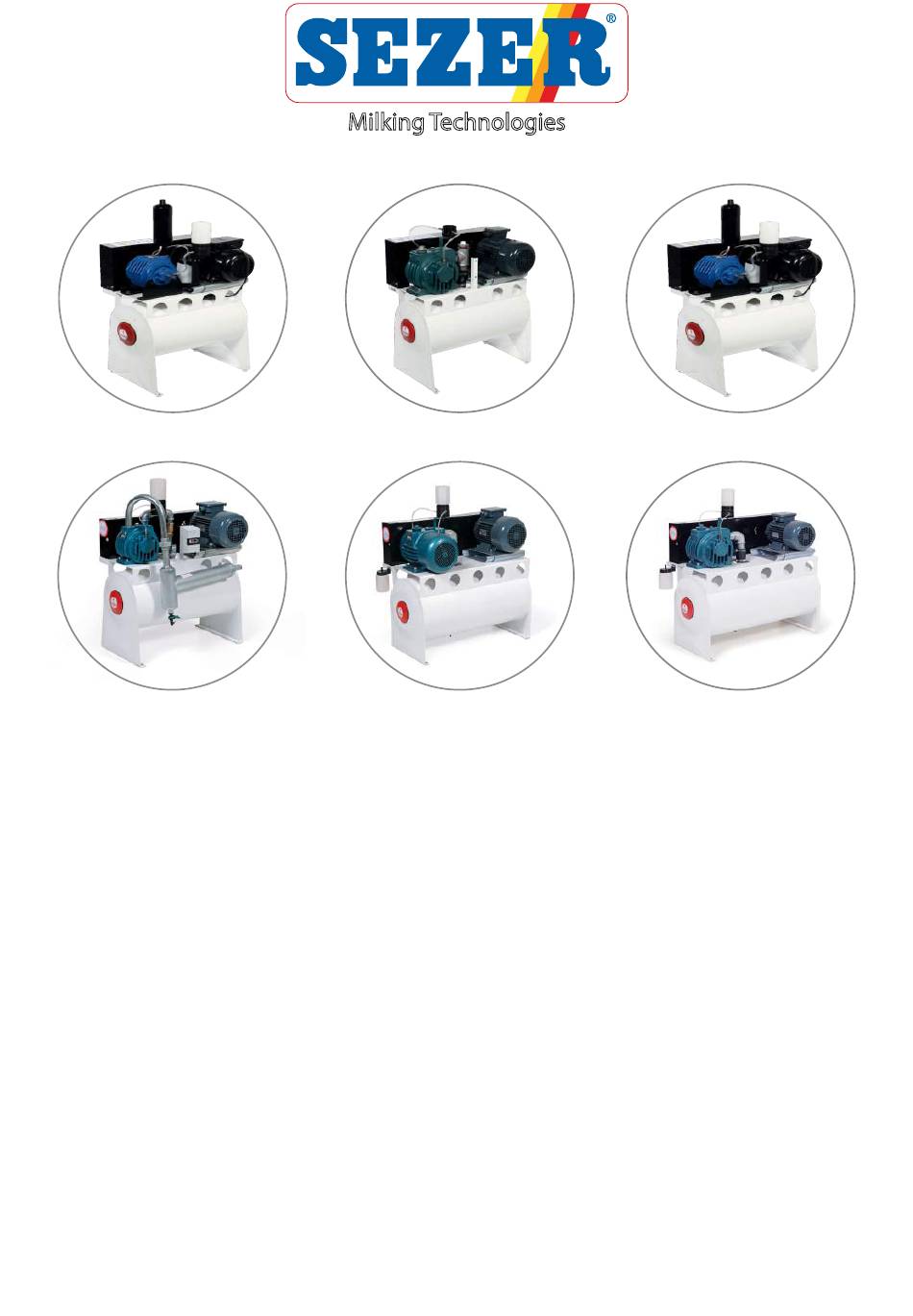

- Page 1 Milking Technologies YVP 350 - YVP 500 - YVP 750 YVP 1000 - YVP 1500 - YVP 2000 VACUUM PUMP WITH OIL HOW TO DO ITS BOOK ‘ DO NOT OPERATE YOUR MACHINE BEFORE READING HOW TO DO IT BOOK’...
- Page 2 DESCRIPTION OF “ HOW TO DO IT” BOOK How to do it definition is one of the part of Sezer Tarım ve Sağım Teknolojileri San. Tic. Ltd. Şti. and prepared. Main target of this book is providing to introduce to the user and operate according to the rules specified on this book. Due to these conditions, user has to save this book during machine life.
- Page 3 INSTALLATION Oil vacuum pumps deliver as ready to install. However, installation will be done by authorized SEZER technician according to milking place conditions CAUTION IMPORTANT Operate this machine with a grounded plug which assembled authorized electric technician.
- Page 4 SSYVP VACUUM PUMP COMPONENTS SSYVP 500 ELECTRIC ENGINE OIL CONTAINER BELT-PULLEY SECURITY LID VACUUM PUMP SWITCH EXHAUST VACUUM TANK CHASSIS SSYVP 1500 OIL CONTAINER BELT-PULLEY SECURITY LID ELECTRIC ENGINE VACUUM PUMP VACUUM TANK CHASSIS Page:4/16...
- Page 5 TECHNICAL SIZES YVP - 350 YVP - 500 YVP - 750 YVP - 1000 YVP - 1500 YVP - 2000 LENGTH (mm) WIDTH (mm) HEIGHT (mm) WEIGHT (kg) Static White Static White Static White Static White Static White Static White CHASSIS PAINT Powder Paint Powder Paint...
-
Page 6: Vacuum Pump
Palette: Fiber Produced sheet iron and covered Cadm ium against corrosion. Has 30 liter volume for YVP 350 and 40 liter volume for YVP 500, YVP 750 and 50 liter volume for YVP 1000, YVP 1500 and YVP 2000 EXHAUST... - Page 7 REGULATOR: Provide vacuum stability. Turn the bolt nut to clockwise for more vacuum and turn the bolt nut to reverse clockwise for fewer vacuums. HYGIENE BEFORE MILKING Milking area and milking equipment should be as much as clean and hygienic before milking.
- Page 8 …IF MILKING BUCKET OR VEHICLE USE Action figure of rubber liner must be same as figure-5 while machine and pulsators working. MILKING DURATION Milking duration may change according to cow to cow and takes 47 minute’s average. Finish of milking process may observe on milk claws or transparent milk hoses.
- Page 9 CONTROLING BELTPULLEY SYSTEM FIGURE - 2 Remove Belt-pulley security lid protection cover and check belt tension. Tension must me 15 mm maximum. Tight if loose. Do not tighten belt extremely! Adjust pulleys as illustrated figure-2 Pulleys must be same planar direction. ATTANTION! Do not operate pump before fasten belt-pulley security lid protection cover.
- Page 10 FILLING OIL TO THE OIL CONTAINER Remove oil collector. Fill oil “No 30” up to conic section on oil container. Fill oil container lid if cleaned. Check oil container gasket and change if out of order. Replace its place carefully. IMPORTANT! Do not use used oil again and empty oil in oil collector.
- Page 11 FIND BREAKDOWN REASONS BREAKDOWN REASON DO IT Pump working -Belt loose, belt not may not clutch -Tighten lower speed. -Belt out of order -Change -Belt has oil particle -Clean -Belt/Belts beaten -Change -Electric motor speed too low. -Check Voltage Lower Pump -Pump wings beaten -Change Capacity...
- Page 12 WARNINGS BREAKDOWN REASON DO IT Vacuum level do Chassis wedge may move from settled Set properly settled not rise position position or take new one if lost Vacuum leak on milking group Check hose Vacuum leak on adapter at the vacuum line connection, change adapter if it is Lost vacuum flowing valve under vacuum...
- Page 13 Check rubber parts frequently, change beaten ones Do not strike milk bucket, do not clean inside bucket with hard cleaning object. Clean painted chassis parts with cloth or sponge. Do not use hard and abrasive objects. Use original Sezer Brand spare parts. Page:13/16...
- Page 14 If motor spinning direction is not correct, change two of three cables (three phase cables) place on plug (Do not change ground cable place!) SEZER MILKING MACHINES Sırabademler Mah. Kümeevler No:14 Karacabey-Bursa Karayolu Karacabey/Bursa/Türkiye Tel:+90 224 671 80 04 Fax:+90 224 671 81 65 E-Mail:sezer@sezermac.com Web: http://www.sezermac.com...
- Page 15 Page:15/16...
-
Page 16: Warranty Certificate
Ministry according to the detected value with units-of-measure is covered by the warranty. Manufacturer / Company Title : SEZER Tarım ve Sağım Teknolojileri San. Tic. Ltd. Şti. Center Address : Sırabademler Mah. Karacabey Bursa Karayolu Kümeevler No:14 Karacabey/Bursa/Türkiye...
