FERRI MT200 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
MT Owner’s Manual
Owner's Manual
MT Shredder
Maintenance & Use

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT200 and is the answer not in the manual?

Questions and answers

Related Manuals for FERRI MT200

Summary of Contents for FERRI MT200

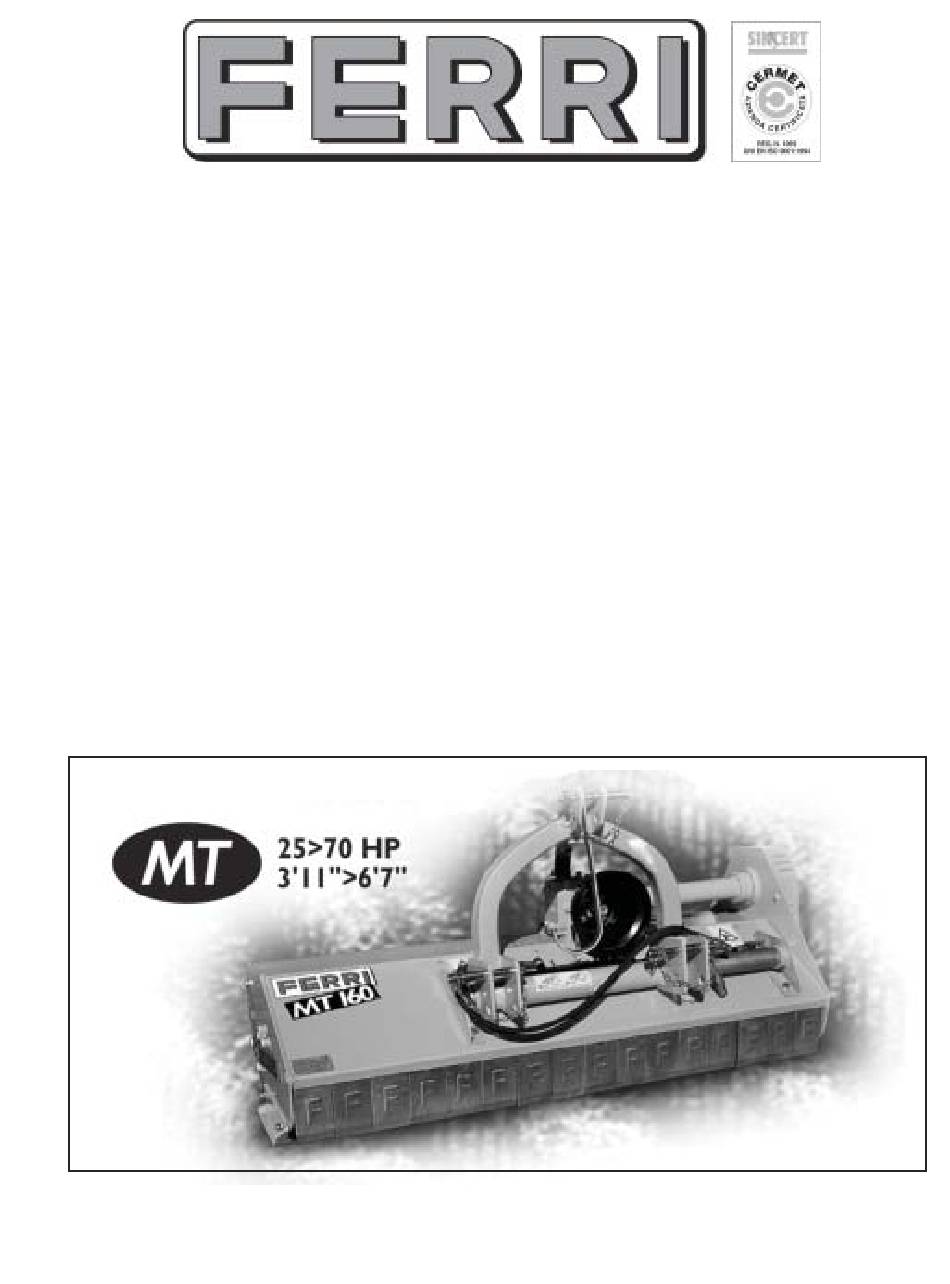

  • Page 1 MT Owner’s Manual Owner’s Manual MT Shredder Maintenance & Use...
  • Page 2 MT Owner’s Manual...
  • Page 3 MT Owner’s Manual CONTENTS GENERAL INFORMATION section 1 page • Introduction - Goal of the manual section 1.1 page • Identifying the machine section 1.2 page • Spare parts section 1.3 page TECHNICAL FEATURES section 2 page • General Description of the Shredder section 2.1 page •...
  • Page 4 Figure 1 It is required to replace all parts with genuine FERRI parts. The use of parts other than genuine FERRI parts will alter the technical features of the shredder and FERRI is not responsible for any damage or injuries to persons due to unauthorized...
  • Page 5 1.2” in diameter. (proper use). Any other use is considered improper and FERRI disclaims all responsibility for any consequential injuries to persons or damage to the shredder (Fig. 2).
  • Page 6 MT Owner’s Manual Technical Specifications (See Table 1) Table 1 Model MT120 MT140 MT160 MT180 MT200 Width of cut 3’11” 4’7” 5’3” 5’11” 6’7” Tractor required power 25 – 30 30 - 45 35 - 50 45 - 60 50 - 70 PTO speed (rear &...
  • Page 7 MT Owner’s Manual VERSIONS OF THE MACHINE 2.5.1 Rear Version REAR VERSION Figure 3 2.5.2 Front & Reverse Version FRONT VERSION REVERSE VERSION Figure 4 Figure 5 IMPORTANT: Always check that the number of revolutions and the rotational direction of the tractor power take-off corresponds to those shown on the shredder.
  • Page 8 MT Owner’s Manual OPTIONAL EQUIPMENT 2.6.1 Depending on the different crops to be cut, the rotor can be changed and suit- able flails can be fitted and used: 2.6.2 The shredders can be provided with toolholder rakes to collect prunings. Figure 6 Model MT120...
  • Page 9 MT Owner’s Manual 2.6.4 Slides Figure 8 2.6.5 Kit For Mobile Linkage Rear mobile linkage Figure 9 Front and reverse mobile linkage Figure 10 Figure 5...
  • Page 10 MT Owner’s Manual Ram for hydraulic linkage Rod for manual mobile linkage...
  • Page 11 MT Owner’s Manual GENERAL SAFETY RULES General Safety Rules: • It is mandatory to read and follow the instructions from the use and maintenance manual before carrying out any operation or moving the shredder. Improper use or moving it improperly may seriously damage property and harm people. •...
  • Page 12 MT Owner’s Manual Safety Rules Concerning the Hydraulic System: This shredder uses a hydraulic circuit to operate the shifting of the 3 point • linkage; the pressure of such system must not exceed 170 BAR. Label the different pipes to avoid reversal of operation. •...
  • Page 13 MT Owner’s Manual Description and Location of Safety Decals (Figure 14) Carefully follow the instructions given on the decals. Figure 14 Description of the Decals 1. Danger sign for rotating flails; keep hands and feet away from the unit. 2. Danger sign; it shows the risk of flying stones or other objects and makes it mandatory to keep out of the danger zone.
  • Page 14 MT Owner’s Manual INSTRUCTIONS FOR INSTALLATION AND HANDLING Lifting and Unloading: To handle the shredder, use a hoist or a crane with lifting capability suitable to the weight of the machine (See Table 1) and with proper chains and type approved hooks to be fixed in the marked points, as shown in Figure 15.
  • Page 15 MT Owner’s Manual 4.2.2 The slot for the pin of the top link allows the shredder to follow any small depressions on the ground. In case of particularly uneven fields or steep slopes, it is advisable to replace the fixed top link with a chain (See Figure 17). Figure 17 4.2.3 Completely lift the shredder and check that the tractor is stable.
  • Page 16 MT Owner’s Manual 4.3.2 The guards of the PTO shaft must be fixed to the shredder and to the tractor with chains to prevent rotation. 4.3.3 The minimum overlap of the guard and the PTO shaft must Figure 21 be at least 2 in. (Figure 13).
  • Page 17 MT Owner’s Manual 4.4.2 Assembling the wheels (Figure 24): (only for rear version machines) Before assembling the wheels, the roller must be disassembled. Attach the wheel holders (1) to the sides of the shredder using the screws (2). Insert the wheel and the arm into the holder, attach with a pin (3) and secure them with the spring clips (4).
  • Page 18 MT Owner’s Manual 4.4.3 Assembling the slides (Figure 27): Lift the shredder with the help of the tractor lifter, insert the slides (1) and fix them with screws (2). The slides can be assembled in two different positions, thus allowing to adjust the height of cut.
  • Page 19 MT Owner’s Manual Assembling the mobile linkage (front and reverse version, Figure 29). • Fix the holder to the frame (1) with screws (2), assemble the 3 point linkage (3) to the holder with the tube (4) and fix it with screws (5). Assemble the holder (6) with the tie rod (8) and fix with screws (9).
  • Page 20 MT Owner’s Manual Assembling the ram for the mobile hydraulic linkage (Figure 31) Assemble the holder (1) to the square (2) and fix with the bolt (3); assemble the ram (4) on the pin (5) and fix with the spring clip (6), fix the fork (7) to the holder (1) with a pin (8).
  • Page 21 MT Owner’s Manual ADJUSTMENT AND SETTING UP Adjusting the height of cut: Keep the shredder in a horizontal position. Flails must never touch the ground. The optimum distance from flail to ground is 1.2 in. (Figure 32) Figure 32 Adjusting belt tension This operation must be carried out with the shredder standing on the ground, the power takeoff disconnected and the starting key removed.
  • Page 22 MT Owner’s Manual Adjusting the roller and the rear bonnet: When shredding twigs and shrubs, place the roller (1) in backward position and close the rear bonnet (2) as shown in (Figure 34). When shredding grass, place the roller (1) in the position B sin order to discharge shredded material beyond the roller (Figure 35).
  • Page 23 MT Owner’s Manual USE AND OPERATING RULES Starting: Before using the shredder, check the tightness of all bolts and the integrity of all guards. Check that the number of revolutions and the rotational direction of the power takeoff of the tractor correspond to those required by the shredder, see decal on the gearbox (Figure 37).
  • Page 24 MT Owner’s Manual MACHINE MAINTENANCE All maintenance, cleaning and repair operations must be carried out with the shredder firmly lowered to the ground and detached from the tractor, or with the PTO disconnected, engine off and starting key out. After the first 2 hours’ operation from new (or Figure 40 after fitting new belts), check belt tension regularly, every 10 -15 hours operation:...
  • Page 25 MT Owner’s Manual 8. TROUBLE SHOOTING CHART PROBLEM CAUSE Irregular cut • Worn, bent or broken • Replace Rails • Level it by adjusting the • Machine is not level wheels or the tractor lift with the ground Irregular spread of the •...
  • Page 26 MT Owner’s Manual REPLACING PARTS Before carrying out any work, it is mandatory to: • Lower the shredder to the ground • Disconnect the power takeoff, stop the tractor and take out the starting key. • Wear working gloves. Figure 43 Flail replacement: When the flails are worn, they must all be replaced.
